| Part number | KRV32PPANMT | |
|---|---|---|
| EAN | 4054362448488 | |
| Unit | Each | |

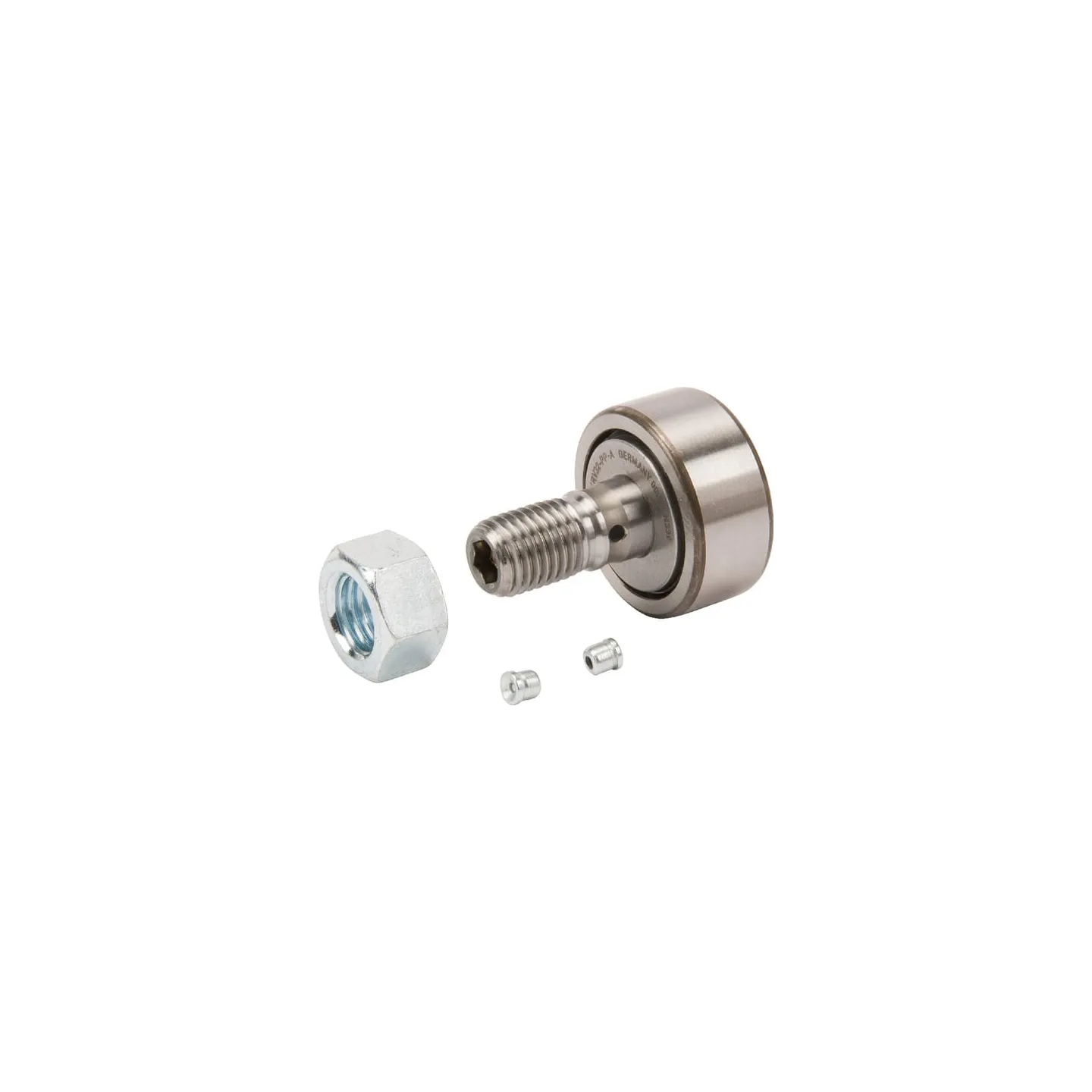

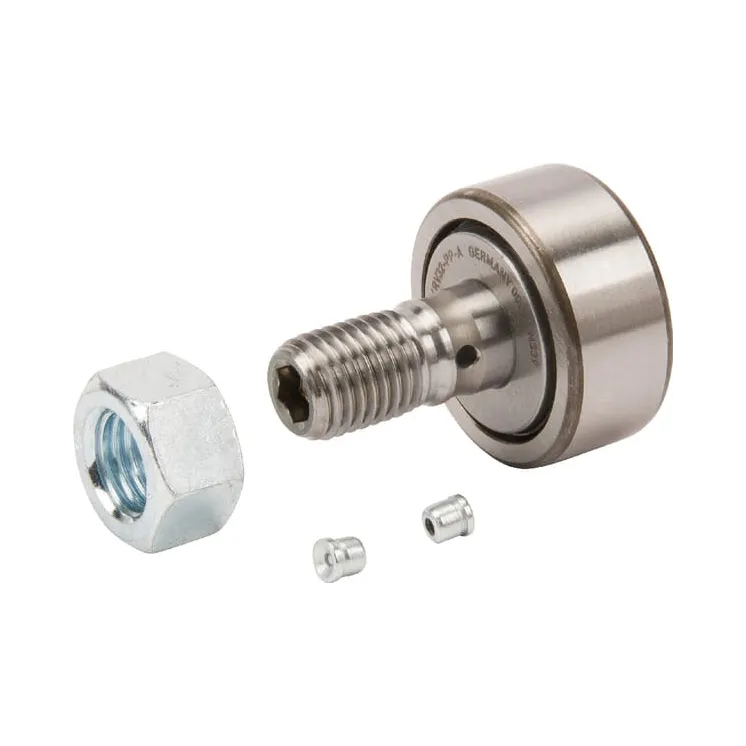

| Long description | Track rollers SKF, series KRV .. PP | |
| Details | Three-stage seal with axially moving plastic rings on both sides of the track roller bearing | |
| Application range |
| |
| Properties |
| |
| Technical info |
| |
| Inside diameter | 12 mm | |
| DOutside diameter | 32 mm | |
| CWidth | 14 mm | |
| Sealing | 2RS | |
| Bearing model type | Track rollers | |
| Basic radial load static | 16300 N | |
| Basic radial load dynamic | 10000 N | |
| Rows number | 1 | |
| Outer ring width | 14 mm | |
| d1Shaft diameter | 12 mm | |
| B1Shaft length | 25 mm | |
| G1Mounting thread length | 13 mm | |
| GMounting thread diameter | M12 | |
| Max working temperature | 100 °C | |
| Min working temperature | -30 °C | |
| Regreasable | Yes | |
| Weight | 0.111 kg | |
| Original number equivalent | KRV32-PP-A-NMT | |
| BTotal length | 40 mm | |
| Mounting thread pitch | 1.50 mm |
