Stud tipa kāpurķēžu veltnis KRV26PPA INA/FAG
search
  • Stud tipa kāpurķēžu veltnis KRV26PPA INA/FAG

Stud tipa kāpurķēžu veltnis KRV26PPA

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
68,62 €
AR PVN
4-5 Darba dienas
Stud tipa kāpurķēžu veltnis KRV26PPA INA/FAG
IR NOLIKTAVĀ

64497

  • Zīmols
    INA/FAG
  • Norāde
    KRV26PPA
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • EAN
    4012802428339
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
KRV26PPA
EAN4012802428339
Unit
Each
Long description

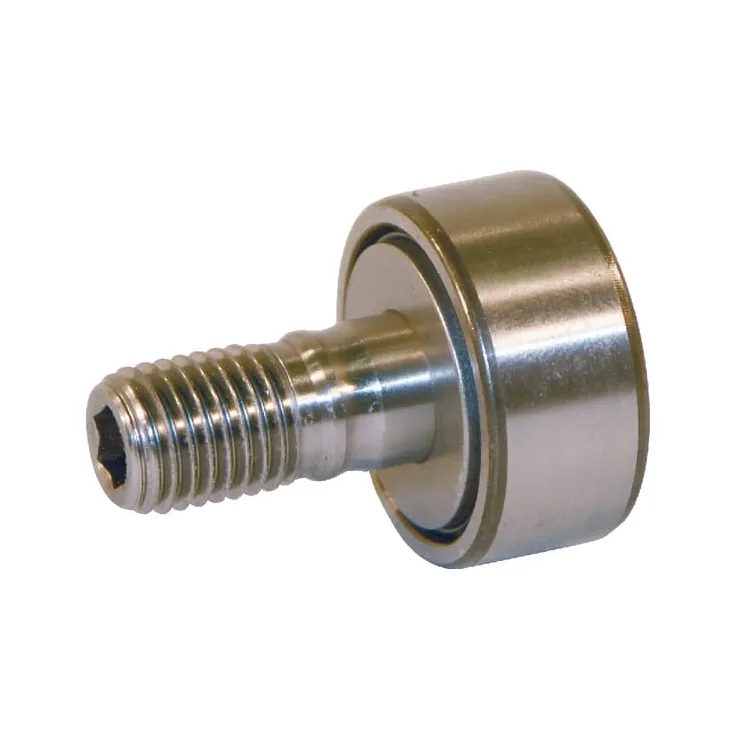

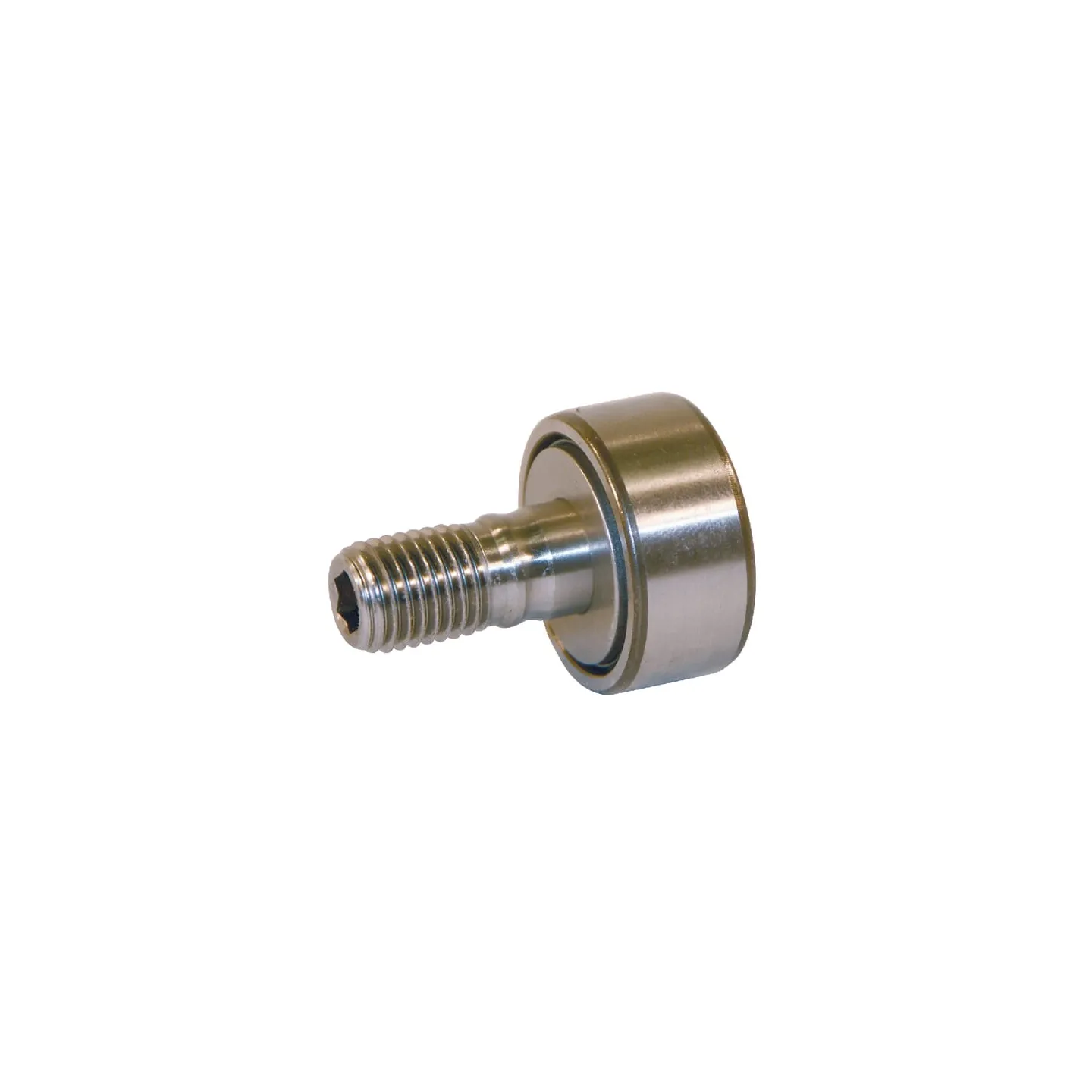

Track rollers SKF, series KRV .. PP
Details
Three-stage seal with axially moving plastic rings on both sides of the track roller bearing
Application range
  • Packaging machines
  • Transport systems
  • Roll-up doors
  • Roller tensioners
Properties
  • Thick-walled outer ring with profiled lateral surface
  • Solid inner part with journal
  • Fitted with thread
  • Driving disc
  • Single or two-row sets of cylinder rollers or needles
Technical info
  • Outer ring of lateral surface is annular (R500)
  • Temperature range: -30°C to +140°C
  • Cage is full complement
  • With axial guidance via driving disc
Inside diameter
10 mm
DOutside diameter
26 mm
CWidth
12 mm
Sealing
2RS
Bearing model type
Stud type track rollers
Basic radial load static
11600 N
Basic radial load dynamic
7300 N
Rows number
1
Outer ring width
12 mm
d1Shaft diameter
10 mm
B1Shaft length
23 mm
G1Mounting thread length
12 mm
GMounting thread diameter
M10
Max working temperature
100 °C
Min working temperature
-30 °C
Regreasable
Yes
Weight
0.05592 kg
Original number equivalent
KRV26-PP-A
BTotal length
36 mm
Mounting thread pitch
1.00 mm
