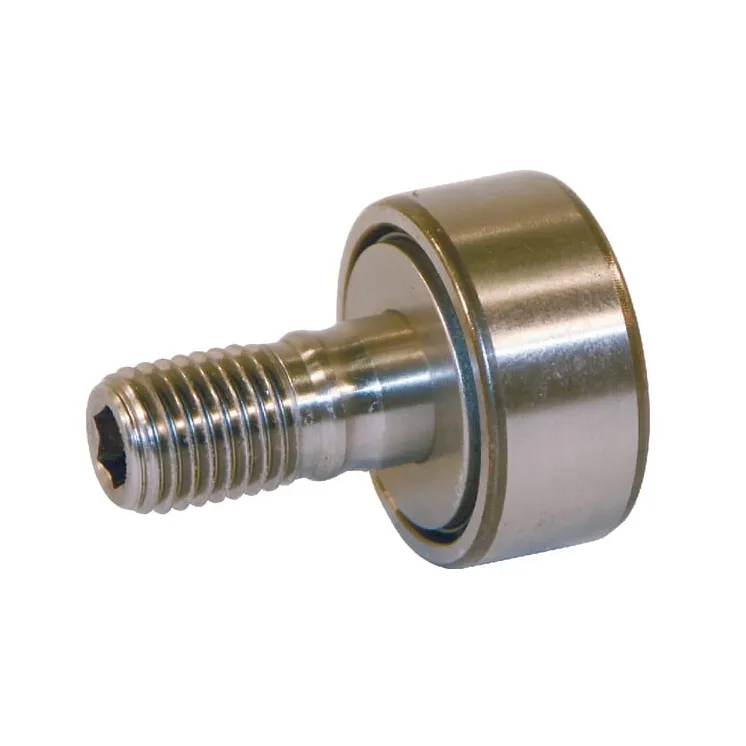

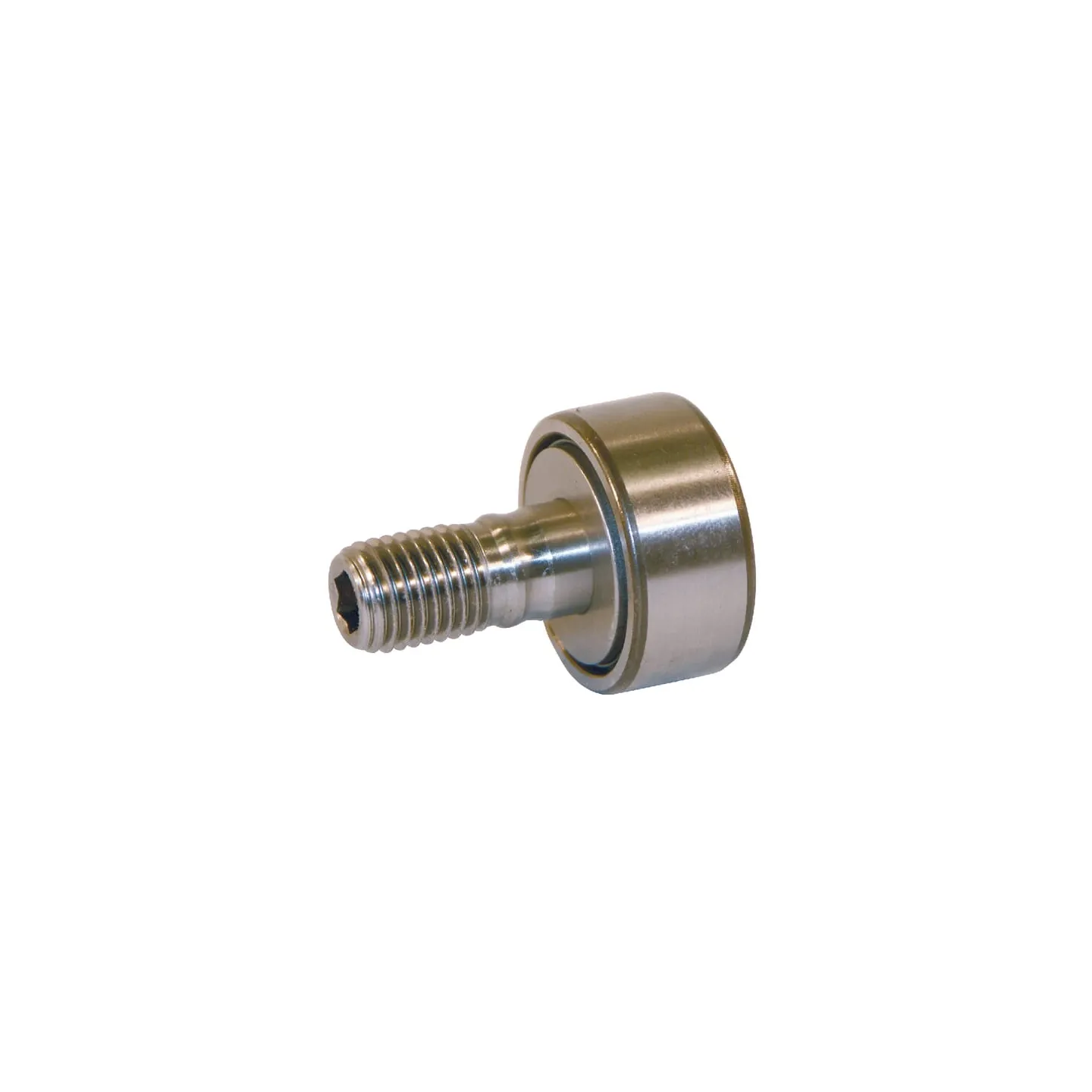

Kāpurķēžu veltnis KRV32XPPA

Name: Kāpurķēžu veltnis KRV32XPPA
Brand: INA/FAG
SKU: KRV32XPPA
Price: 70.8 EUR
Availability: InStock

Apmaksas iespējas

70,80 €

AR PVN

4-5 Darba dienas

Kāpurķēžu veltnis KRV32XPPA INA/FAG

IR NOLIKTAVĀ

ID: 64499

Apraksts

Part number	KRV32XPPA
EAN	4012802427899
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series KRV .. PPX
Details	Sealed on both sides by axially movable three-level plastic seal Thick-walled outer ring
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Solid shaft with guide bore With axial guidance via driving discs Cage is full complement NMT add-on: equipped with a nut
Benefits	Reduces friction and grease use Can absorb high radial loads
Inside diameter	12 mm
DOutside diameter	32 mm
Bearing model type	Track rollers
Basic radial load static	16300 N
Basic radial load dynamic	10000 N
d1Shaft diameter	12 mm
Original number equivalent	KRV32-X-PP-A
BTotal length	40 mm
