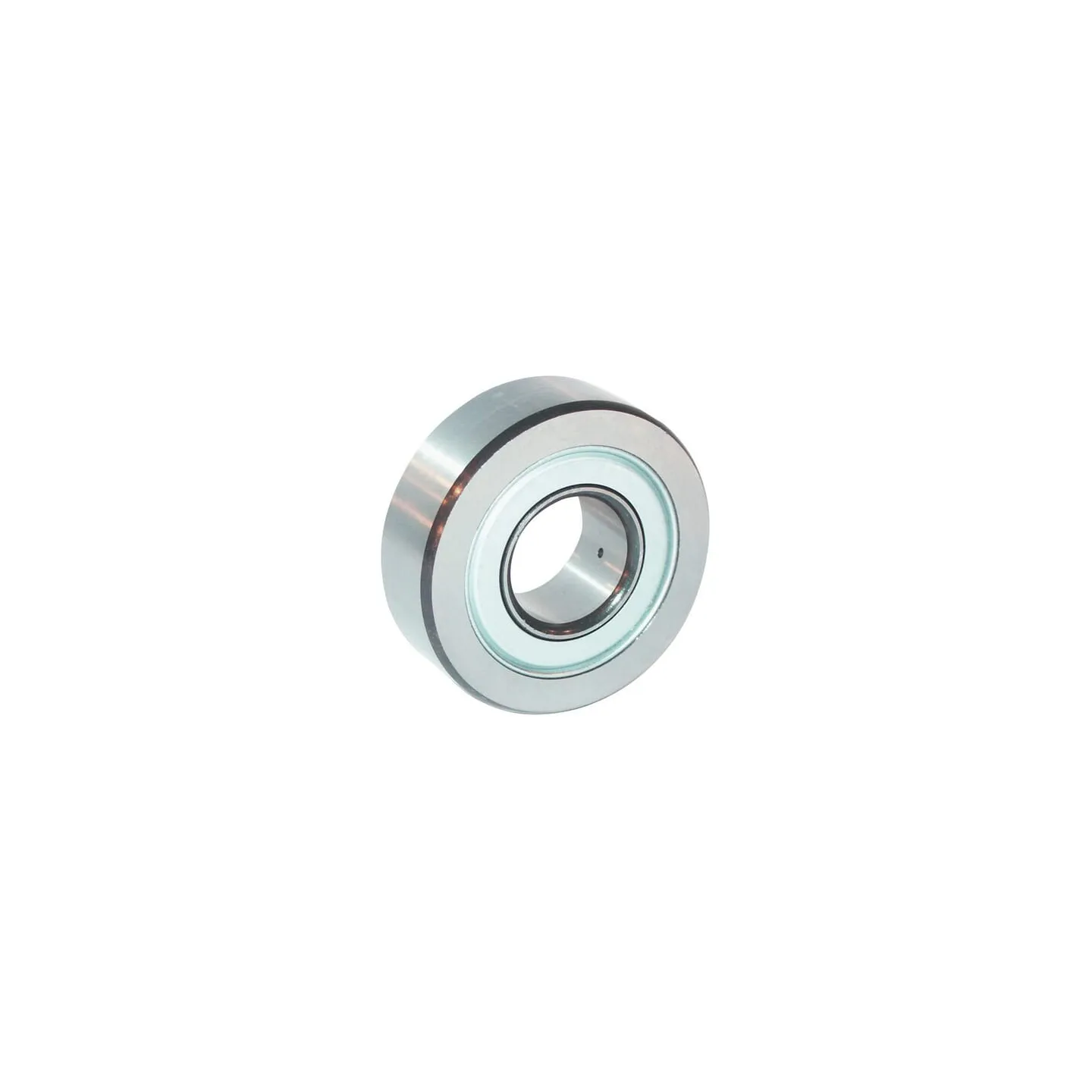

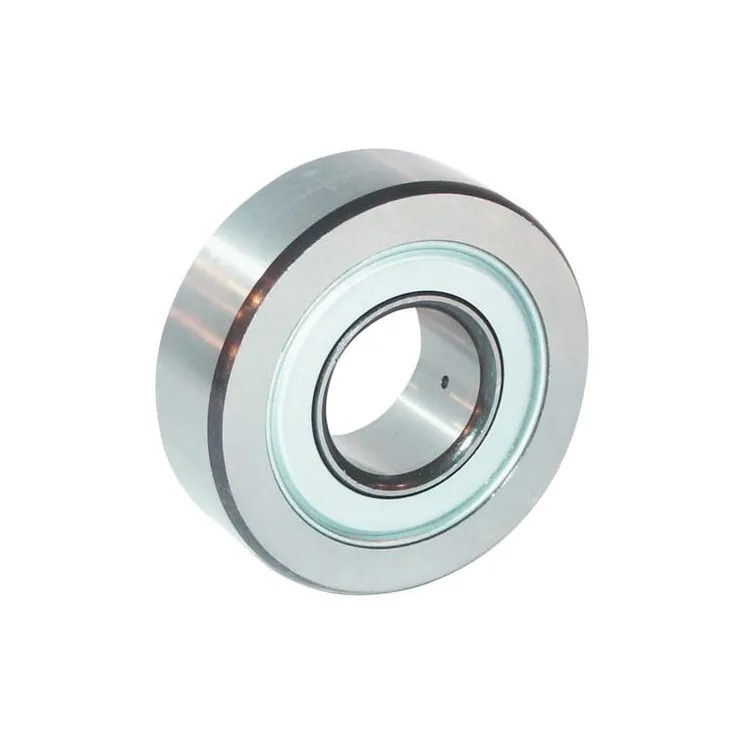

Kāpurķēžu rullīšu gultnis LR52072Z INA/FAG LR5207KDDU

Uz pasūtījumu

ID: 64523

Apraksts

Part number	LR52072Z
EAN	4054369197747
Unit	Each
Details	Lip seal on both sides Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Two-row layout Polyamide housing
Benefits	Maintenance-free Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	35 mm
DOutside diameter	80 mm
BWidth	27 mm
Sealing	ZZ
Bearing model type	Track rollers
Basic radial load static	26500 N
Basic radial load dynamic	33000 N
Rows number	2
Outer ring width	27 mm
Outer ring shape	Spherical
Max working temperature	120 °C
Min working temperature	-20 °C
Regreasable	No
Weight	0.66 kg
Original number equivalent	LR5207-2Z-TVH-XL
