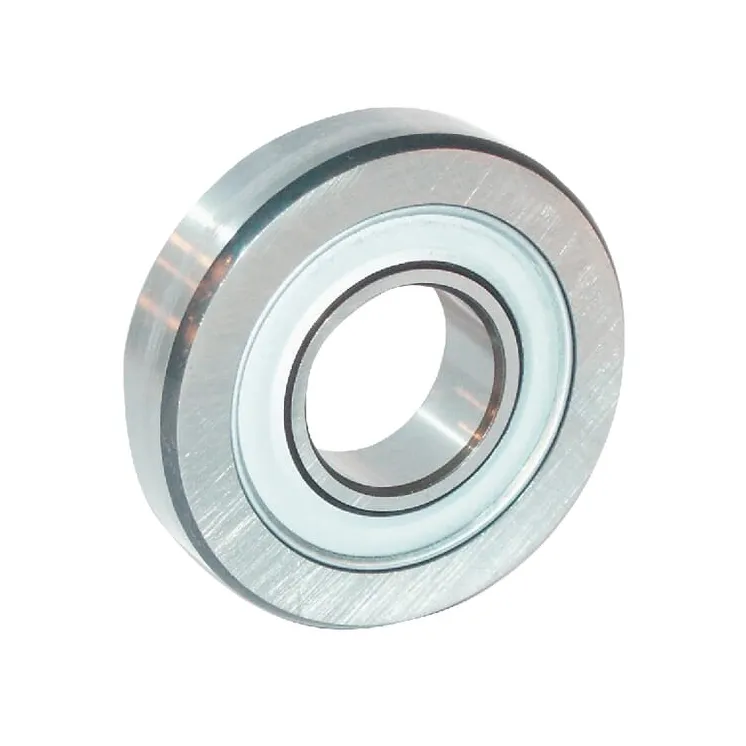

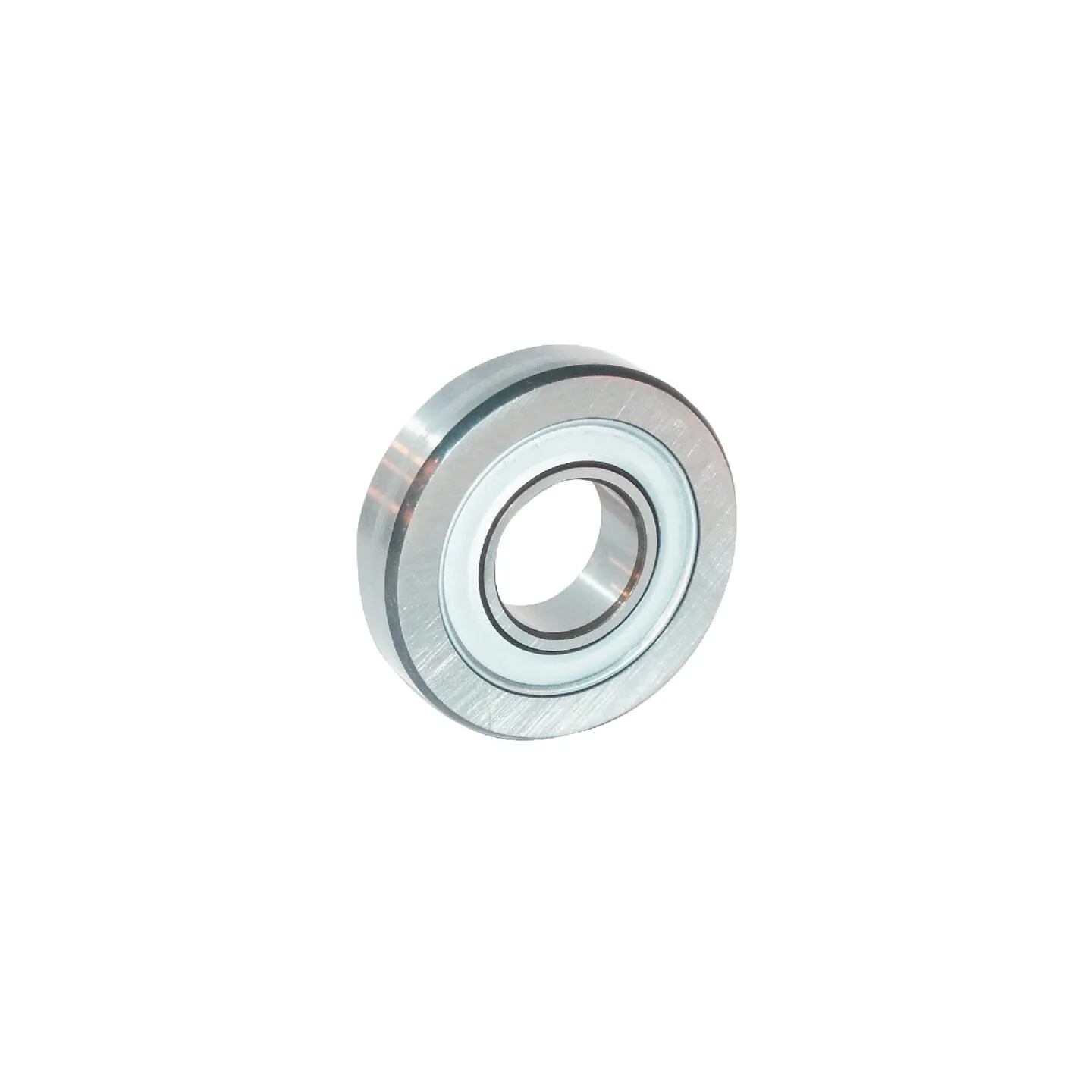

Kāpurķēžu rullīšu gultnis LR2012RSR LR201NPPU

Name: Kāpurķēžu rullīšu gultnis LR2012RSR LR201NPPU
Brand: INA/FAG
SKU: LR2012RSR
Price: 21.94 EUR
Availability: BackOrder

Apmaksas iespējas

21,94 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis LR2012RSR INA/FAG LR201NPPU

Uz pasūtījumu

ID: 64535

Apraksts

Part number	LR2012RSR
EAN	4012802826821
Unit	Each
Details	Lip seal on both sides Thick-walled outer ring Track is slightly ball-shaped, R= 500 mm
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Single-row layout Polyamide housing
Benefits	Maintenance-free Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	12 mm
DOutside diameter	35 mm
BWidth	10 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	2850 N
Basic radial load dynamic	6000 N
Shaft diameter	12 mm
Max working temperature	120 °C
Min working temperature	-20 °C
Original number equivalent	LR201-2RSR
