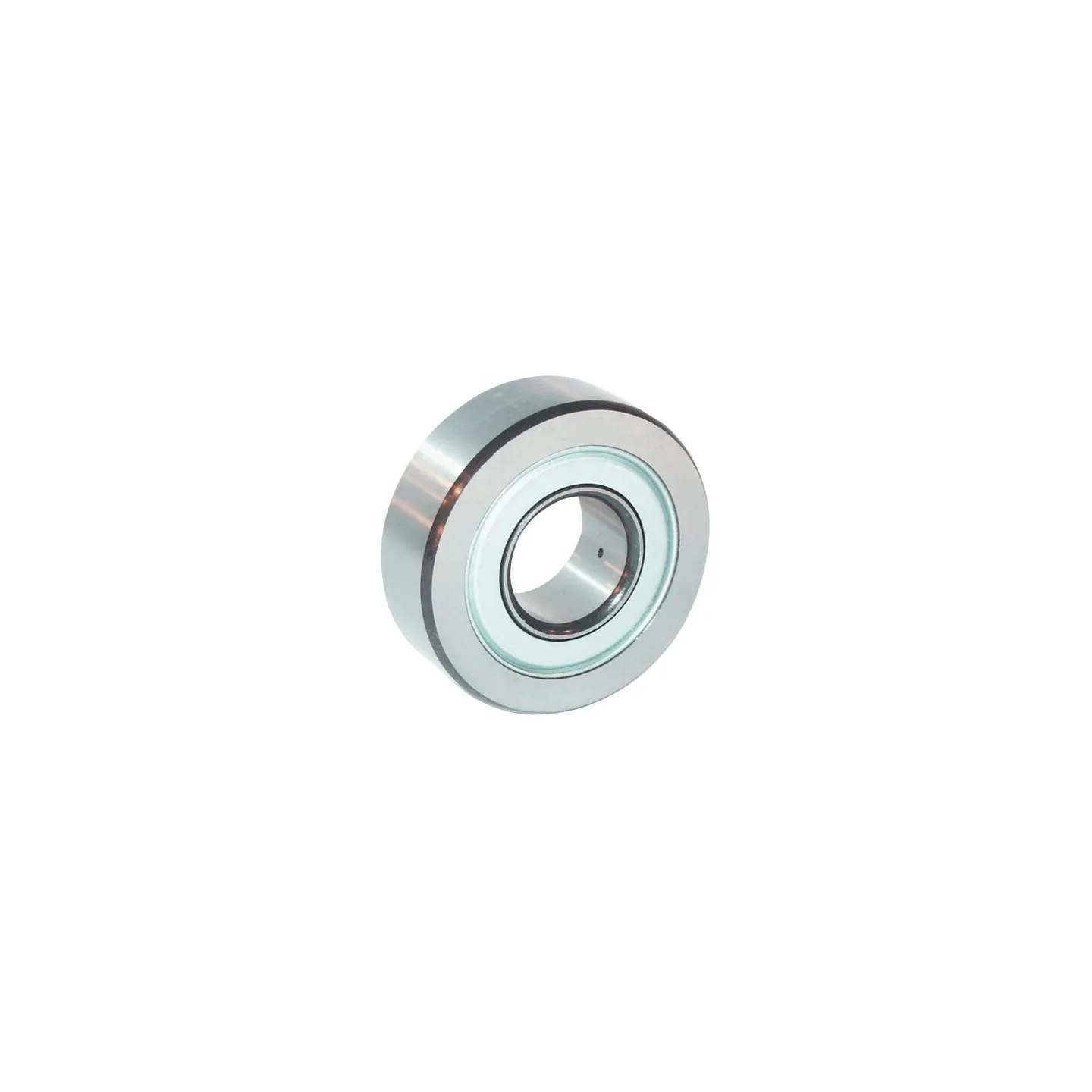

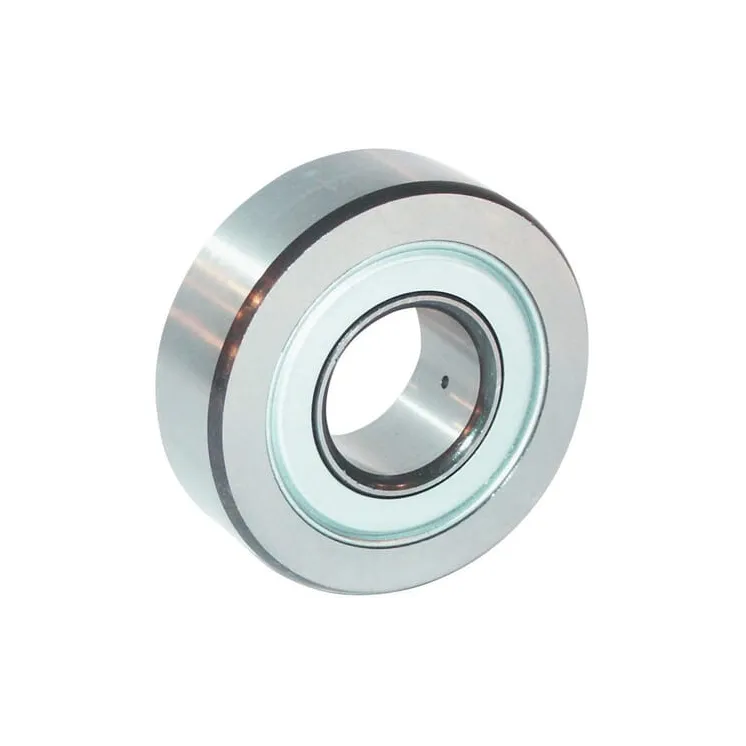

Kāpurķēžu rullīšu gultnis LR5204X2Z

Name: Kāpurķēžu rullīšu gultnis LR5204X2Z
Brand: INA/FAG
SKU: LR5204X2Z
Price: 65.52 EUR
Availability: InStock

Apmaksas iespējas

65,52 €

AR PVN

4-5 Darba dienas

Kāpurķēžu rullīšu gultnis LR5204X2Z INA/FAG

IR NOLIKTAVĀ

ID: 64545

Apraksts

Part number	LR5204X2Z
EAN	4054364920050
Unit	Each
Details	Lip seal on both sides Thick-walled outer ring
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Two-row layout Polyamide housing Running surface is cylindrical
Benefits	Maintenance-free Can absorb high radial loads
dInside diameter	20 mm
DOutside diameter	52 mm
CWidth	20 mm
Sealing	ZZ
Bearing model type	Track rollers
Basic radial load static	12700 N
Basic radial load dynamic	16900 N
Rows number	2
Outer ring shape	Cylindrical
Max working temperature	120 °C
Min working temperature	-20 °C
Regreasable	Yes
Weight	0.23 kg
Original number equivalent	LR5204-X-2Z
