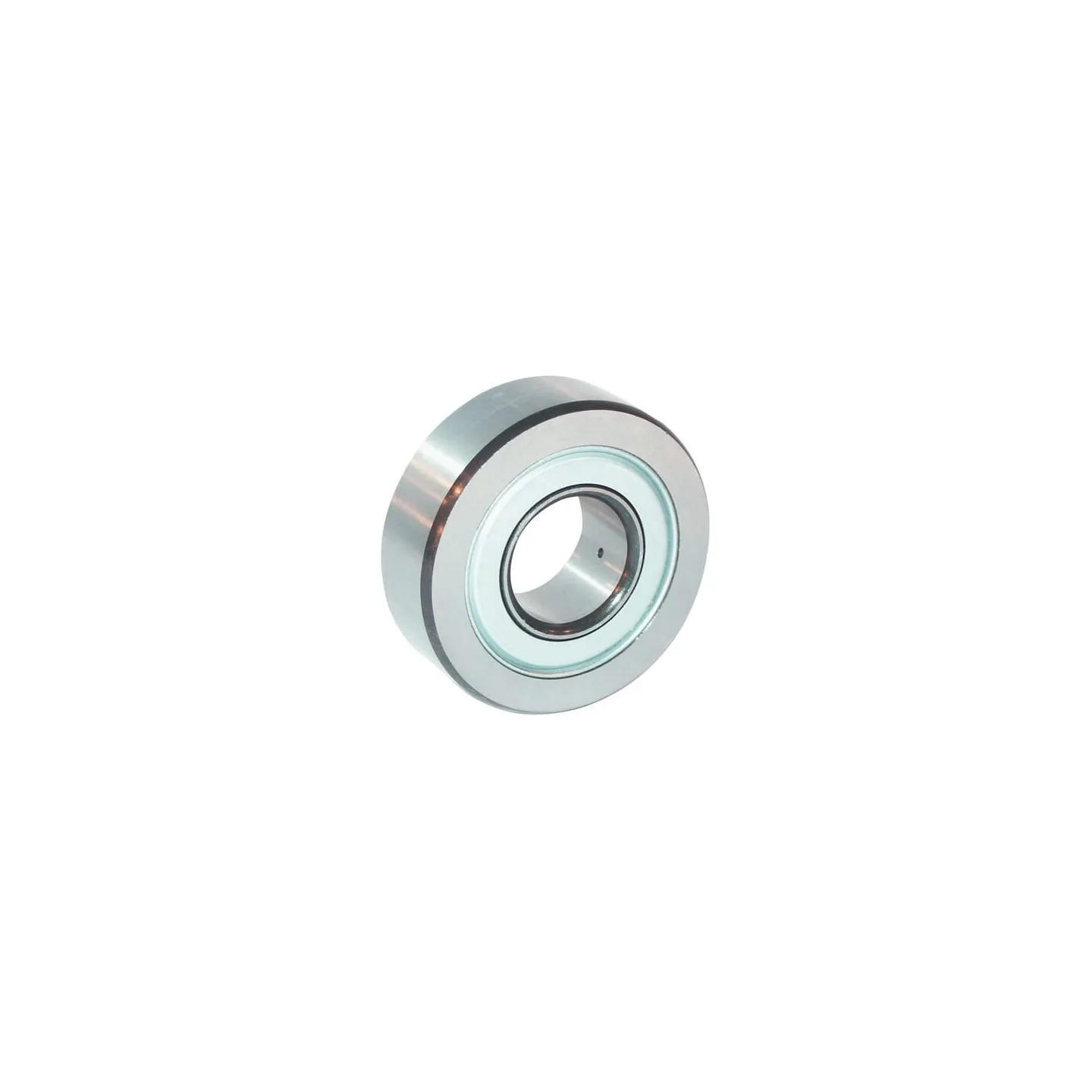

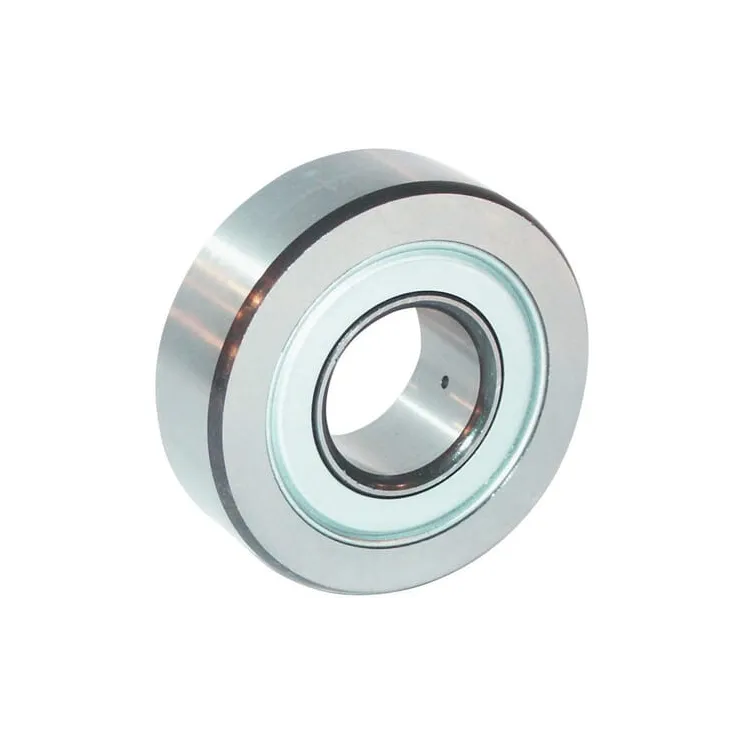

Kāpurķēžu rullīšu gultnis LR52042Z LR5204KDDU

Name: Kāpurķēžu rullīšu gultnis LR52042Z LR5204KDDU
Brand: INA/FAG
SKU: LR52042Z
Price: 59.69 EUR
Availability: InStock

Apmaksas iespējas

59,69 €

AR PVN

4-5 Darba dienas

Kāpurķēžu rullīšu gultnis LR52042Z INA/FAG LR5204KDDU

IR NOLIKTAVĀ

ID: 64563

Apraksts

Part number	LR52042Z
EAN	4054364905668
Unit	Each
Details	Lip seal on both sides Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Two-row layout Polyamide housing
Benefits	Maintenance-free Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	20 mm
DOutside diameter	52 mm
CWidth	20.6 mm
Sealing	ZZ
Bearing model type	Track rollers
Basic radial load static	12300 N
Basic radial load dynamic	16900 N
Rows number	2
Outer ring width	20.6 mm
Outer ring shape	Spherical
Max working temperature	120 °C
Min working temperature	-20 °C
Regreasable	No
Weight	0.23 kg
Original number equivalent	LR5204-2Z-TVH-XL
