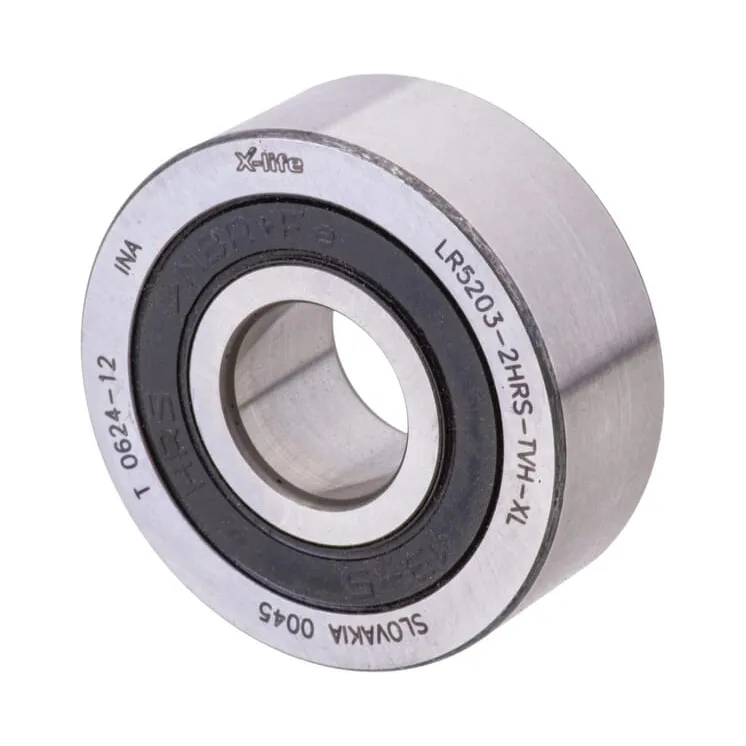

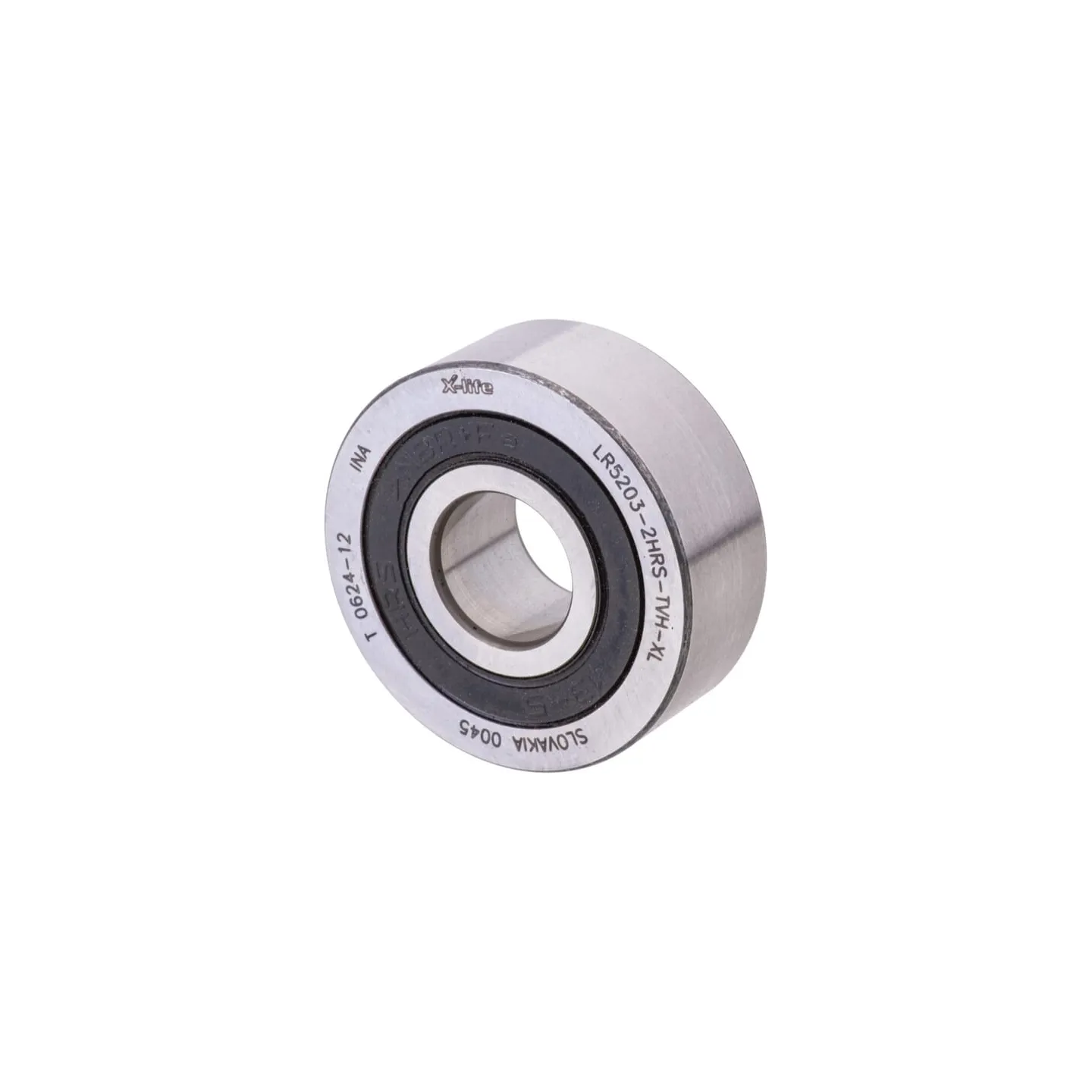

Kāpurķēžu rullīšu gultnis 2 rindu LR52032RS

Name: Kāpurķēžu rullīšu gultnis 2 rindu LR52032RS
Brand: INA/FAG
SKU: LR52032RS
Price: 51.36 EUR
Availability: InStock

Apmaksas iespējas

51,36 €

AR PVN

4-5 Darba dienas

Kāpurķēžu rullīšu gultnis 2 rindu LR52032RS INA/FAG

IR NOLIKTAVĀ

ID: 64566

Apraksts

Part number	LR52032RS
EAN	4054369197723
Unit	Each
Details	Lip seal on both sides Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Two-row layout Polyamide housing
Benefits	Maintenance-free Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	17 mm
DOutside diameter	47 mm
CWidth	17.5 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	9800 N
Basic radial load dynamic	13700 N
Rows number	2
Outer ring width	17.5 mm
Outer ring shape	Spherical
Max working temperature	120 °C
Min working temperature	-20 °C
Regreasable	No
Weight	0.17 kg
Original number equivalent	LR5203-2RS
