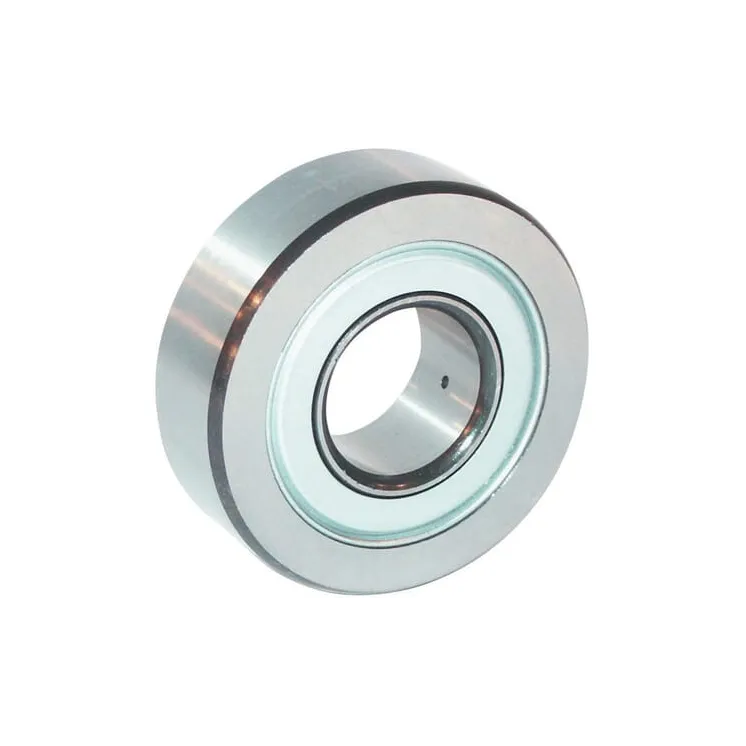

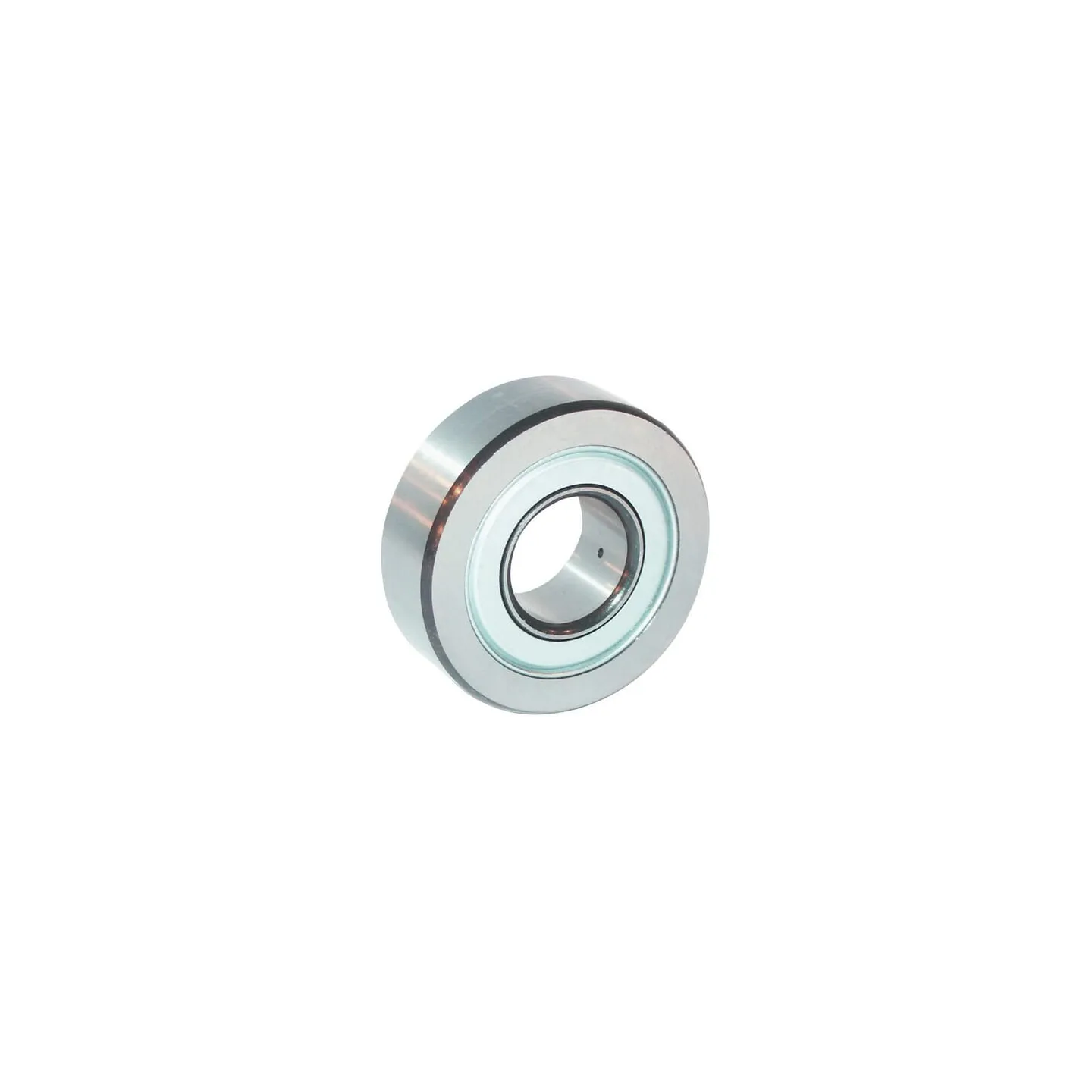

Kāpurķēžu rullīšu gultnis LR5202X2Z

Name: Kāpurķēžu rullīšu gultnis LR5202X2Z
Brand: INA/FAG
SKU: LR5202X2Z
Price: 48.25 EUR
Availability: InStock

Apmaksas iespējas

48,25 €

AR PVN

4-5 Darba dienas

Kāpurķēžu rullīšu gultnis LR5202X2Z INA/FAG

IR NOLIKTAVĀ

ID: 64569

Apraksts

Part number	LR5202X2Z
EAN	4054369278903
Unit	Each
Details	Lip seal on both sides Thick-walled outer ring
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Two-row layout Polyamide housing Running surface is cylindrical
Benefits	Maintenance-free Can absorb high radial loads
dInside diameter	15 mm
DOutside diameter	40 mm
CWidth	15 mm
Sealing	ZZ
Bearing model type	Track rollers
Basic radial load static	7700 N
Basic radial load dynamic	10800 N
Rows number	2
Outer ring shape	Cylindrical
Max working temperature	120 °C
Min working temperature	-20 °C
Regreasable	No
Weight	0.11 kg
Original number equivalent	LR5202-X-2Z-TVH-XL
