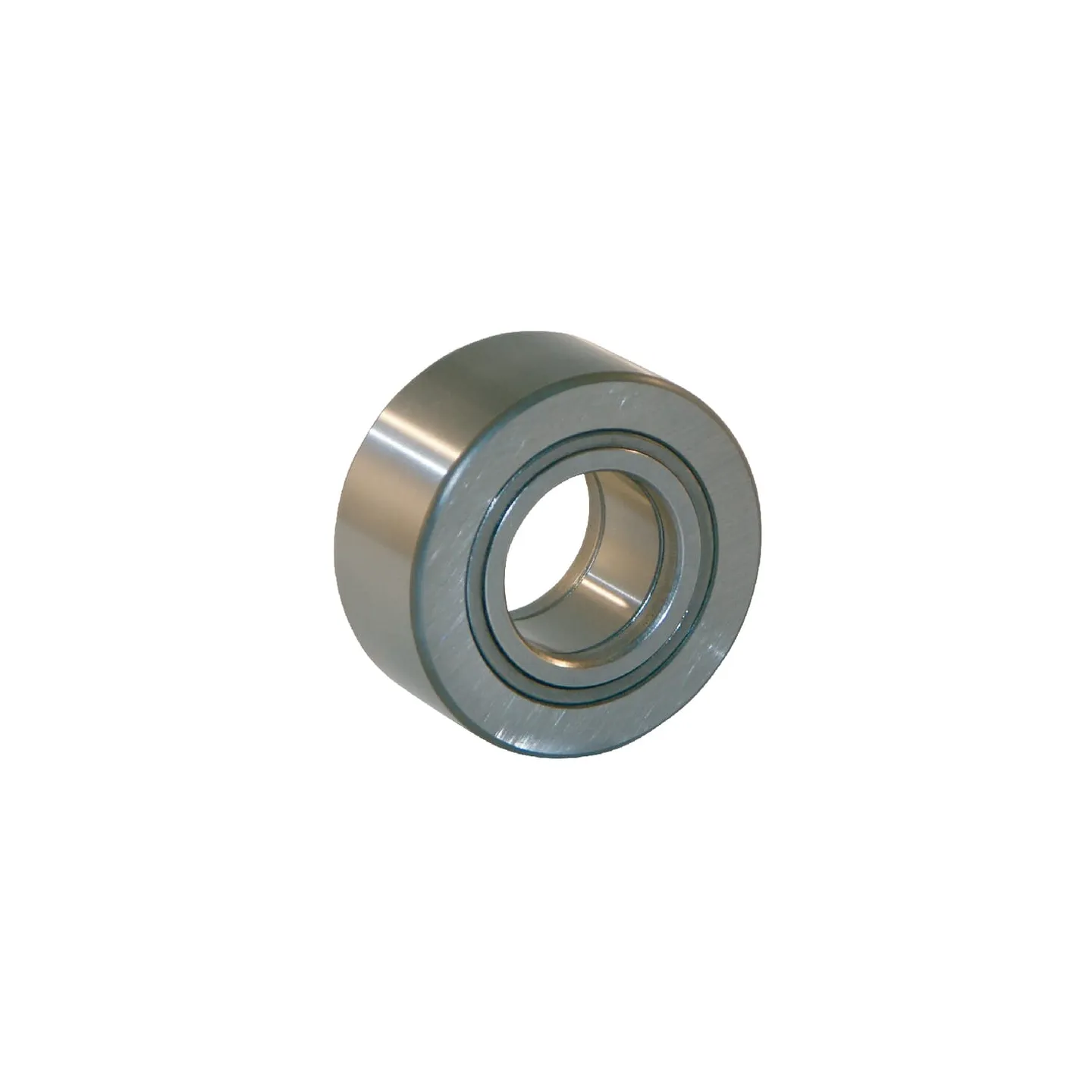

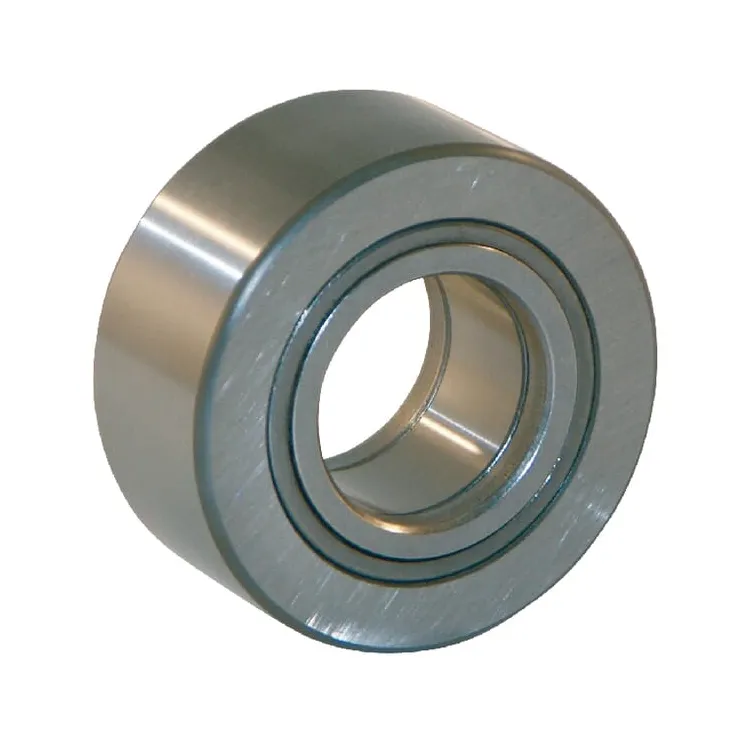

Kāpurķēžu rullīšu gultnis NUTR50XA

Name: Kāpurķēžu rullīšu gultnis NUTR50XA
Brand: INA/FAG
SKU: NUTR50XA
Price: 199.24 EUR
Availability: BackOrder

Apmaksas iespējas

199,24 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis NUTR50XA INA/FAG

Uz pasūtījumu

ID: 64625

Apraksts

Part number	NUTR50XA
EAN	4047643190596
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series nutR ..
Details	Labyrinth seal Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc Roller bearing is fully rolling
Benefits	Reduces friction and lubricant use Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	50 mm
DOutside diameter	90 mm
BWidth	32 mm
Sealing	ZZ
Bearing model type	Track rollers
Basic radial load static	86000 N
Basic radial load dynamic	58000 N
Rows number	2
Outer ring width	30 mm
Max working temperature	140 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.954 kg
Original number equivalent	NUTR50-X-A
