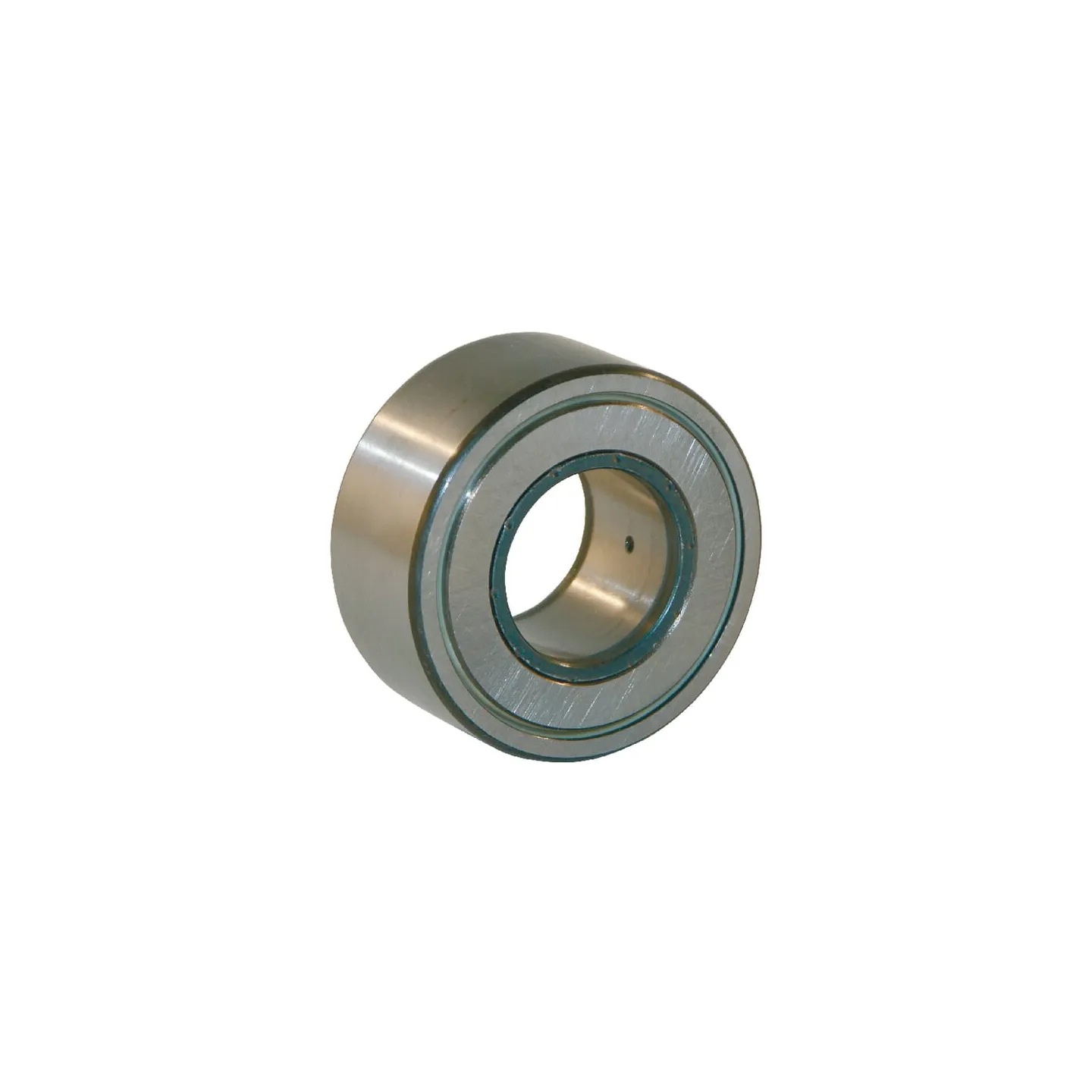

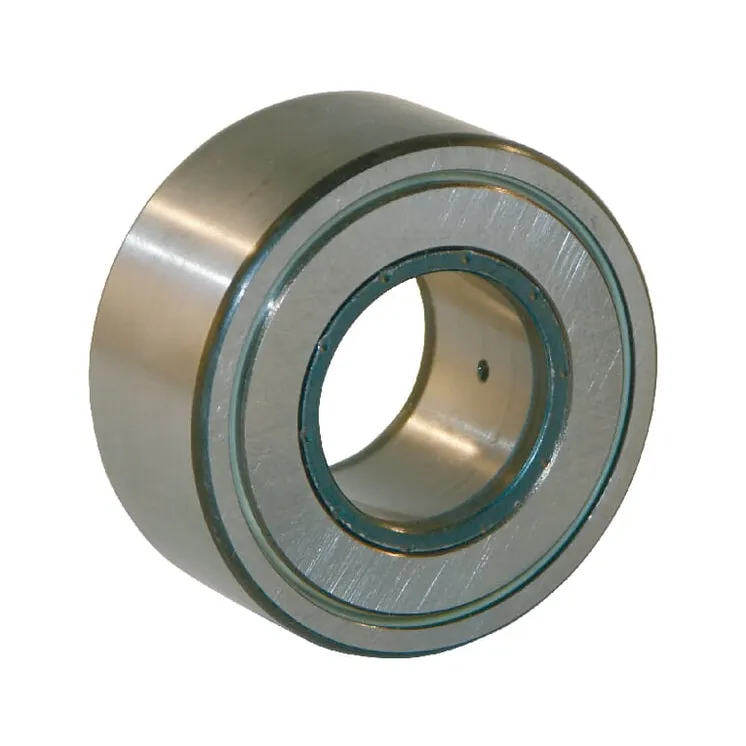

Kāpurķēžu rullīšu gultnis NATV20XPPA

Name: Kāpurķēžu rullīšu gultnis NATV20XPPA
Brand: INA/FAG
SKU: NATV20XPPA
Price: 73.07 EUR
Availability: BackOrder

Apmaksas iespējas

73,07 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis NATV20XPPA INA/FAG

Uz pasūtījumu

ID: 64628

Apraksts

Part number	NATV20XPPA
EAN	4012802022650
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series NATV ..
Details	Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc Fully needle shaped
Benefits	Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	20 mm
DOutside diameter	47 mm
BWidth	25 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	42500 N
Basic radial load dynamic	20200 N
Rows number	1
Outer ring width	24 mm
Max working temperature	100 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.25 kg
Original number equivalent	NATV20-X-PP-A
