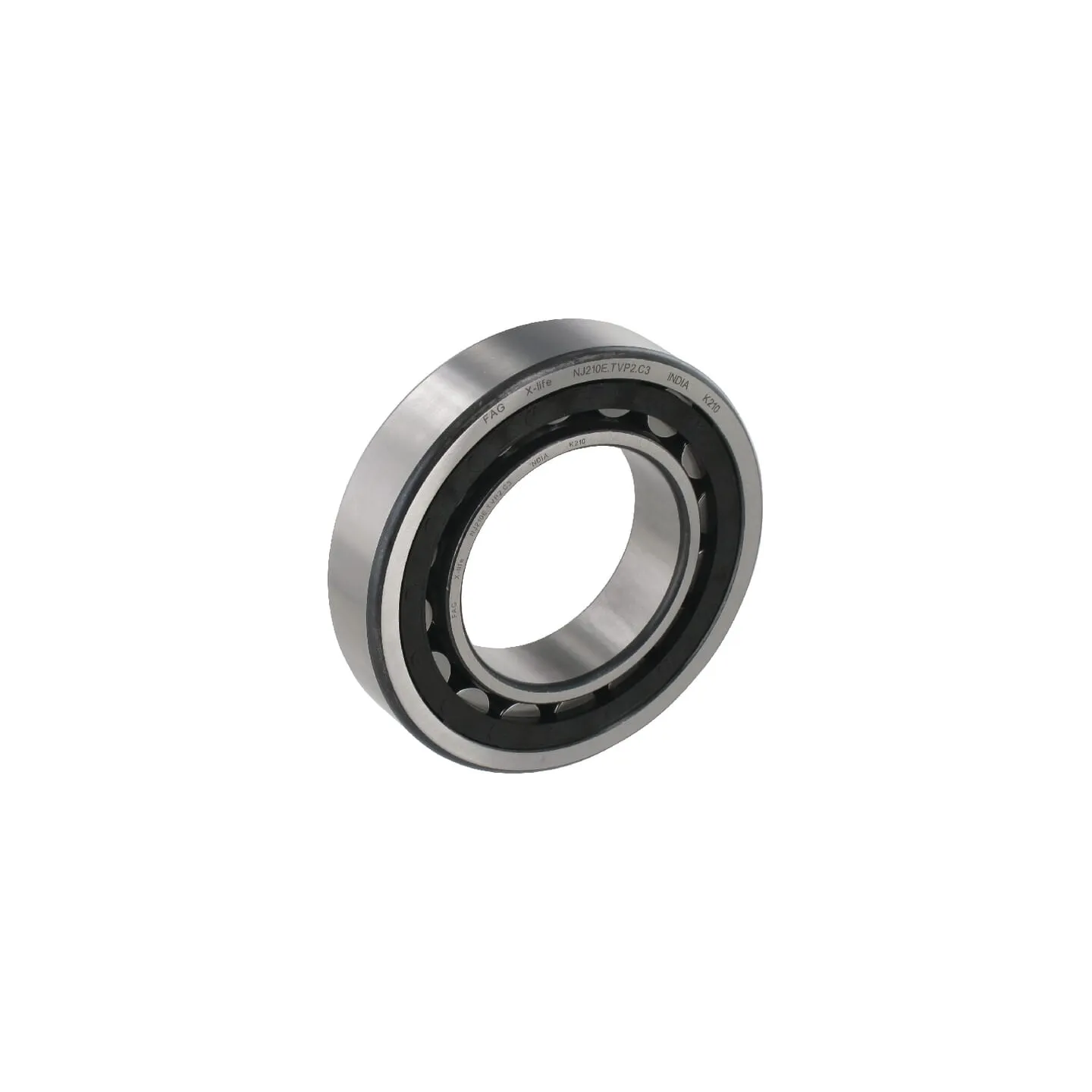

Cilindriskais rullīšu gultnis 35x72x17mm NJ207ETVP2C3

Name: Cilindriskais rullīšu gultnis 35x72x17mm NJ207ETVP2C3
Brand: INA/FAG
SKU: NJ207ETVP2C3
Price: 46.67 EUR
Availability: InStock

Apmaksas iespējas

46,67 €

AR PVN

4-5 Darba dienas

Cilindriskais rullīšu gultnis 35x72x17mm NJ207ETVP2C3 INA/FAG

IR NOLIKTAVĀ

ID: 64636

Apraksts

Part number	NJ207ETVP2C3
EAN	4012801176583
Unit	Each
Details	C3 radial bearing clearance
Application range	High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
Properties	Outer ring with 2 fixed ribs Inner ring with 1 rib Shaft can be closed axially in 1 direction
Benefits	Correct operating play at high temperature or press fit
dInside diameter	35 mm
DOutside diameter	72 mm
BWidth	17 mm
Consists of	Cylindrical bearing Inner ring NJ
Sealing	Open
Bearing model type	Cylindrical roller bearings
Basic radial load static	50000 N
Basic radial load dynamic	59000 N
Ref rotation speed	8300 r/min
Weight	0.295 kg
Original number equivalent	NJ207-E-XL-TVP2-C3
