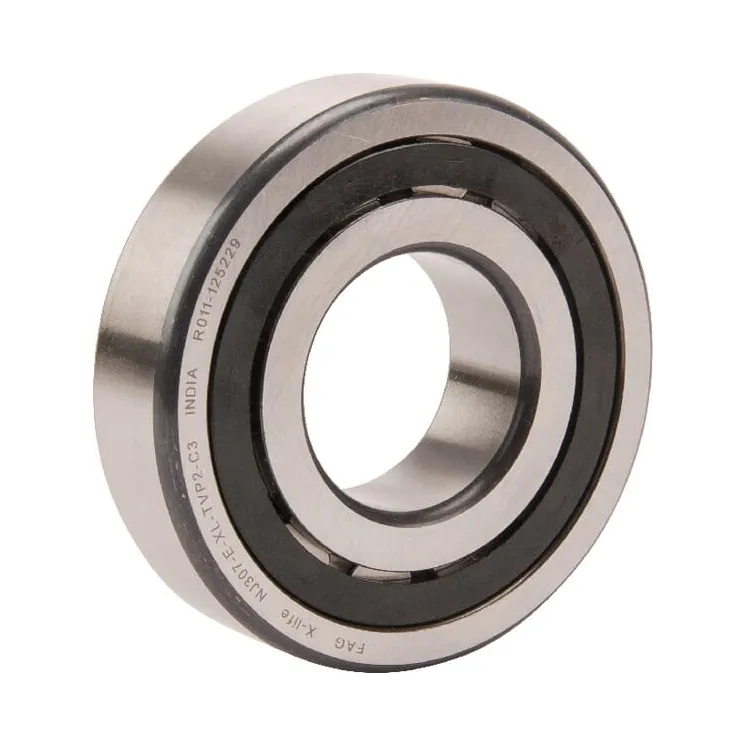

Cilindriskais rullīšu gultnis 35x80x21mm NJ307EXLTVP2C3

Name: Cilindriskais rullīšu gultnis 35x80x21mm NJ307EXLTVP2C3
Brand: INA/FAG
SKU: NJ307EXLTVP2C3
Price: 58.82 EUR
Availability: BackOrder

Apmaksas iespējas

58,82 €

AR PVN

Pēc pieprasījuma

Cilindriskais rullīšu gultnis 35x80x21mm NJ307EXLTVP2C3 INA/FAG

Uz pasūtījumu

ID: 64677

Apraksts

Part number	NJ307EXLTVP2C3
EAN	4012801383660
Unit	Each
Details	Radial bearing clearance (C3)
Application range	High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
Properties	Outer ring with 2 fixed ribs Inner ring with 1 rib Shaft can be closed axially in 1 direction
Benefits	Correct operating play at high temperature or press fit
dInside diameter	35 mm
DOutside diameter	80 mm
BWidth	21 mm
Consists of	Cylindrical bearing Inner ring NJ
Bearing model type	Cylindrical roller bearings
Basic radial load static	63000 N
Basic radial load dynamic	76000 N
Max rotation speed	12600 r/min
Ref rotation speed	7900 r/min
Weight	0.481 kg
Original number equivalent	NJ307-E-XL-TVP2-C3
