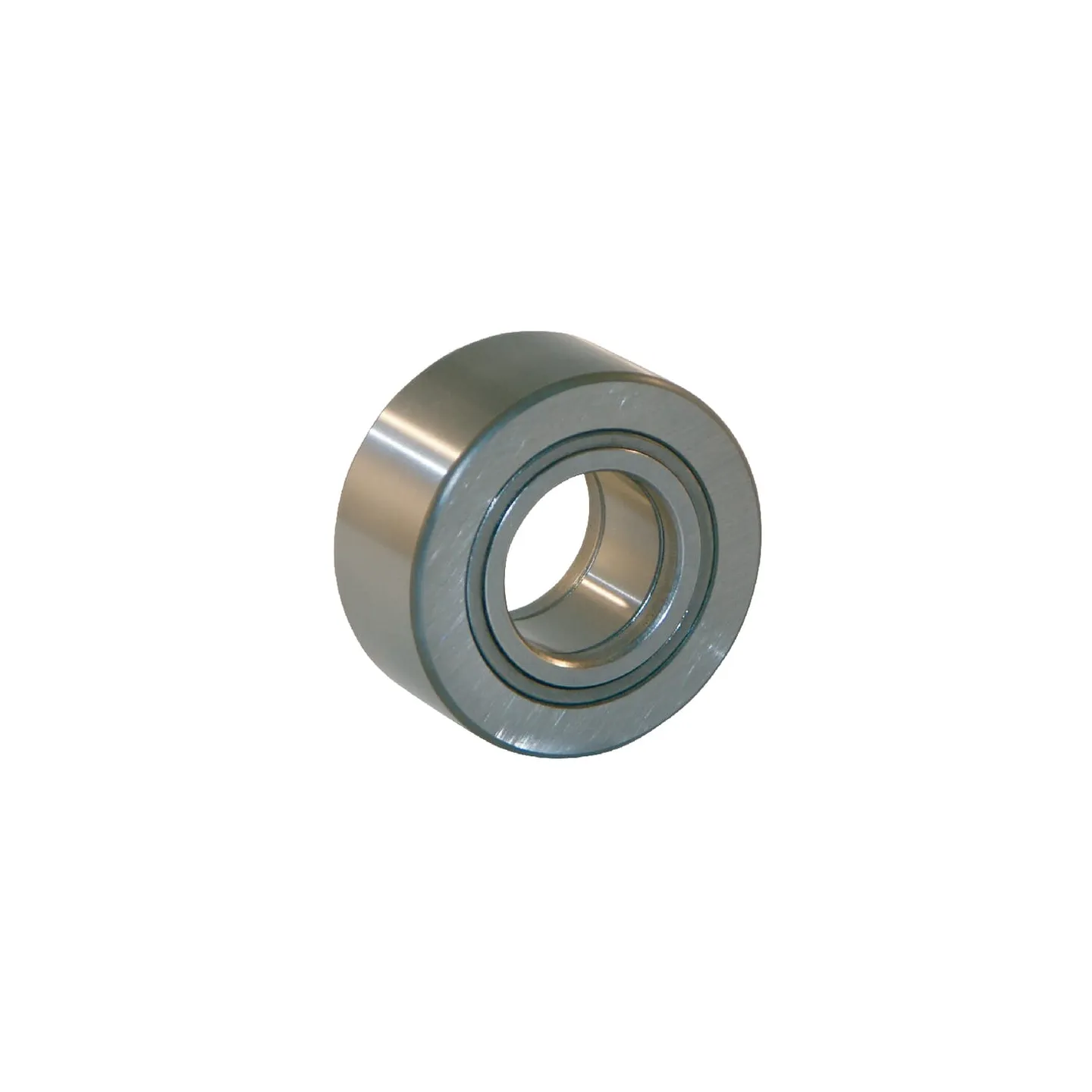

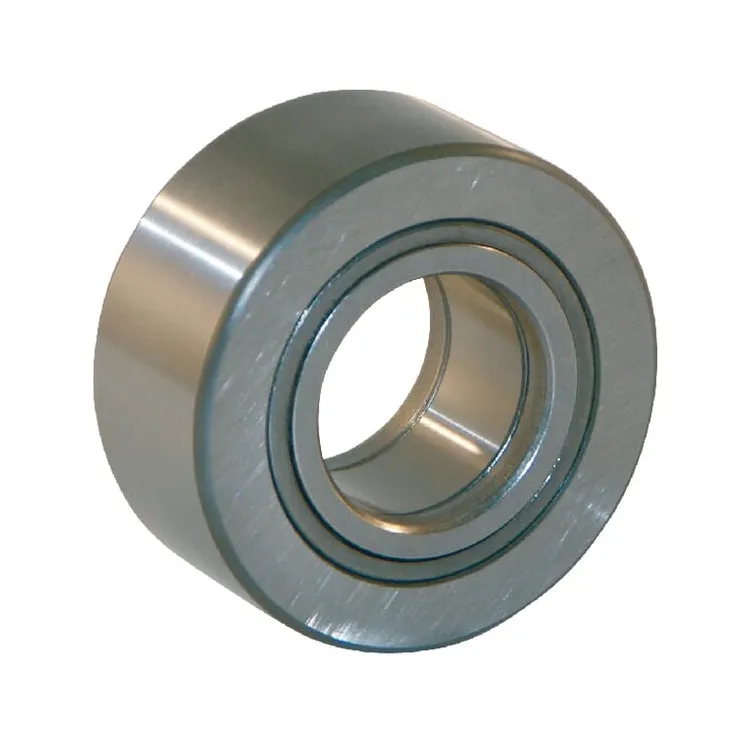

Kāpurķēžu rullīšu gultnis NUTR2052XA

Name: Kāpurķēžu rullīšu gultnis NUTR2052XA
Brand: INA/FAG
SKU: NUTR2052XA
Price: 74.5 EUR
Availability: BackOrder

Apmaksas iespējas

74,50 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis NUTR2052XA INA/FAG

Uz pasūtījumu

ID: 64695

Apraksts

Part number	NUTR2052XA
EAN	4047643188845
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series nutR ..
Details	Labyrinth seal Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc Roller bearing is fully rolling
Benefits	Reduces friction and lubricant use Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	20 mm
DOutside diameter	52 mm
BWidth	25 mm
Sealing	ZZ
Bearing model type	Track rollers
Basic radial load static	44500 N
Basic radial load dynamic	31500 N
Rows number	2
Outer ring width	24 mm
Max working temperature	140 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.318 kg
Original number equivalent	NUTR2052-X-A
