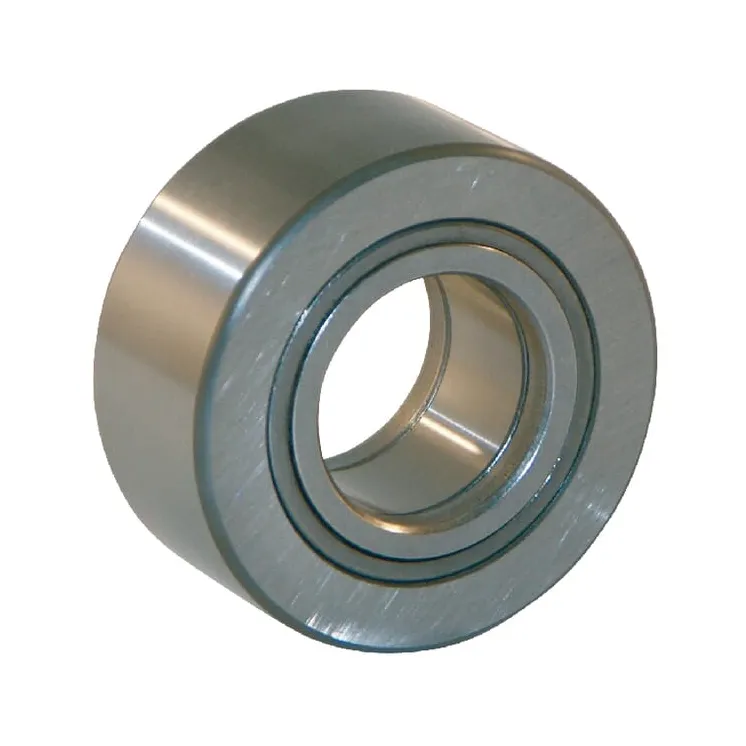

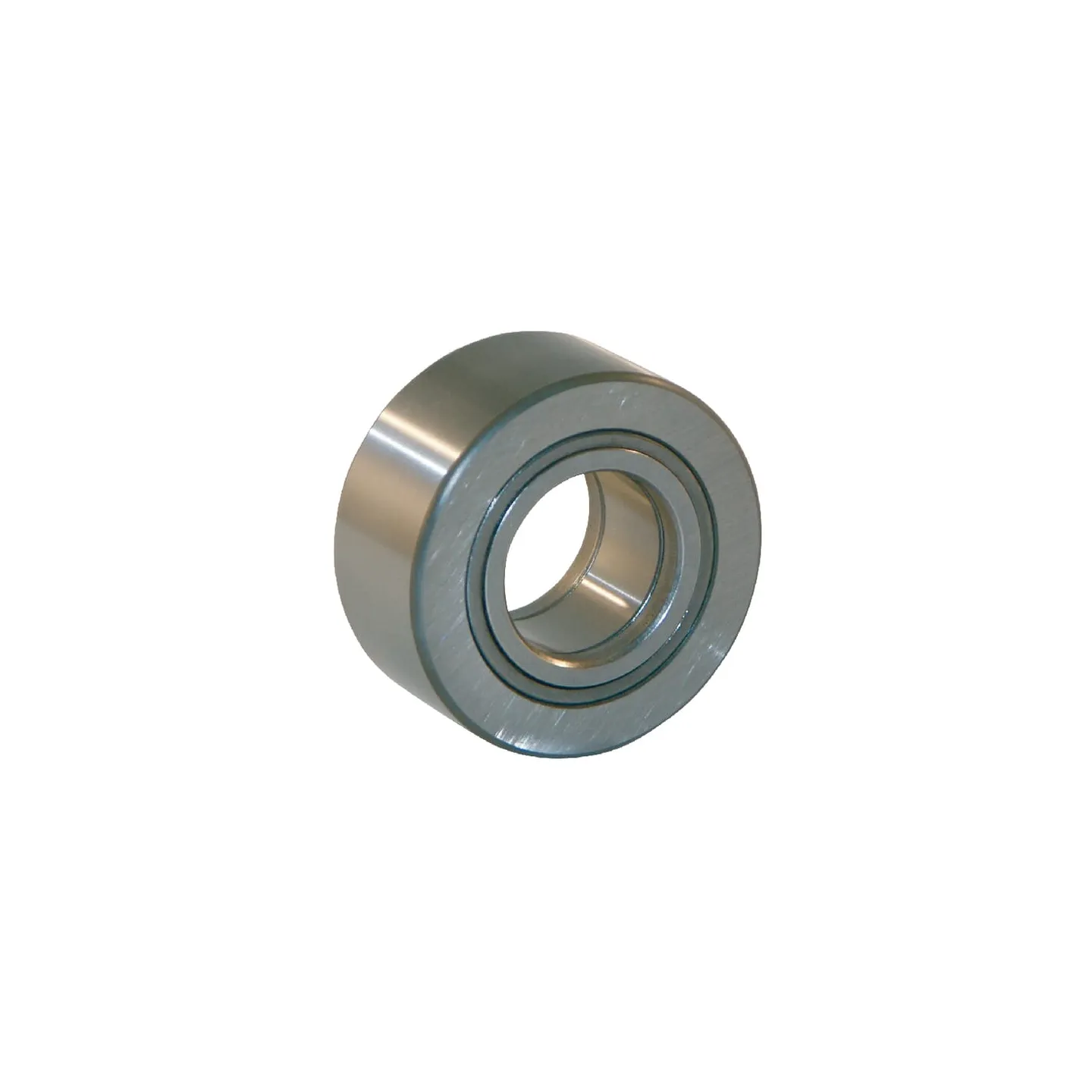

Kāpurķēžu rullīšu gultnis NUTR40A

Name: Kāpurķēžu rullīšu gultnis NUTR40A
Brand: INA/FAG
SKU: NUTR40A
Price: 125.24 EUR
Availability: InStock

Apmaksas iespējas

125,24 €

AR PVN

4-5 Darba dienas

Kāpurķēžu rullīšu gultnis NUTR40A INA/FAG

IR NOLIKTAVĀ

ID: 64698

Apraksts

Part number	NUTR40A
EAN	4012802646078
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series nutR ..
Details	Labyrinth seal Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc Roller bearing is fully rolling
Benefits	Reduces friction and lubricant use Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	40 mm
DOutside diameter	80 mm
BWidth	32 mm
Sealing	ZZ
Bearing model type	Track rollers
Basic radial load static	80000 N
Basic radial load dynamic	57000 N
Rows number	2
Outer ring width	30 mm
Max working temperature	140 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.816 kg
Original number equivalent	NUTR40-A
