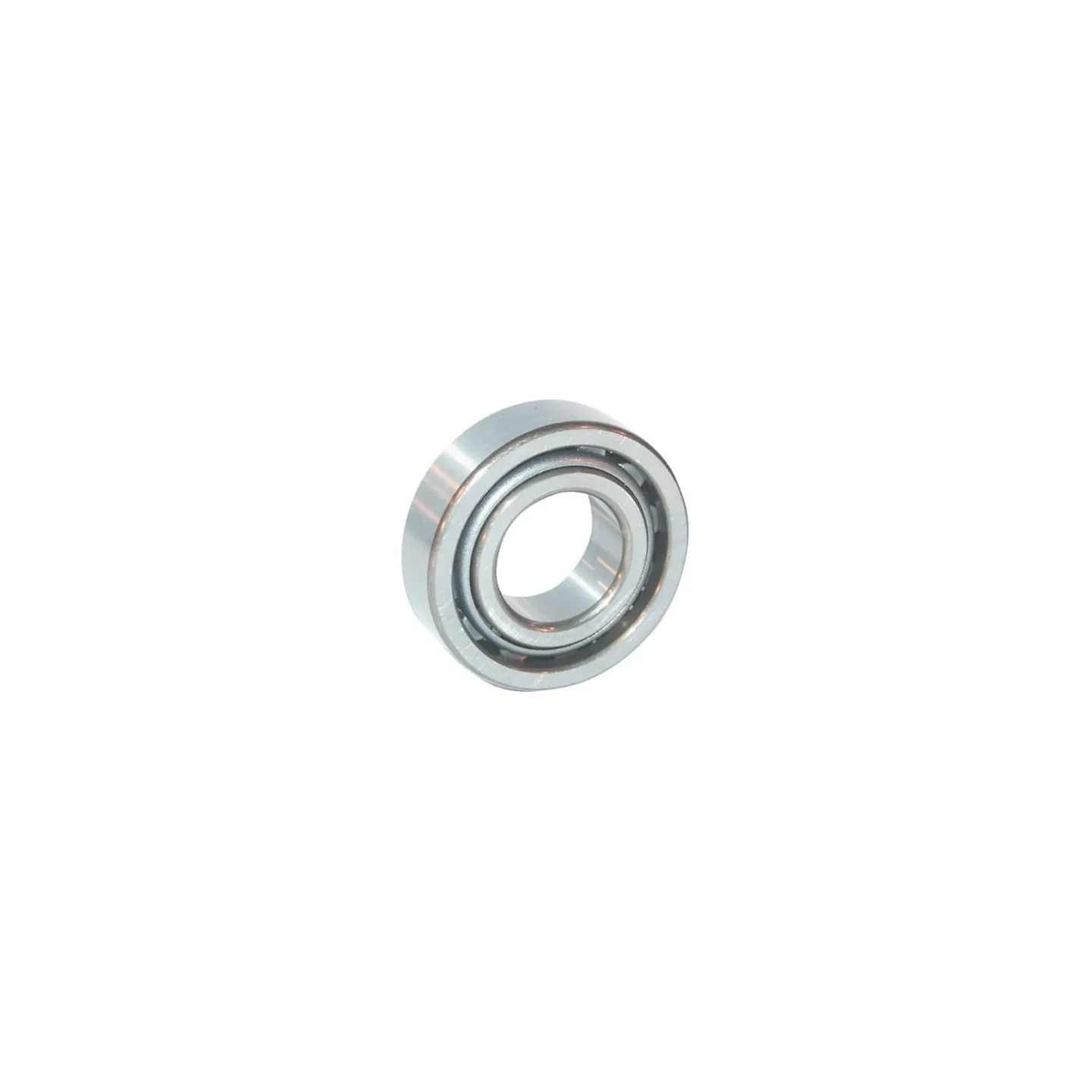

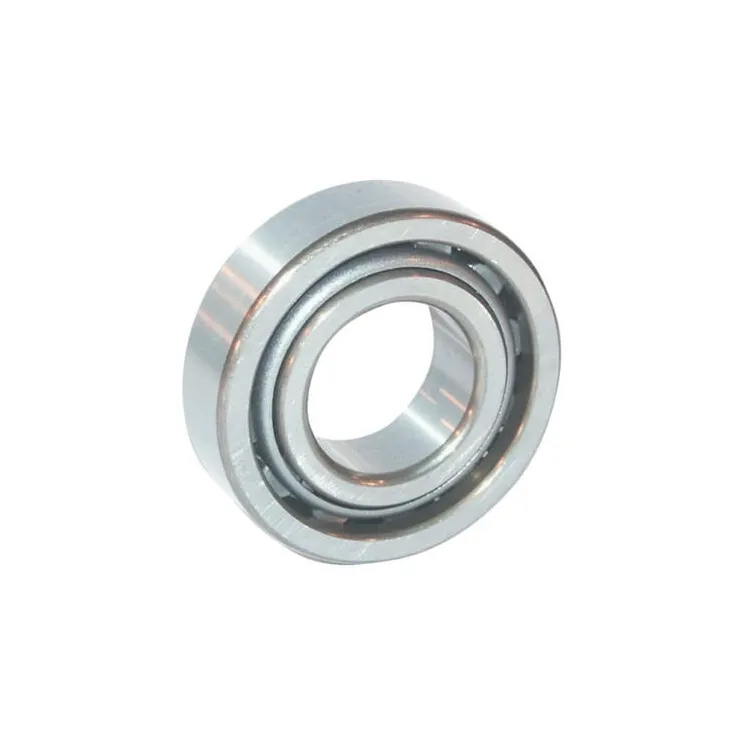

Cilindriskais rullīšu gultnis 17x40x12mm NU203

Name: Cilindriskais rullīšu gultnis 17x40x12mm NU203
Brand: INA/FAG
SKU: NU203
Price: 29.67 EUR
Availability: InStock

Apmaksas iespējas

29,67 €

AR PVN

4-5 Darba dienas

Cilindriskais rullīšu gultnis 17x40x12mm NU203 INA/FAG

IR NOLIKTAVĀ

ID: 64719

Apraksts

Part number	NU203
EAN	4012801179102
Unit	Each
Application range	High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
Properties	Outer ring with 2 fixed ribs Inner ring without rib Axial displacement of shaft with regard to housing in 2 directions
dInside diameter	17 mm
DOutside diameter	40 mm
BWidth	12 mm
Consists of	Cylindrical bearing Inner ring NU
Sealing	Open
Bearing model type	Cylindrical roller bearings
Basic radial load static	14600 N
Basic radial load dynamic	20800 N
Max rotation speed	26500 r/min
Ref rotation speed	18000 r/min
Weight	0.067 kg
Original number equivalent	NU203-E-TVP2
