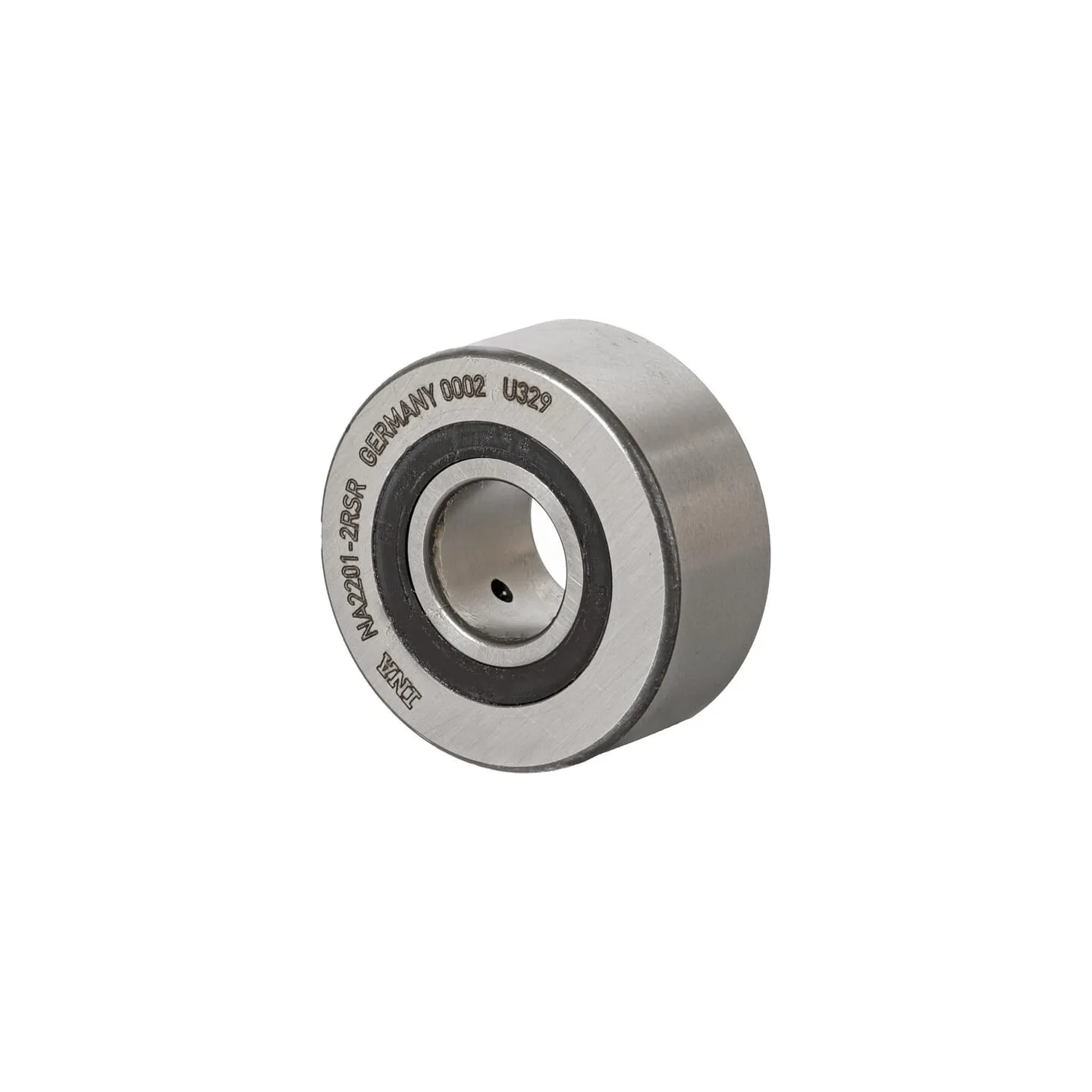

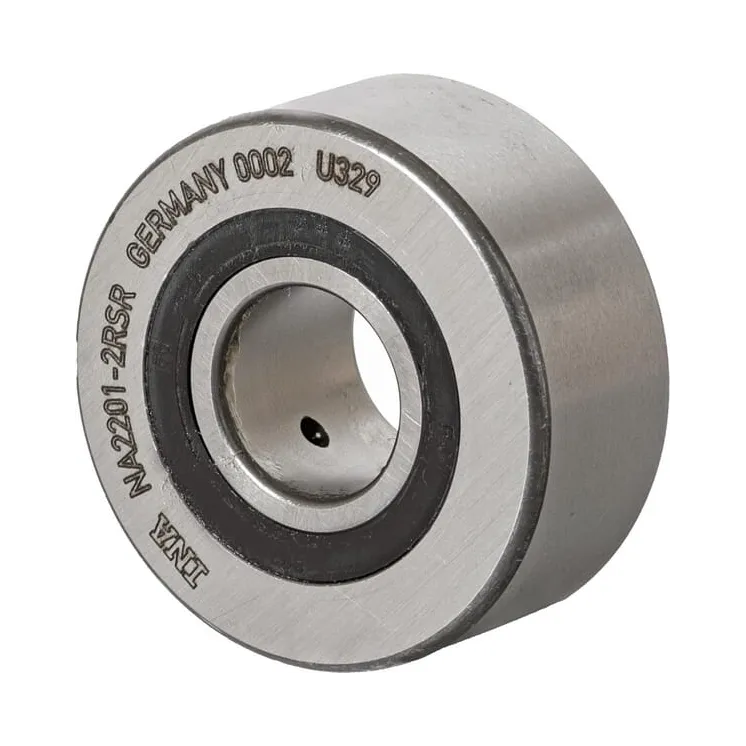

Kāpurķēžu rullīšu gultnis NA22012RSR

Name: Kāpurķēžu rullīšu gultnis NA22012RSR
Brand: INA/FAG
SKU: NA22012RSR
Price: 66.79 EUR
Availability: InStock

Apmaksas iespējas

66,79 €

AR PVN

4-5 Darba dienas

Kāpurķēžu rullīšu gultnis NA22012RSR INA/FAG

IR NOLIKTAVĀ

ID: 64730

Apraksts

Part number	NA22012RSR
EAN	4012801175050
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series NA ..
Details	Low-friction steel seal
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Single or two-row arrangements with especially thick-walled outer rings Absorb high radial loads and axial loads in both directions
Technical info	Outer ring of lateral surface is annular (R500) Temperature range: -30°C to +140°C Cage is full complement With axial guidance via driving disc
dInside diameter	12 mm
DOutside diameter	32 mm
BWidth	14 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	8300 N
Basic radial load dynamic	6600 N
Rows number	1
COuter ring width	13.8 mm
Max working temperature	120 °C
Min working temperature	-30 °C
Regreasable	Yes
Original number equivalent	NA2201-2RSR
