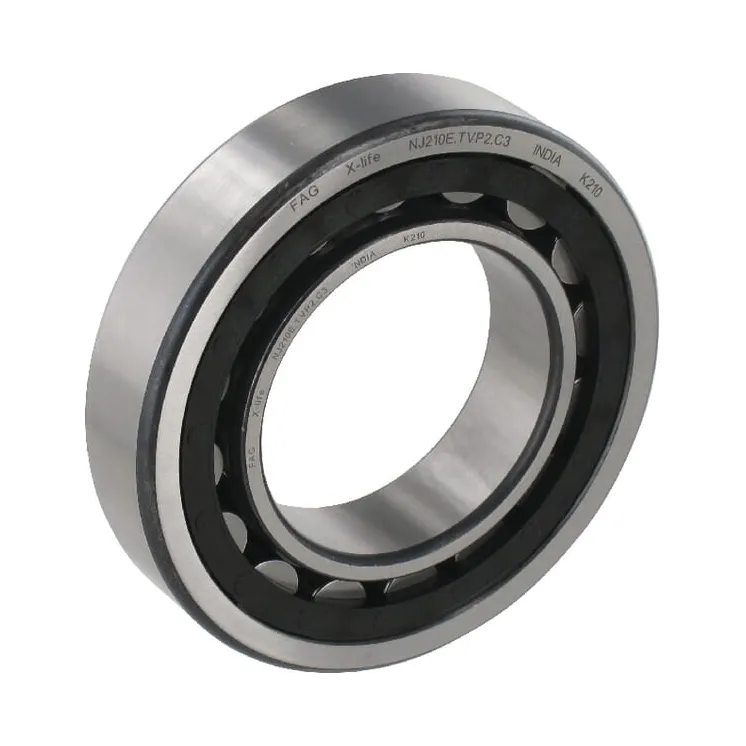

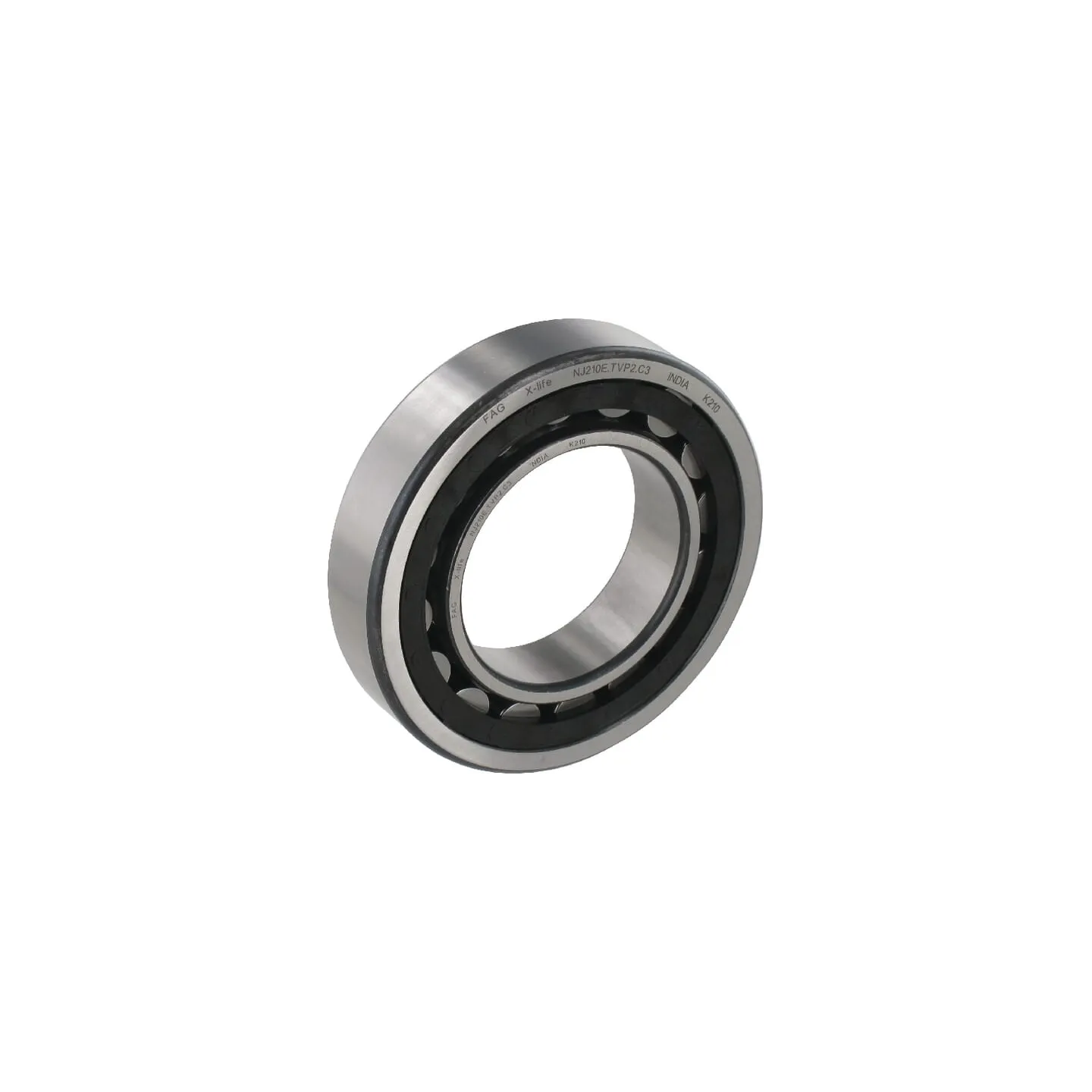

Cilindriskais rullīšu gultnis 50x90x20mm NJ210ETVP2C3

Name: Cilindriskais rullīšu gultnis 50x90x20mm NJ210ETVP2C3
Brand: INA/FAG
SKU: NJ210ETVP2C3
Price: 69.48 EUR
Availability: InStock

Apmaksas iespējas

69,48 €

AR PVN

4-5 Darba dienas

Cilindriskais rullīšu gultnis 50x90x20mm NJ210ETVP2C3 INA/FAG

IR NOLIKTAVĀ

ID: 64732

Apraksts

Part number	NJ210ETVP2C3
EAN	4012801020756
Unit	Each
Details	C3 radial bearing clearance
Application range	High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
Properties	Outer ring with 2 fixed ribs Inner ring with 1 rib Shaft can be closed axially in 1 direction
Benefits	Correct operating play at high temperature or press fit
dInside diameter	50 mm
DOutside diameter	90 mm
BWidth	20 mm
Consists of	Cylindrical bearing Inner ring NJ
Sealing	Open
Bearing model type	Deep groove ball bearings
Basic radial load static	69000 N
Basic radial load dynamic	75000 N
Max rotation speed	11100 r/min
Ref rotation speed	6700 r/min
Radial internal clearance code	C3
Weight	0.484 kg
Original number equivalent	NJ210-E-XL-TVP2-C3
