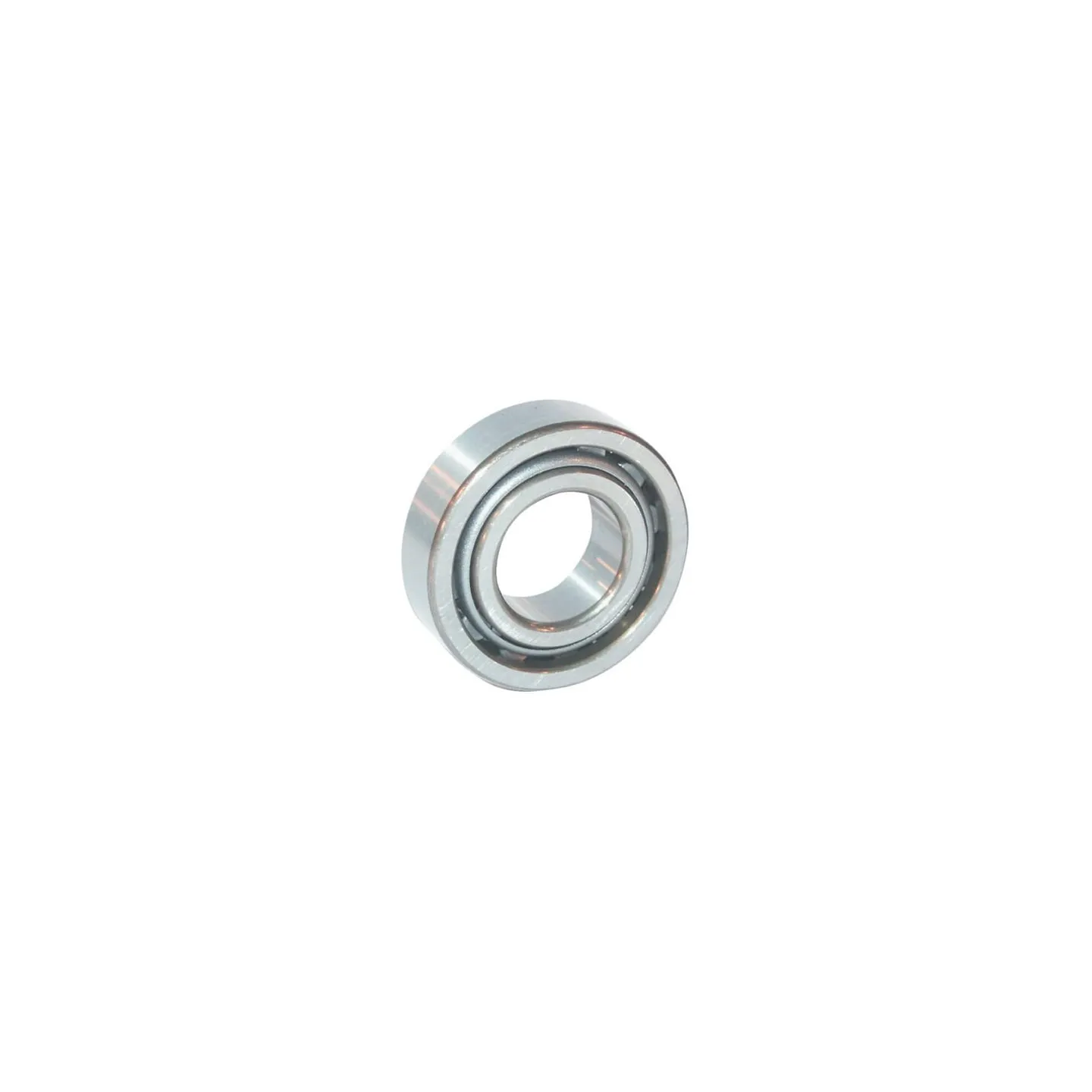

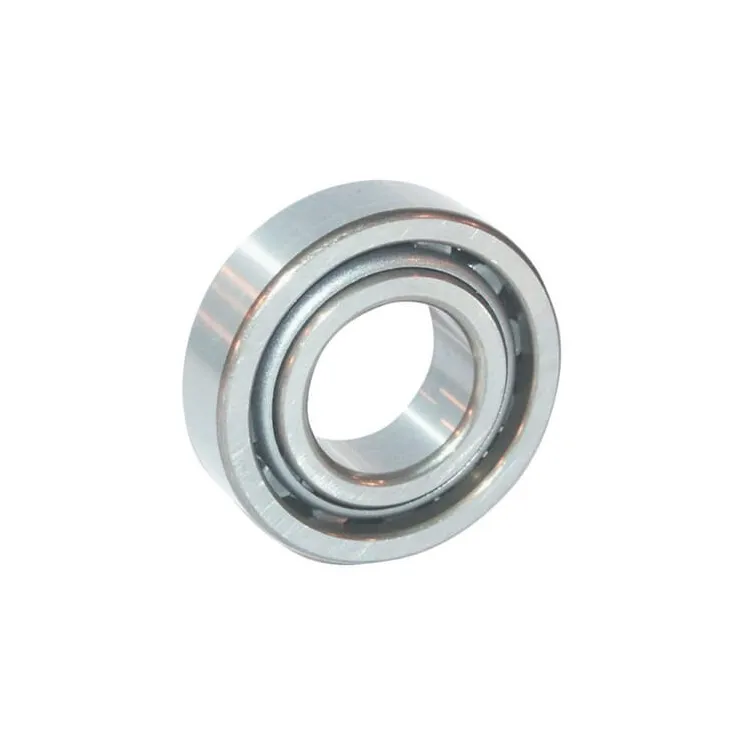

Cilindriskais rullīšu gultnis 35x80x31mm NJ2307EXLTVP2C3

Name: Cilindriskais rullīšu gultnis 35x80x31mm NJ2307EXLTVP2C3
Brand: INA/FAG
SKU: NJ2307EXLTVP2C3
Price: 95.52 EUR
Availability: BackOrder

Apmaksas iespējas

95,52 €

AR PVN

Pēc pieprasījuma

Cilindriskais rullīšu gultnis 35x80x31mm NJ2307EXLTVP2C3 INA/FAG

Uz pasūtījumu

ID: 64745

Apraksts

Part number	NJ2307EXLTVP2C3
EAN	4012801381239
Unit	Each
Details	Radial bearing clearance (C3)
Application range	High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
Properties	Outer ring with 2 fixed ribs Inner ring with 1 rib Shaft can be closed axially in 1 direction
Benefits	Correct operating play at high temperature or press fit
dInside diameter	35 mm
DOutside diameter	80 mm
BWidth	31 mm
Consists of	Cylindrical bearing Inner ring NJ
Bearing model type	Cylindrical roller bearings
Basic radial load static	98000 N
Basic radial load dynamic	108000 N
Max rotation speed	12600 r/min
Ref rotation speed	6600 r/min
Weight	0.072 kg
Original number equivalent	NJ2307-E-XL-TVP2-C3
