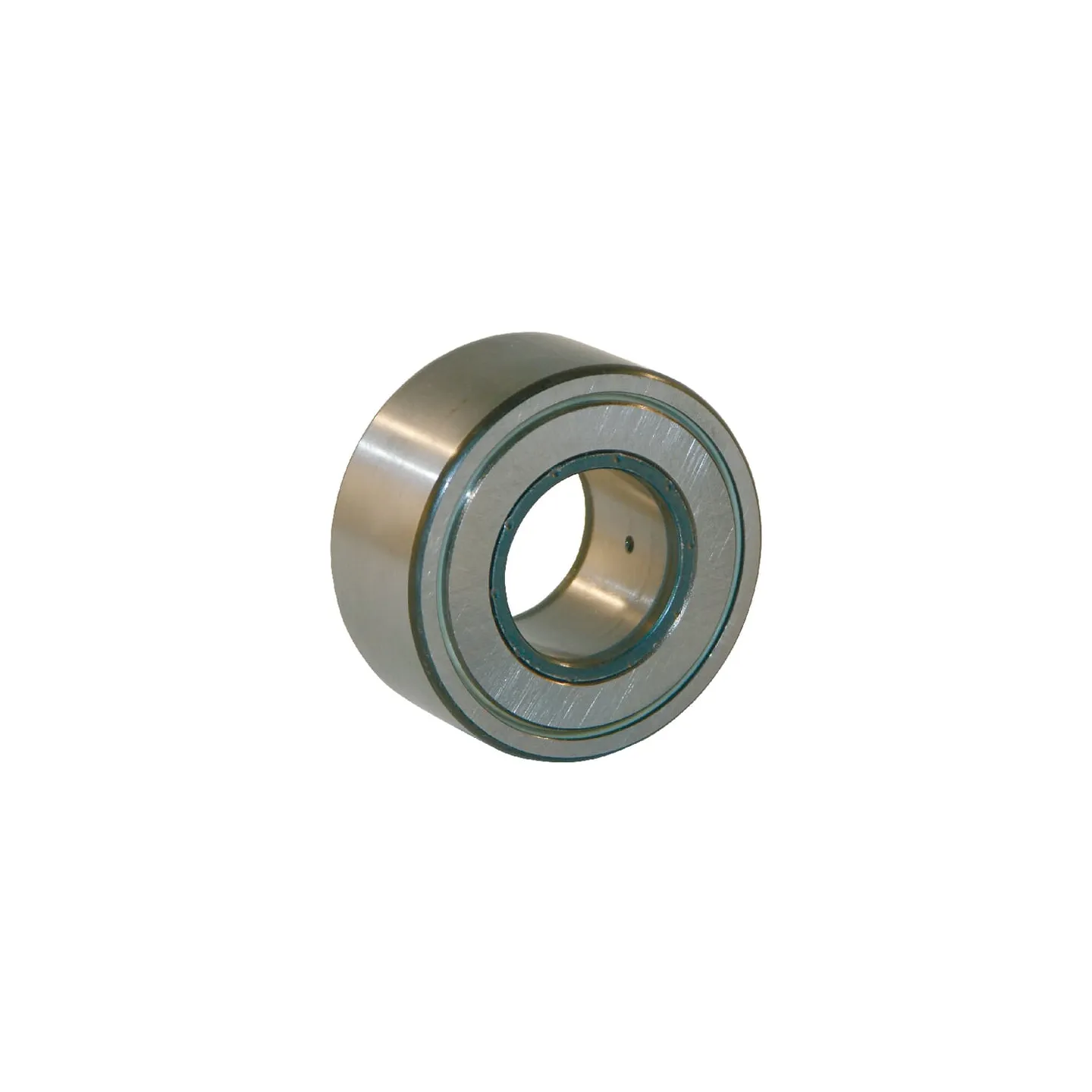

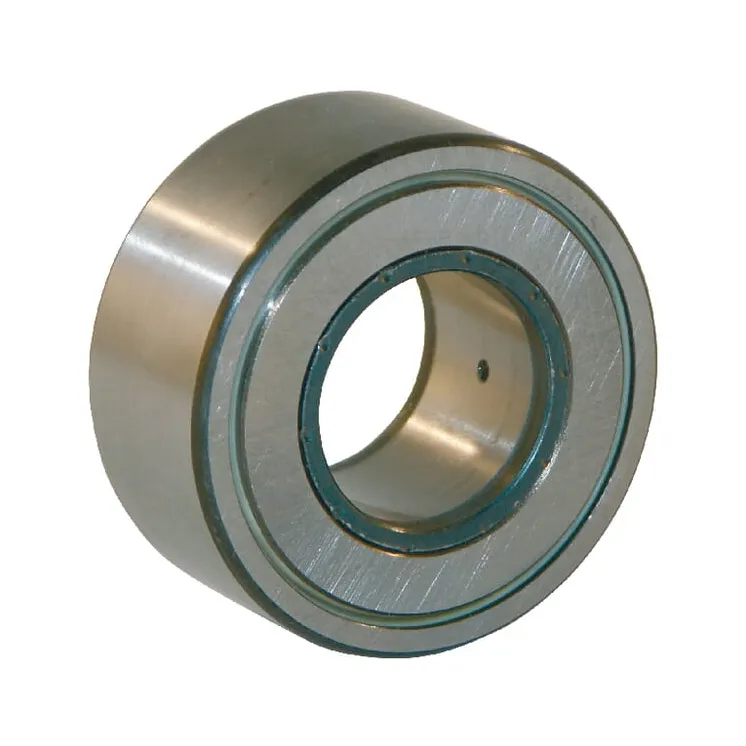

Kāpurķēžu rullīšu gultnis NATV40PPAINA

Name: Kāpurķēžu rullīšu gultnis NATV40PPAINA
Brand: INA/FAG
SKU: NATV40PPAINA
Price: 145.03 EUR
Availability: BackOrder

Apmaksas iespējas

145,03 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis NATV40PPAINA INA/FAG

Uz pasūtījumu

ID: 64747

Apraksts

Part number	NATV40PPAINA
EAN	4012802885651
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series NATV ..
Details	Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc Fully needle shaped
Benefits	Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	40 mm
DOutside diameter	80 mm
BWidth	32 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	89000 N
Basic radial load dynamic	39500 N
Rows number	1
Outer ring width	30 mm
Max working temperature	100 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.817 kg
Original number equivalent	NATV40-PP-A
