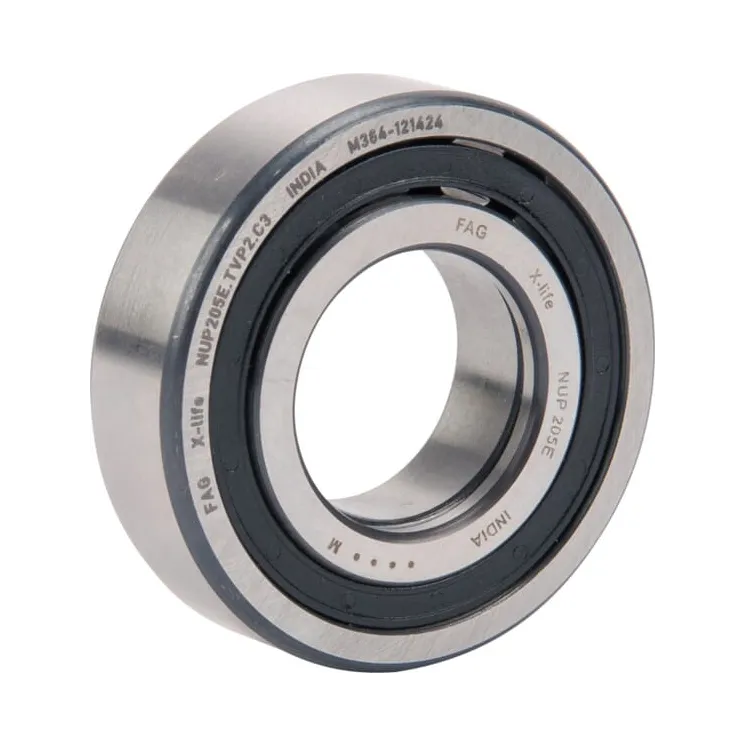

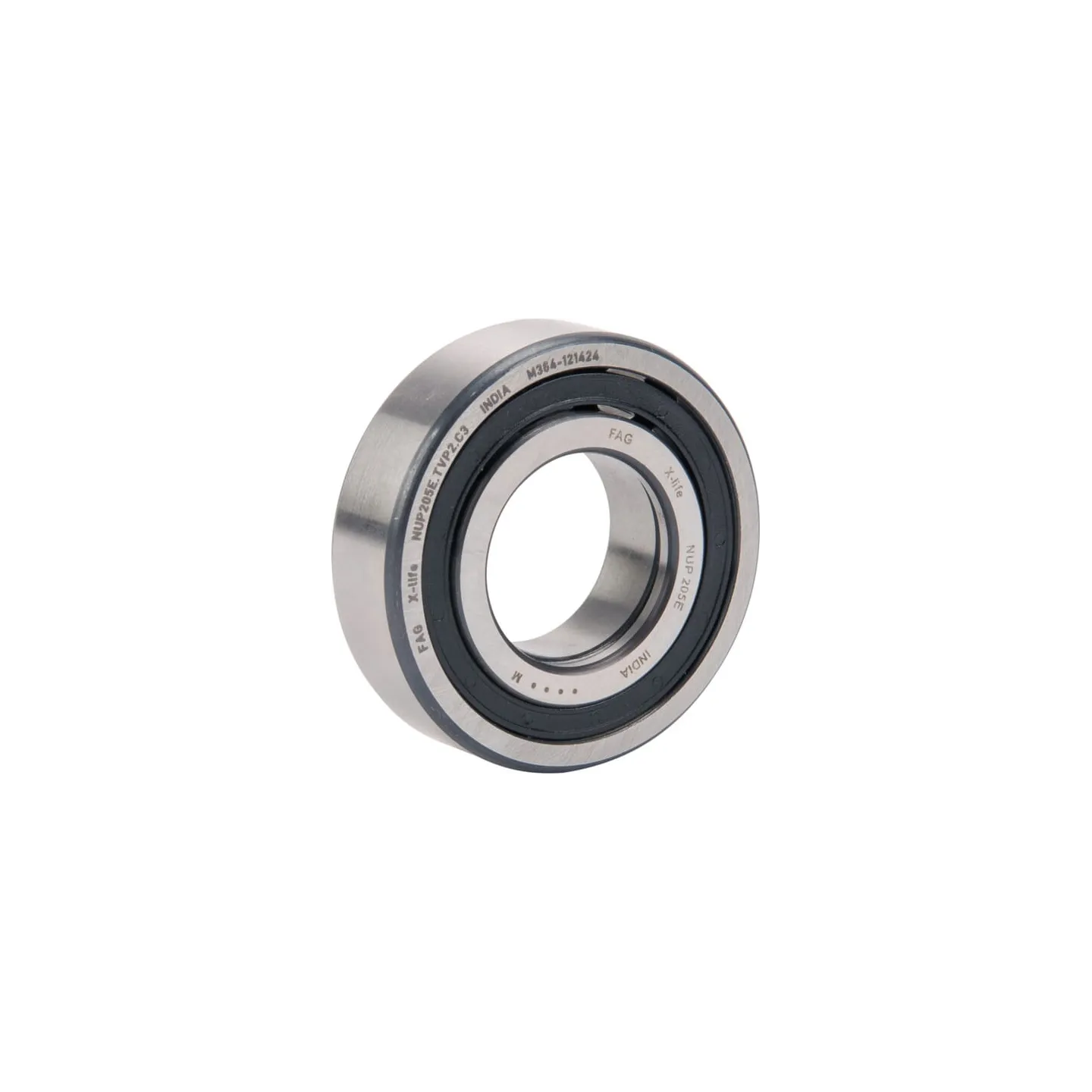

Cilindriskais rullīšu gultnis 25x52x15mm NUP205EXLTVP2C3

Name: Cilindriskais rullīšu gultnis 25x52x15mm NUP205EXLTVP2C3
Brand: INA/FAG
SKU: NUP205EXLTVP2C3
Price: 43.64 EUR
Availability: InStock

Apmaksas iespējas

43,64 €

AR PVN

4-5 Darba dienas

Cilindriskais rullīšu gultnis 25x52x15mm NUP205EXLTVP2C3 INA/FAG

IR NOLIKTAVĀ

ID: 64750

Apraksts

Part number	NUP205EXLTVP2C3
EAN	4012801180078
Unit	Each
Application range	High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
Properties	Outer ring with 2 fixed ribs Inner ring with 1 fixed and 1 loose rib Fixed bearing, to lock shaft axially in 2 directions
dInside diameter	25 mm
DOutside diameter	52 mm
BWidth	15 mm
Consists of	Cylindrical bearing Inner ring NUP
Bearing model type	Cylindrical roller bearings
Basic radial load static	27500 N
Basic radial load dynamic	34500 N
Max rotation speed	19800 r/min
Ref rotation speed	11600 r/min
Weight	0.129 kg
Original number equivalent	NUP205-E-XL-TVP2-C3
