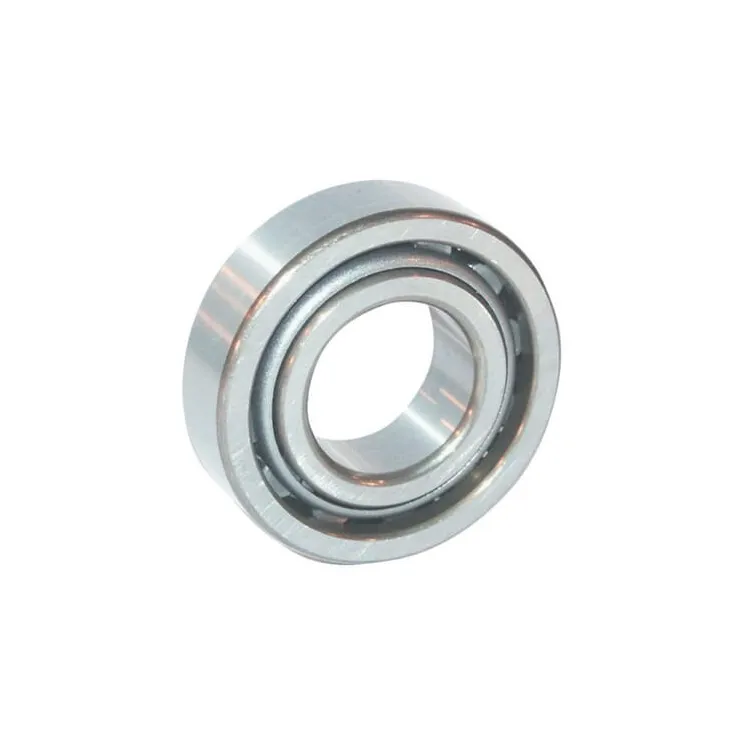

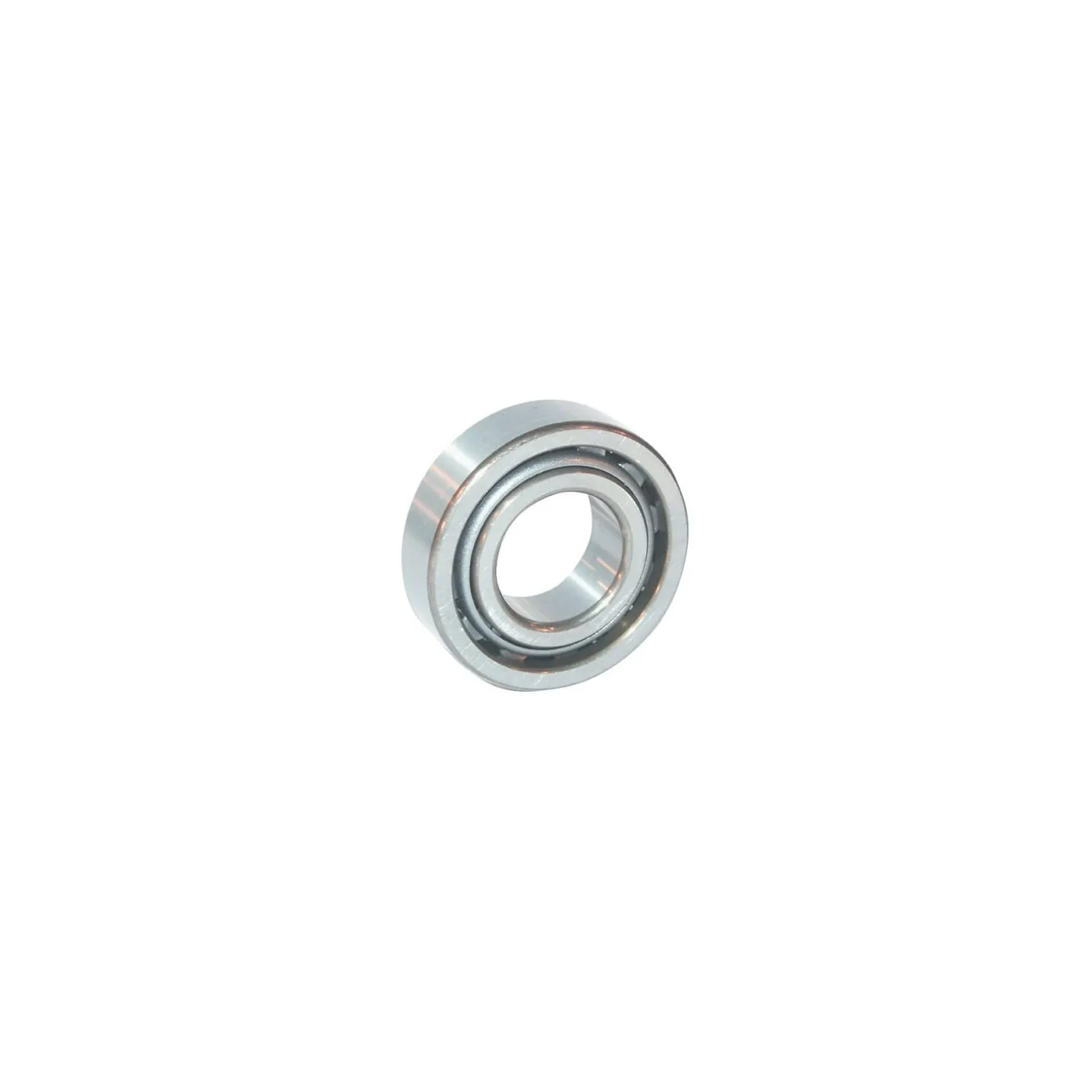

Cilindriskais rullīšu gultnis 30x72x19mm NJ306EXLTVP2C3

Name: Cilindriskais rullīšu gultnis 30x72x19mm NJ306EXLTVP2C3
Brand: INA/FAG
SKU: NJ306EXLTVP2C3
Price: 52.47 EUR
Availability: BackOrder

Apmaksas iespējas

52,47 €

AR PVN

Pēc pieprasījuma

Cilindriskais rullīšu gultnis 30x72x19mm NJ306EXLTVP2C3 INA/FAG

Uz pasūtījumu

ID: 64752

Apraksts

Part number	NJ306EXLTVP2C3
EAN	4012801021050
Unit	Each
Details	Radial bearing clearance (C3)
Application range	High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
Properties	Outer ring with 2 fixed ribs Inner ring with 1 rib Shaft can be closed axially in 1 direction
Benefits	Correct operating play at high temperature or press fit
dInside diameter	30 mm
DOutside diameter	72 mm
BWidth	19 mm
Consists of	Cylindrical bearing Inner ring NJ
Bearing model type	Cylindrical roller bearings
Basic radial load static	48000 N
Basic radial load dynamic	61000 N
Max rotation speed	14200 r/min
Ref rotation speed	8900 r/min
Weight	0.384 kg
Original number equivalent	NJ306-E-XL-TVP2-C3
