Kāpurķēžu rullīšu gultnis NUKR47A INA/FAG NUKR47ANMT
search
  • Kāpurķēžu rullīšu gultnis NUKR47A INA/FAG NUKR47ANMT

Kāpurķēžu rullīšu gultnis NUKR47A NUKR47ANMT

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
154,90 €
AR PVN
Pēc pieprasījuma
Kāpurķēžu rullīšu gultnis NUKR47A INA/FAG NUKR47ANMT
Uz pasūtījumu

64755

  • Zīmols
    INA/FAG
  • Norāde
    NUKR47A
  • Stāvoklis
    Jauns
  • Citi kodi
    NUKR47ANMT
  • EAN
    4047643189590
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
NUKR47A
EAN4047643189590
Unit
Each
Long description

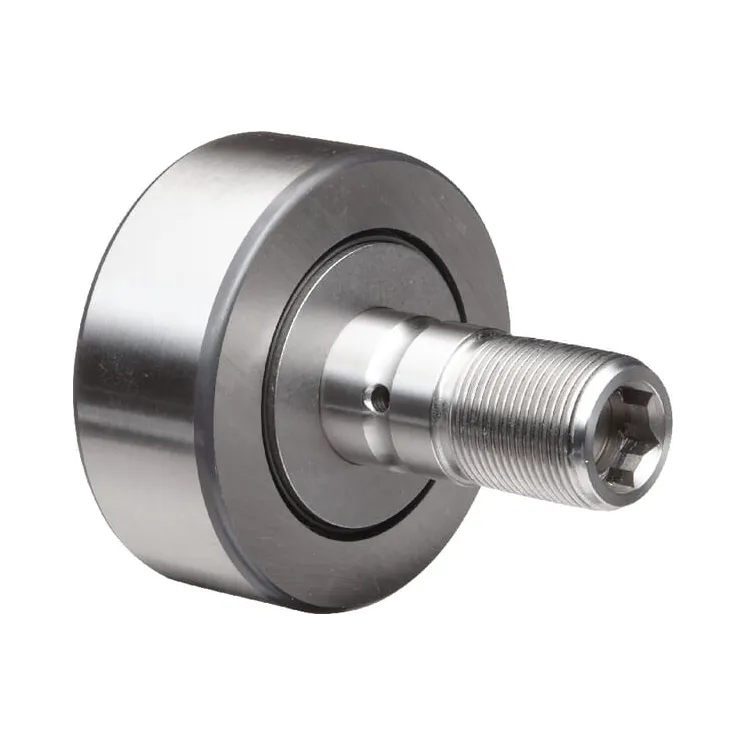

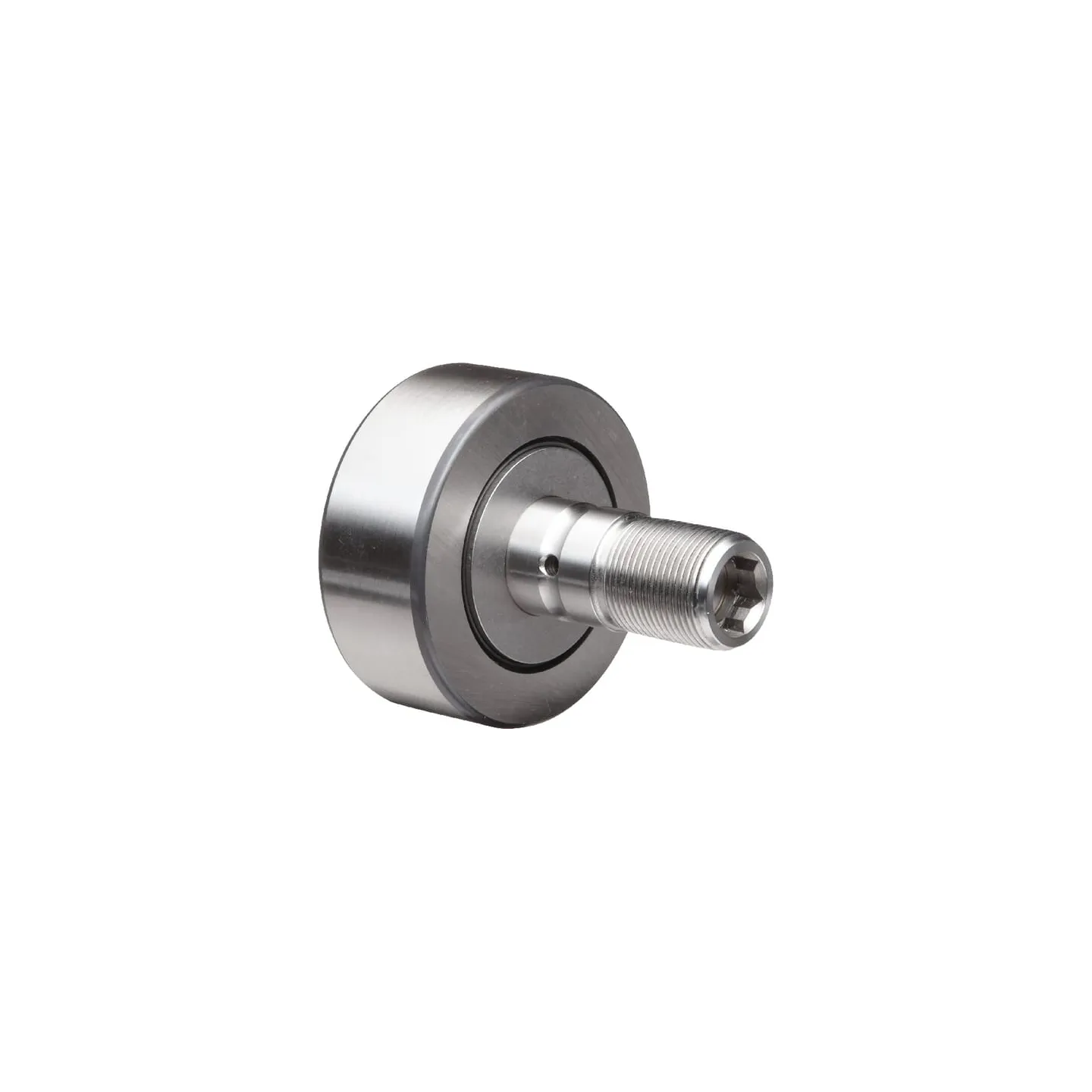

Track rollers single and double-row INA/FAG, series NUKR
Details
  • Labyrinth seal
  • Thick-walled outer ring
  • Track is slightly ball-shaped
Application range
  • Packaging machines
  • Transport systems
  • Roll-up doors
  • Roller tensioners
Properties
  • Solid shaft with guide bore
  • With axial guidance via driving discs
  • Roller bearing is fully rolling
  • NMT add-on: equipped with a nut
Benefits
  • Reduces friction and lubricant use
  • Can absorb high radial loads
  • No forces on edges with uneven standing
Inside diameter
20 mm
DOutside diameter
47 mm
CWidth
24 mm
Sealing
ZZ
Bearing model type
Track rollers
Basic radial load static
38000 N
Basic radial load dynamic
28500 N
Rows number
2
Outer ring width
24 mm
d1Shaft diameter
20 mm
B2Shaft length
40.5 mm
IGMounting thread length
21 mm
GMounting thread diameter
M20
Max working temperature
140 °C
Min working temperature
-30 °C
Regreasable
Yes
Weight
0.378 kg
Original number equivalent
NUKR47-A
BTotal length
66 mm
Mounting thread pitch
1.50 mm
