Kāpurķēžu rullīšu gultnis NATR20XPPA

Name: Kāpurķēžu rullīšu gultnis NATR20XPPA
Brand: INA/FAG
SKU: NATR20XPPA
Price: 62.04 EUR
Availability: BackOrder

Apmaksas iespējas

62,04 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis NATR20XPPA INA/FAG

Uz pasūtījumu

ID: 64765

Apraksts

Part number	NATR20XPPA
EAN	4012802428049
Unit	Each

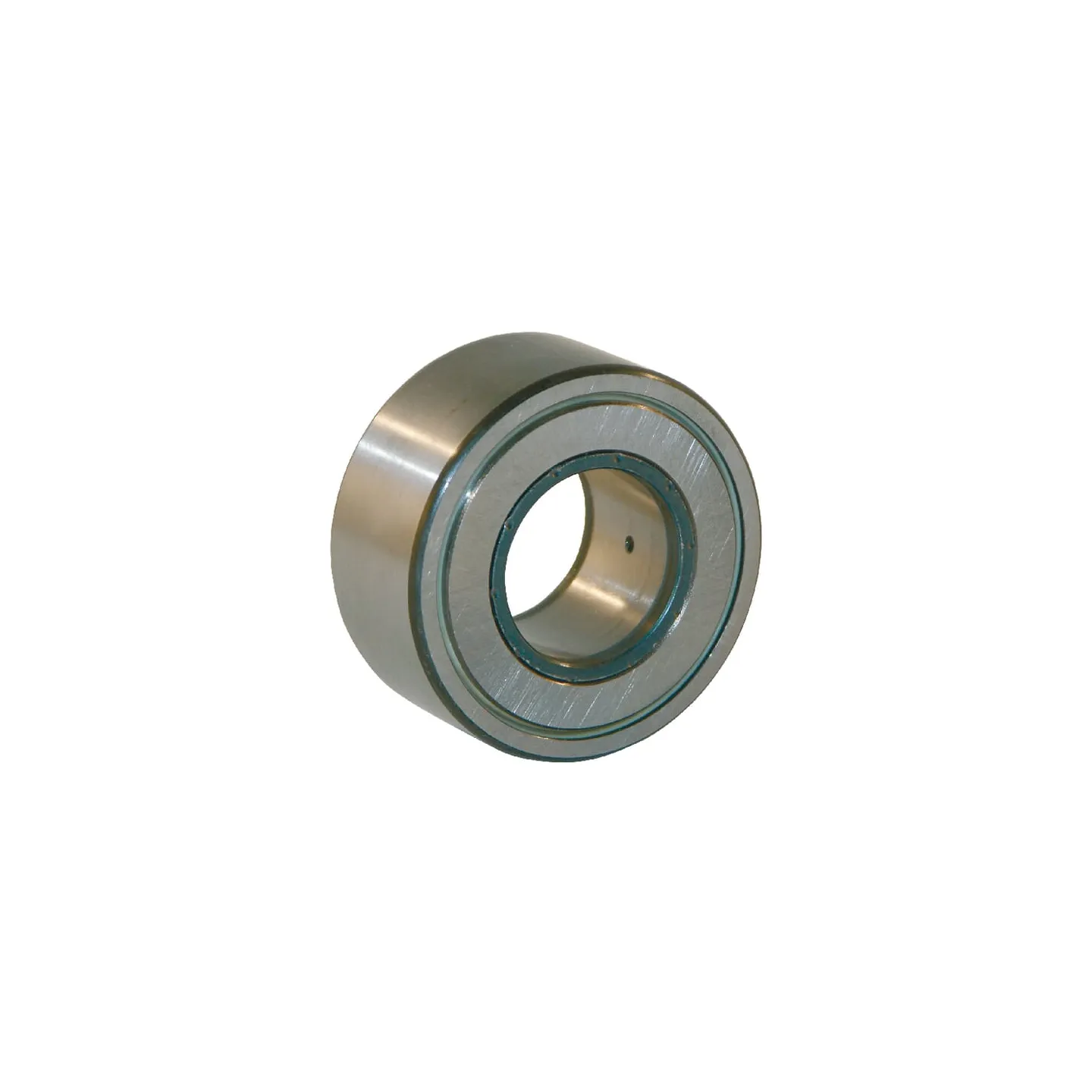

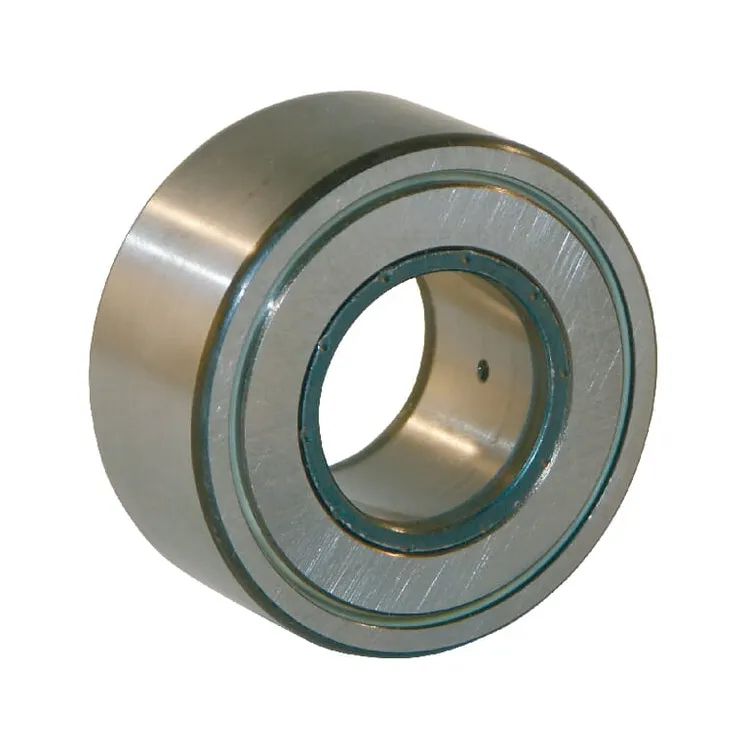

Long description	Track rollers SKF, series NATR .. PP
Details	Sealed on both sides by axially movable three-level plastic seal Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc
Benefits	Reduces friction and lubricant use Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	20 mm
DOutside diameter	47 mm
BWidth	25 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	26000 N
Basic radial load dynamic	15400 N
Rows number	1
Outer ring width	24 mm
Max working temperature	100 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.234 kg
Original number equivalent	NATR20-X-PP-A
