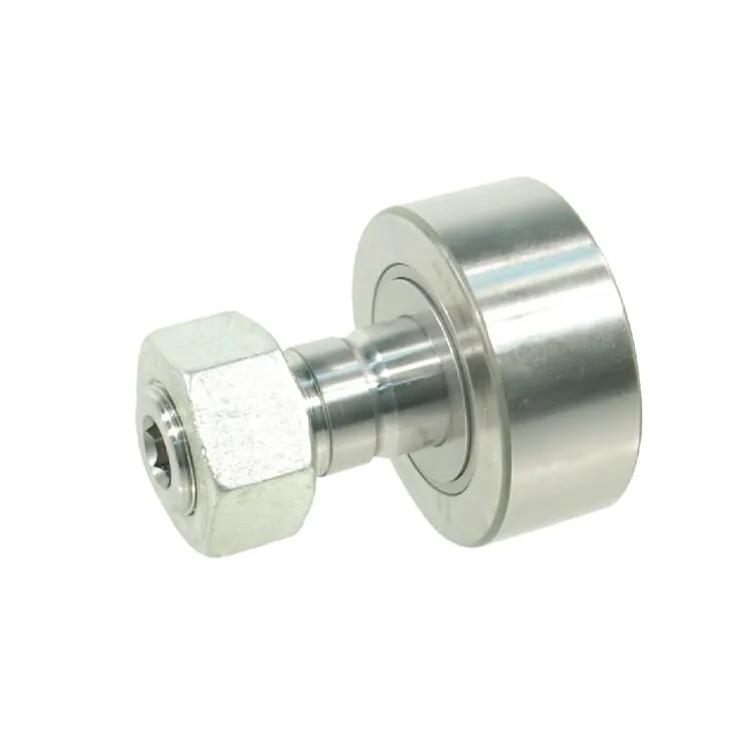

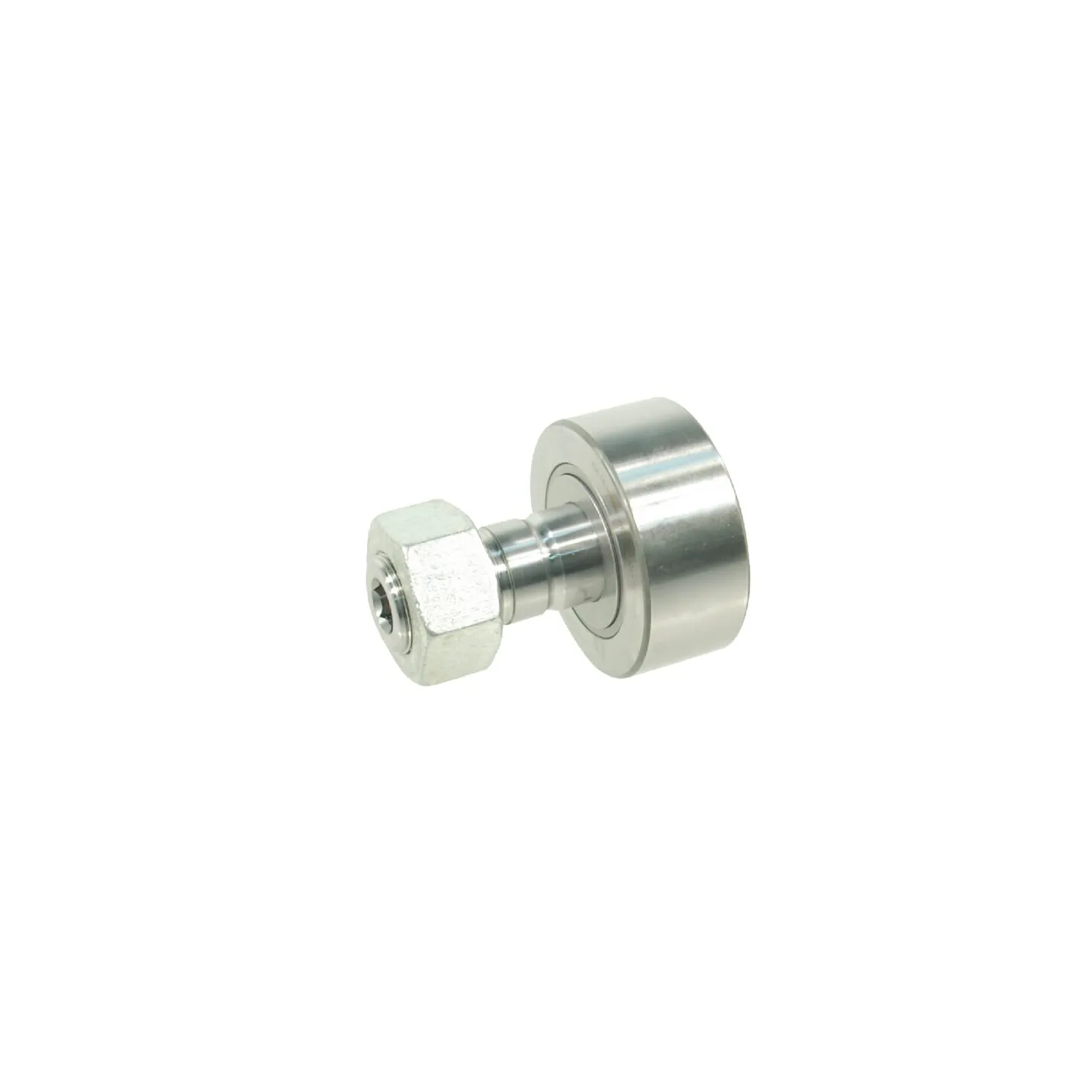

Kāpurķēžu veltnis ar uzgriezni NUKR40ANMT INA/FAG
search
  • Kāpurķēžu veltnis ar uzgriezni NUKR40ANMT INA/FAG

Kāpurķēžu veltnis ar uzgriezni NUKR40ANMT

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
102,62 €
AR PVN
4-5 Darba dienas
Kāpurķēžu veltnis ar uzgriezni NUKR40ANMT INA/FAG
IR NOLIKTAVĀ

64788

  • Zīmols
    INA/FAG
  • Norāde
    NUKR40ANMT
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • EAN
    4012802120639
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
NUKR40ANMT
EAN4012802120639
Unit
Each
Long description
Track rollers single and double-row INA/FAG, series NUKR
Details
  • Labyrinth seal
  • Thick-walled outer ring
  • Track is slightly ball-shaped
Application range
  • Packaging machines
  • Transport systems
  • Roll-up doors
  • Roller tensioners
Properties
  • Solid shaft with guide bore
  • With axial guidance via driving discs
  • Roller bearing is fully rolling
  • NMT add-on: equipped with a nut
Benefits
  • Reduces friction and lubricant use
  • Can absorb high radial loads
  • No forces on edges with uneven standing
Inside diameter
18 mm
DOutside diameter
40 mm
CWidth
20 mm
Sealing
ZZ
Bearing model type
Track rollers
Basic radial load static
24800 N
Basic radial load dynamic
19100 N
Rows number
2
Outer ring width
20 mm
d1Shaft diameter
18 mm
B2Shaft length
36.5 mm
IGMounting thread length
19 mm
GMounting thread diameter
M18
Max working temperature
140 °C
Min working temperature
-30 °C
Regreasable
Yes
Weight
0.298 kg
Original number equivalent
NUKR40-A-NMT
BTotal length
58 mm
Mounting thread pitch
1.50 mm
