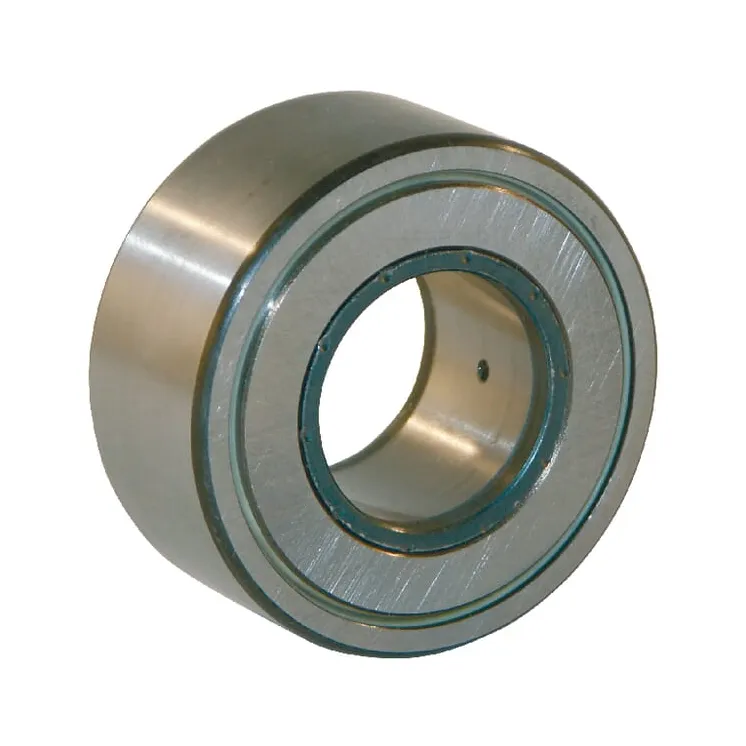

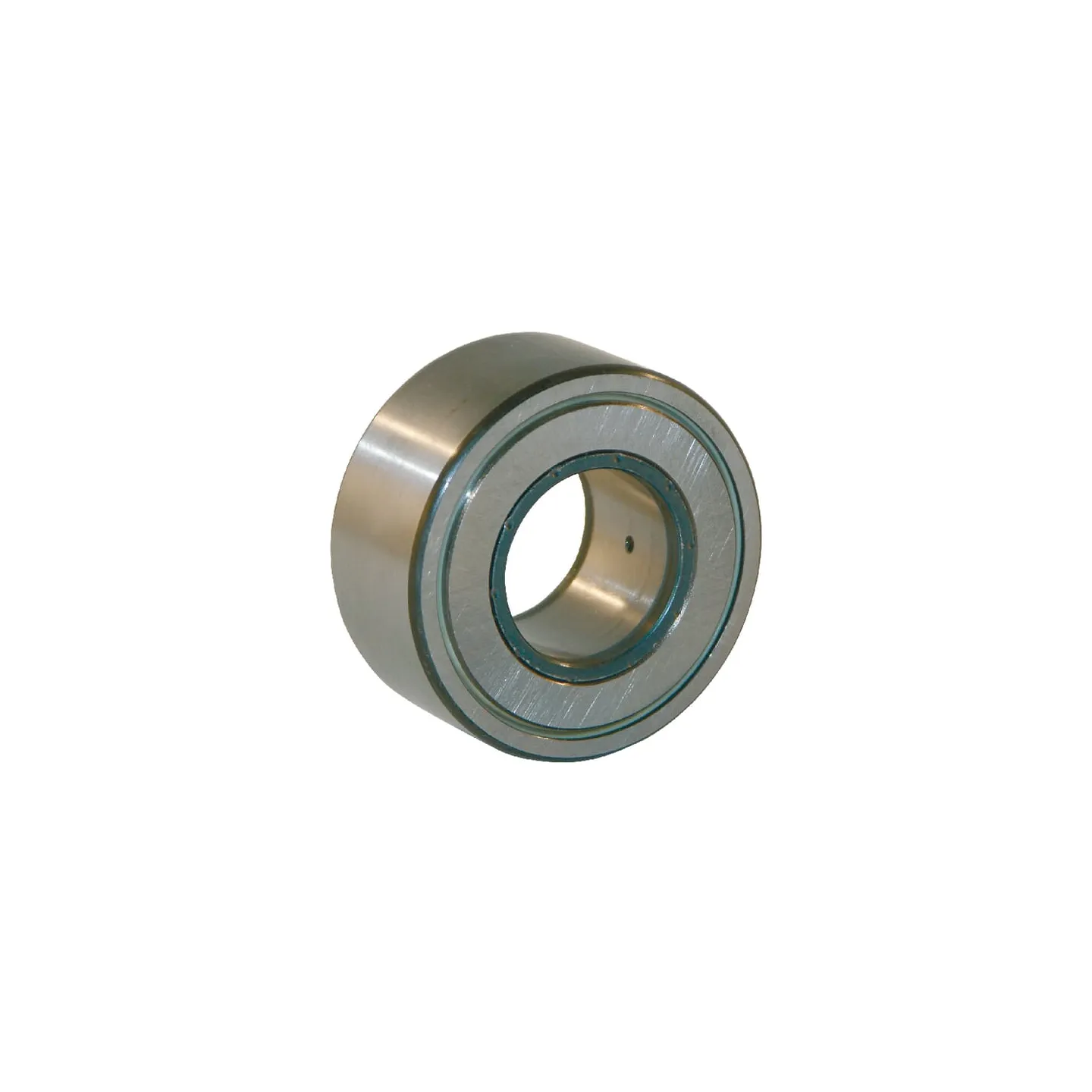

Kāpurķēžu rullīšu gultnis NATR15PPA

Name: Kāpurķēžu rullīšu gultnis NATR15PPA
Brand: INA/FAG
SKU: NATR15PPA
Price: 49.57 EUR
Availability: BackOrder

Apmaksas iespējas

49,57 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis NATR15PPA INA/FAG

Uz pasūtījumu

ID: 64801

Apraksts

Part number	NATR15PPA
EAN	4012802420272
Unit	Each
Long description	Track rollers SKF, series NATR .. PP
Details	Sealed on both sides by axially movable three-level plastic seal Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc
Benefits	Reduces friction and lubricant use Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	15 mm
DOutside diameter	35 mm
BWidth	19 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	14500 N
Basic radial load dynamic	9700 N
Rows number	1
Outer ring width	18 mm
Max working temperature	100 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.095 kg
Original number equivalent	NATR15-PP-A
