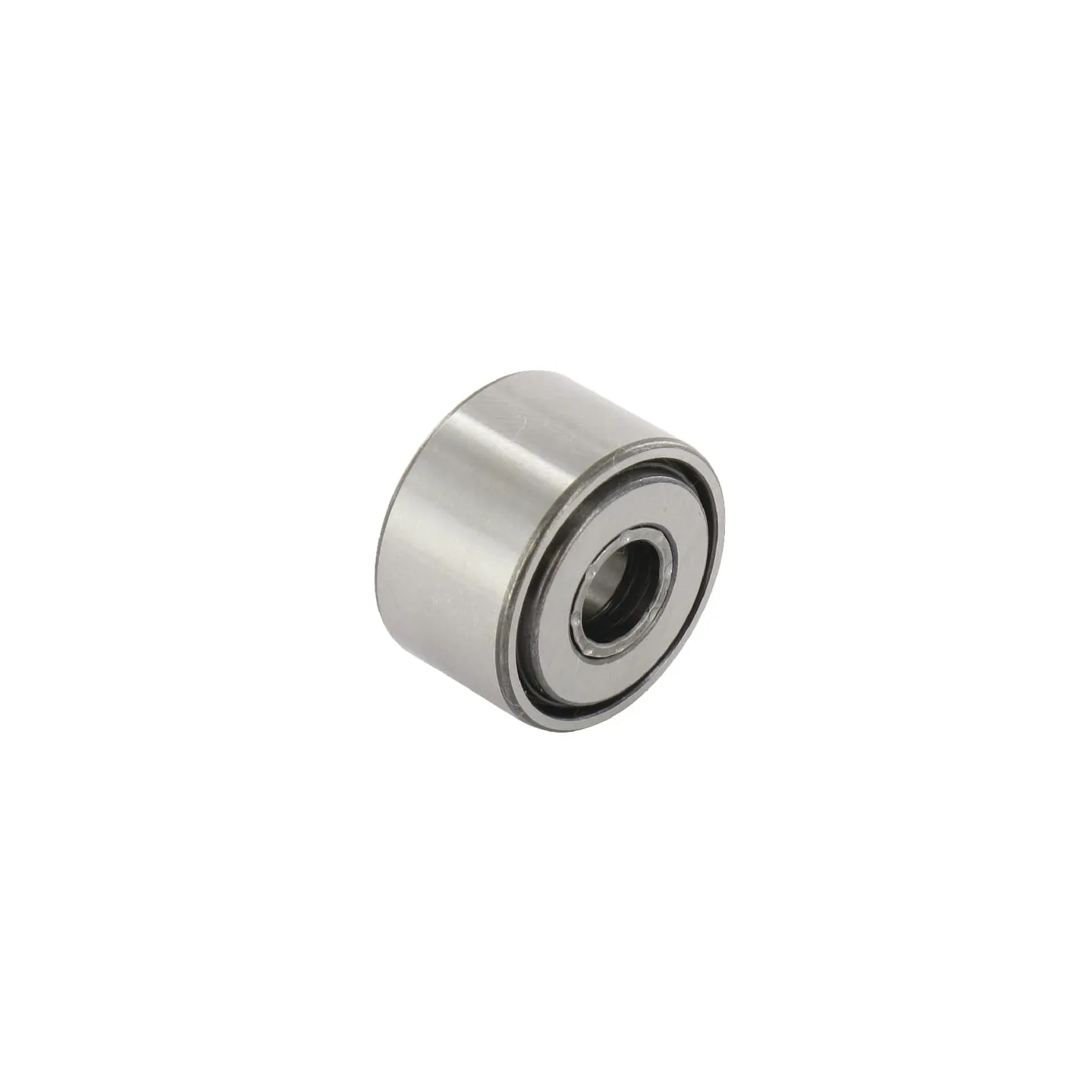

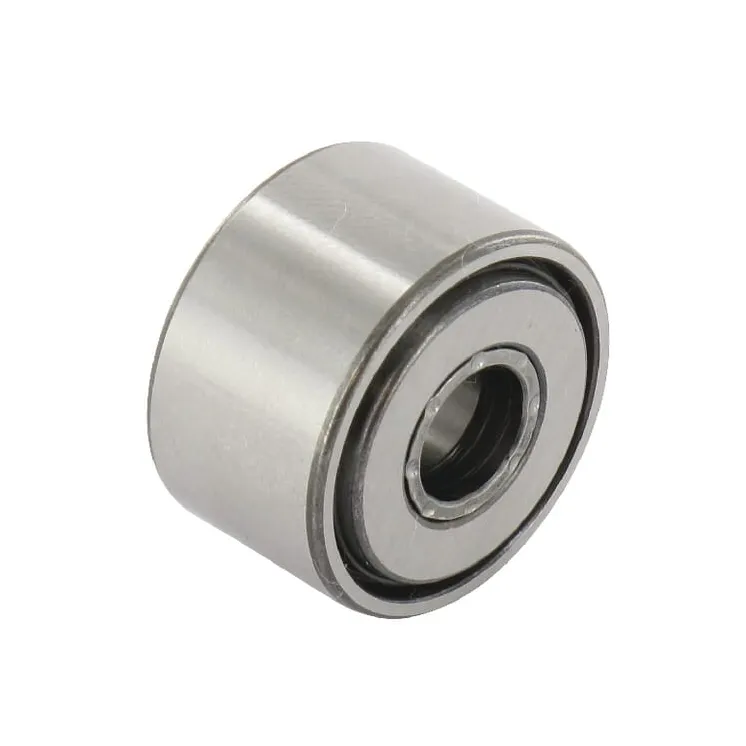

Kāpurķēžu rullīšu gultnis NATR8XPPA

Name: Kāpurķēžu rullīšu gultnis NATR8XPPA
Brand: INA/FAG
SKU: NATR8XPPA
Price: 37.55 EUR
Availability: InStock

Apmaksas iespējas

37,55 €

AR PVN

4-5 Darba dienas

Kāpurķēžu rullīšu gultnis NATR8XPPA INA/FAG

IR NOLIKTAVĀ

ID: 64812

Apraksts

Part number	NATR8XPPA
EAN	4012802428131
Unit	Each
Long description	Track rollers SKF, series NATR .. PP
Details	Sealed on both sides by axially movable three-level plastic seal Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc
Benefits	Reduces friction and lubricant use Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	8 mm
DOutside diameter	24 mm
BWidth	15 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	6700 N
Basic radial load dynamic	5500 N
Rows number	1
Outer ring width	14 mm
Max working temperature	100 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.03778 kg
Original number equivalent	NATR8-X-PP-A
