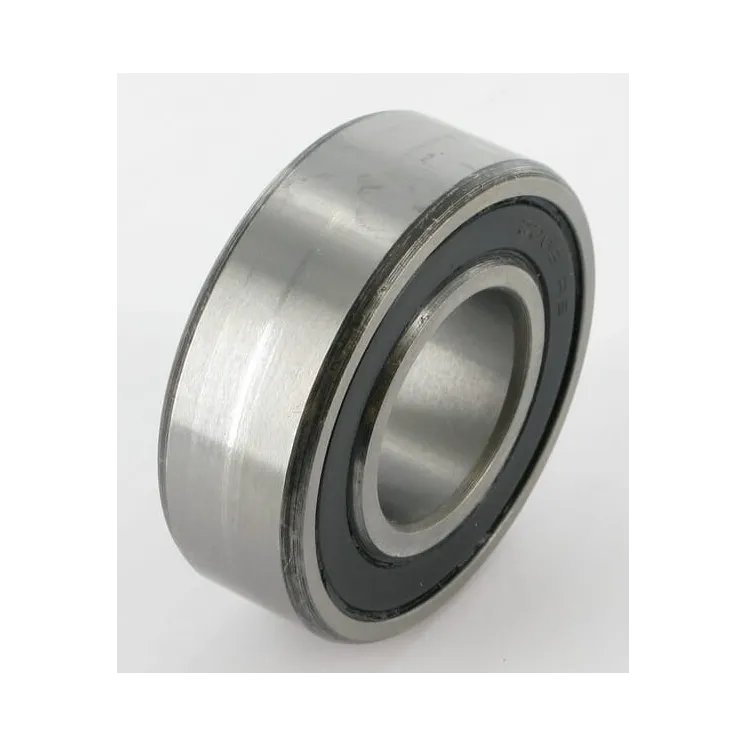

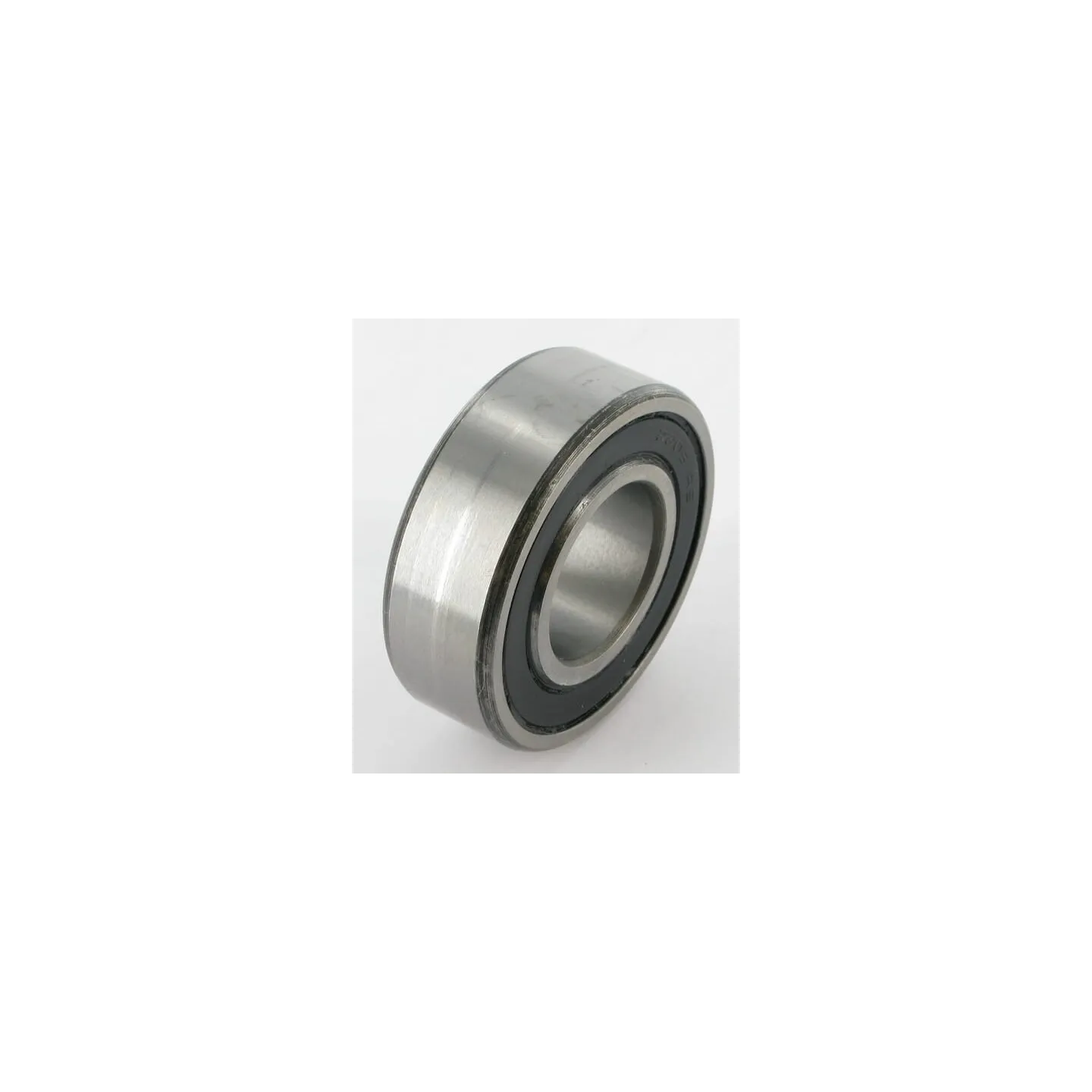

Kāpurķēžu rullīšu gultnis NA2282RSR

Name: Kāpurķēžu rullīšu gultnis NA2282RSR
Brand: INA/FAG
SKU: NA2282RSR
Price: 28.51 EUR
Availability: BackOrder

Apmaksas iespējas

28,51 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis NA2282RSR INA/FAG

Uz pasūtījumu

ID: 64819

Apraksts

Part number	NA2282RSR
EAN	4012802697841
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series NA ..
Details	Low-friction steel seal
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Single or two-row arrangements with especially thick-walled outer rings Absorb high radial loads and axial loads in both directions
Technical info	Outer ring of lateral surface is annular (R500) Temperature range: -30°C to +140°C Cage is full complement With axial guidance via driving disc
dInside diameter	8 mm
DOutside diameter	24 mm
BWidth	12 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	4300 N
Basic radial load dynamic	4100 N
Rows number	1
COuter ring width	11.8 mm
Max working temperature	120 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.032 kg
Original number equivalent	NA22/8-2RSR
