Kāpurķēžu rullīšu gultnis NATV12XPPA

Name: Kāpurķēžu rullīšu gultnis NATV12XPPA
Brand: INA/FAG
SKU: NATV12XPPA
Price: 52.33 EUR
Availability: BackOrder

Apmaksas iespējas

52,33 €

AR PVN

Pēc pieprasījuma

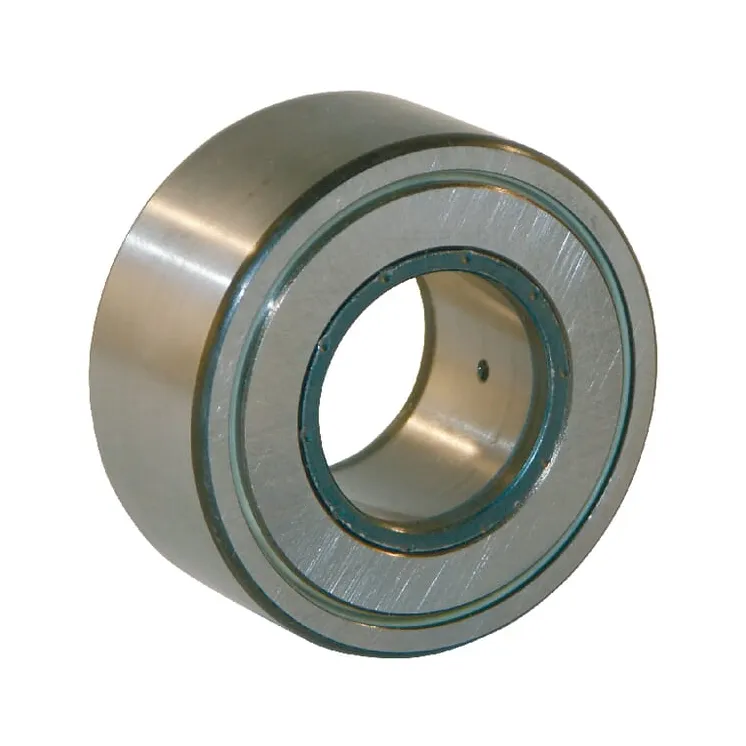

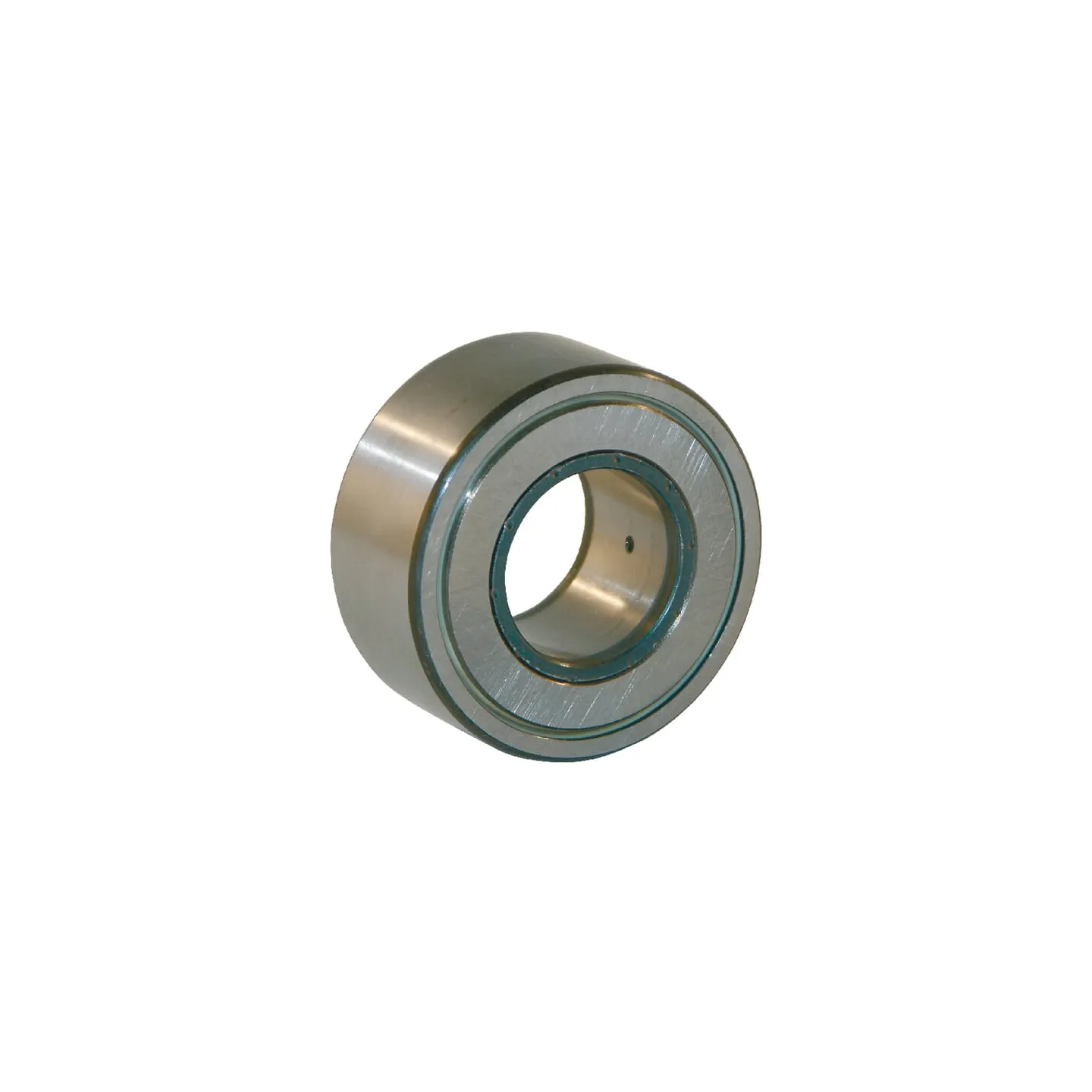

Kāpurķēžu rullīšu gultnis NATV12XPPA INA/FAG

Uz pasūtījumu

ID: 64822

Apraksts

Part number	NATV12XPPA
EAN	4012802414868
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series NATV ..
Details	Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	With axial guidance via driving disc Fully needle shaped
Benefits	Can absorb high radial loads No forces on edges with uneven standing
dInside diameter	12 mm
DOutside diameter	32 mm
BWidth	15 mm
Sealing	2RS
Bearing model type	Track rollers
Basic radial load static	15900 N
Basic radial load dynamic	9600 N
Rows number	1
Outer ring width	14 mm
Max working temperature	100 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.06727 kg
Original number equivalent	NATV12-X-PP-A
