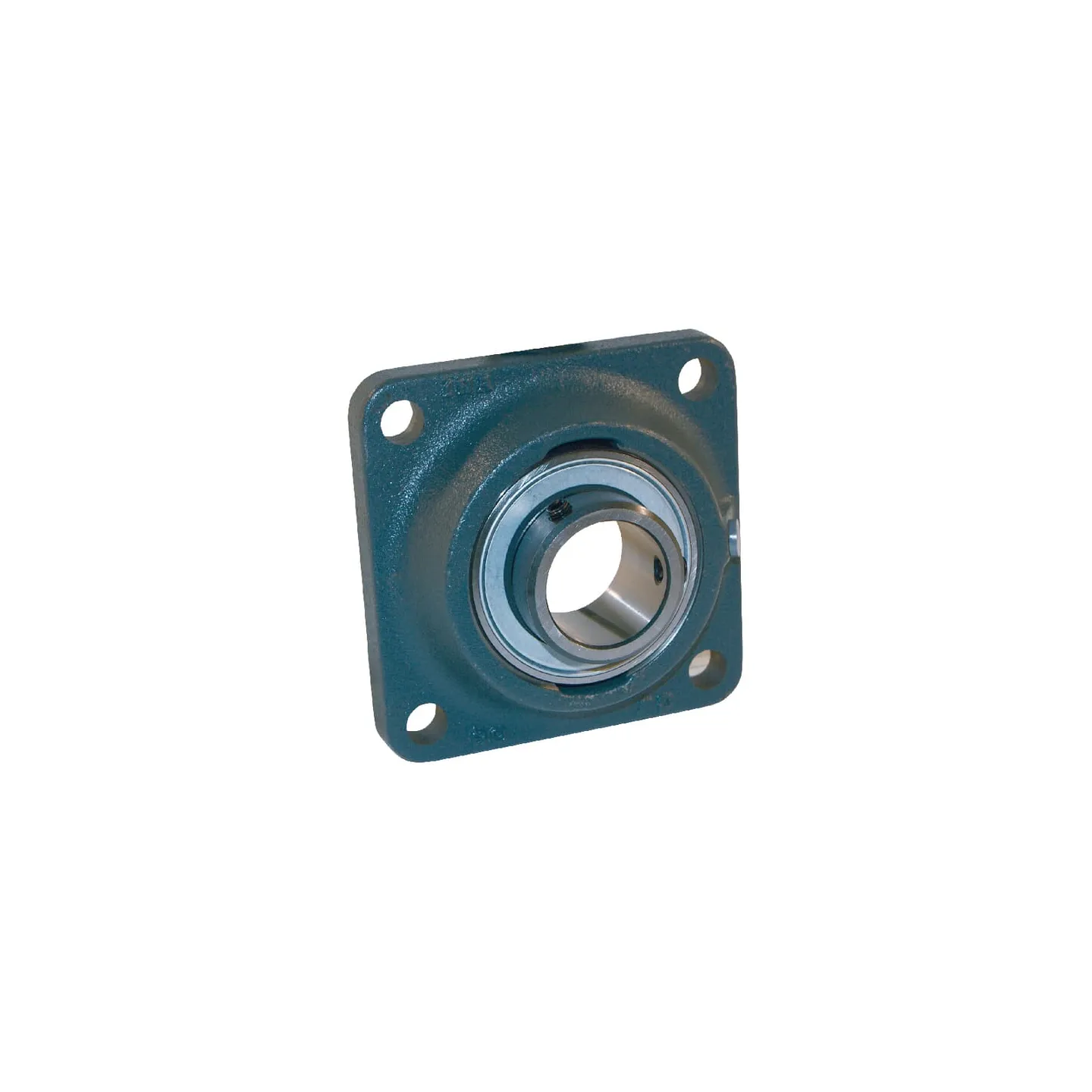

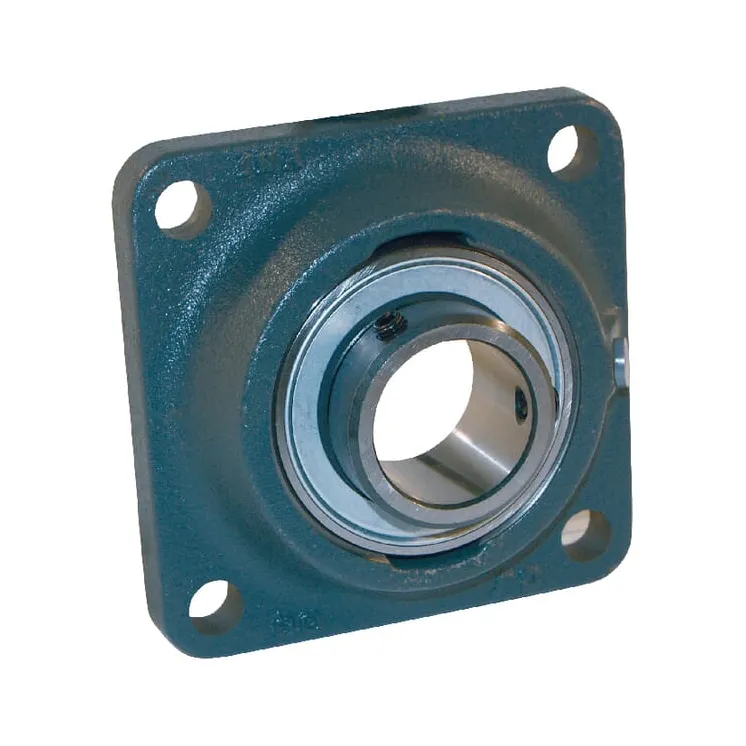

Korpuss PCJY PCJY40

Name: Korpuss PCJY PCJY40
Brand: INA/FAG
SKU: PCJY40
Price: 63.6 EUR
Availability: InStock

Apmaksas iespējas

63,60 €

AR PVN

4-5 Darba dienas

Korpuss PCJY PCJY40 INA/FAG

IR NOLIKTAVĀ

ID: 64829

Apraksts

Part number	PCJY40
EAN	4012802824186
Unit	Each
Properties	• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	40 mm
ATotal length	130 mm
Housing width	130 mm
UTotal height	52.95 mm
Total width	39.5 mm
THousing height	34.5 mm
LBearing inner ring width	39.5 mm
CFlange thickness	11 mm
Bearing balls distance to locking side end	24 mm
Mounting holes distance	101.5 mm
Grease nipple thread diameter	M6
Weight	1.79 kg
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Original number equivalent	PCJY40-N
