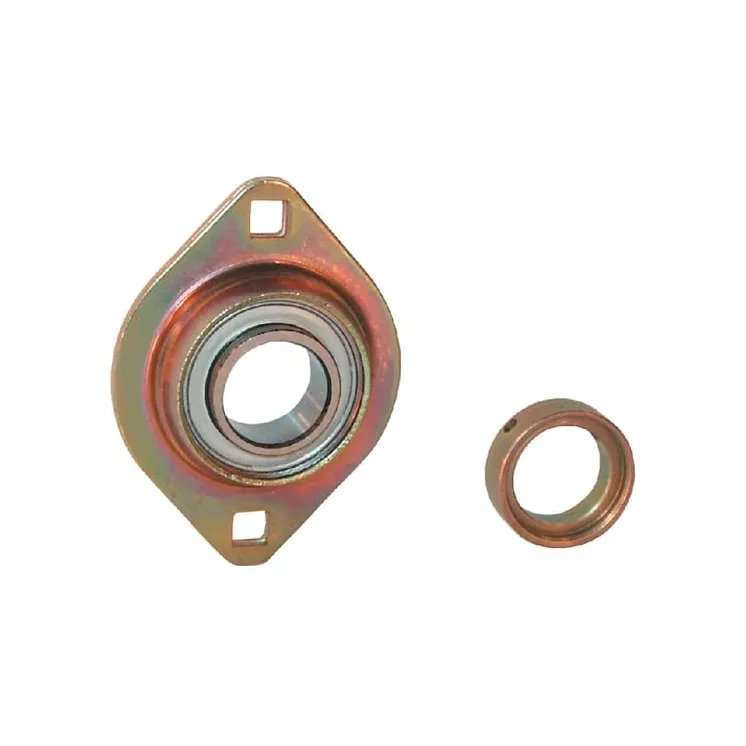

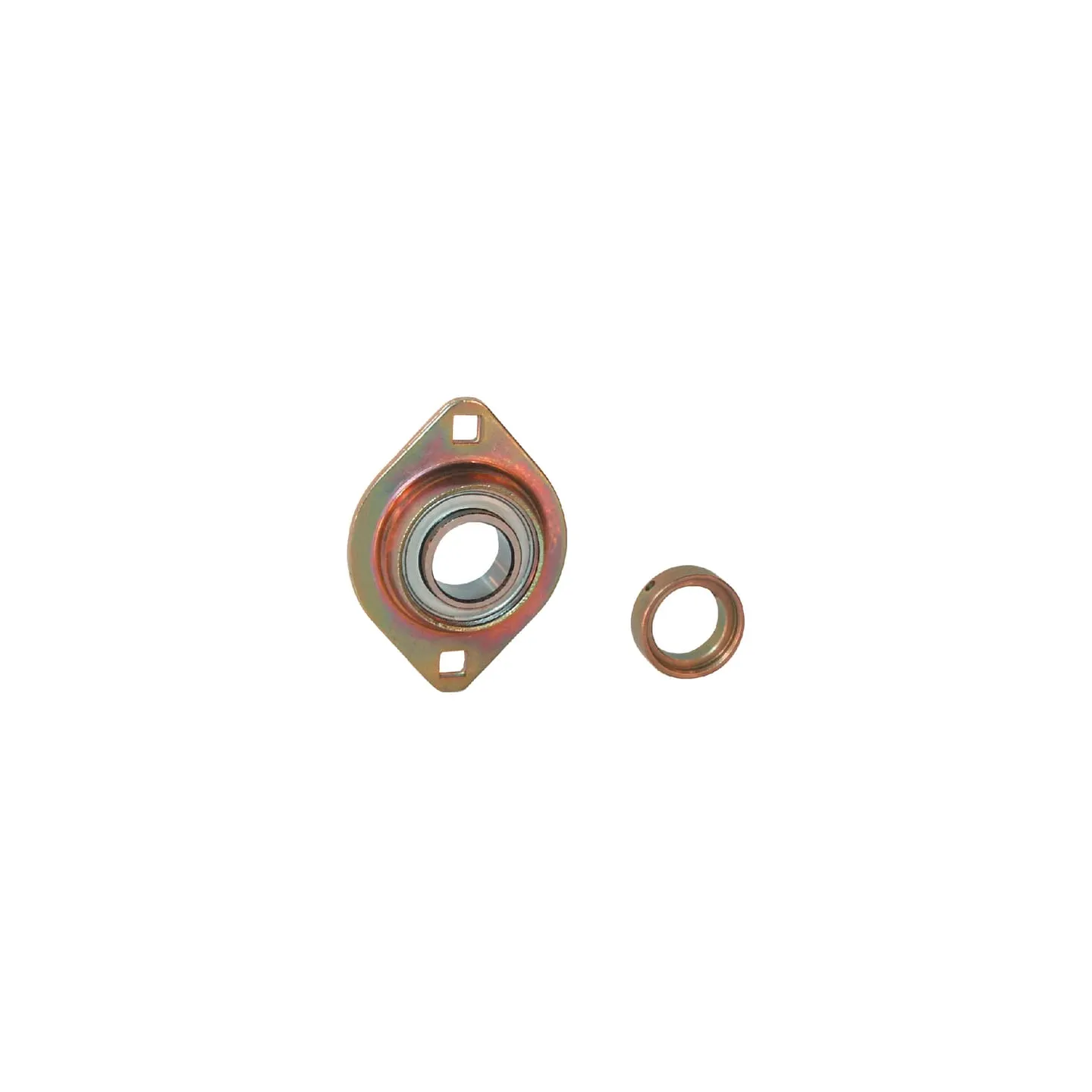

Korpuss PCSLT PCSLT20

Name: Korpuss PCSLT PCSLT20
Brand: INA/FAG
SKU: PCSLT20
Price: 36.74 EUR
Availability: InStock

Apmaksas iespējas

36,74 €

AR PVN

4-5 Darba dienas

Korpuss PCSLT PCSLT20 INA/FAG

IR NOLIKTAVĀ

ID: 64834

Apraksts

Part number	PCSLT20
EAN	4012802820119
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Housing type	Oval flange
dBearing inside diameter	20 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
BTotal length	66 mm
UHousing width	90.5 mm
UTotal height	26.1 mm
THousing height	14 mm
L*Bearing inner ring width	24.6 mm
Locking ring outside diameter	30 mm
PBearing balls distance to mounting surface	7.5 mm
Mounting holes distance	71.4 mm
KMounting holes length	8.7 mm
Grease nipple thread diameter	M6
Weight	0.2 kg
Basic radial load static	5000 N
Basic radial load dynamic	9400 N
Original number equivalent	PCSLT20
