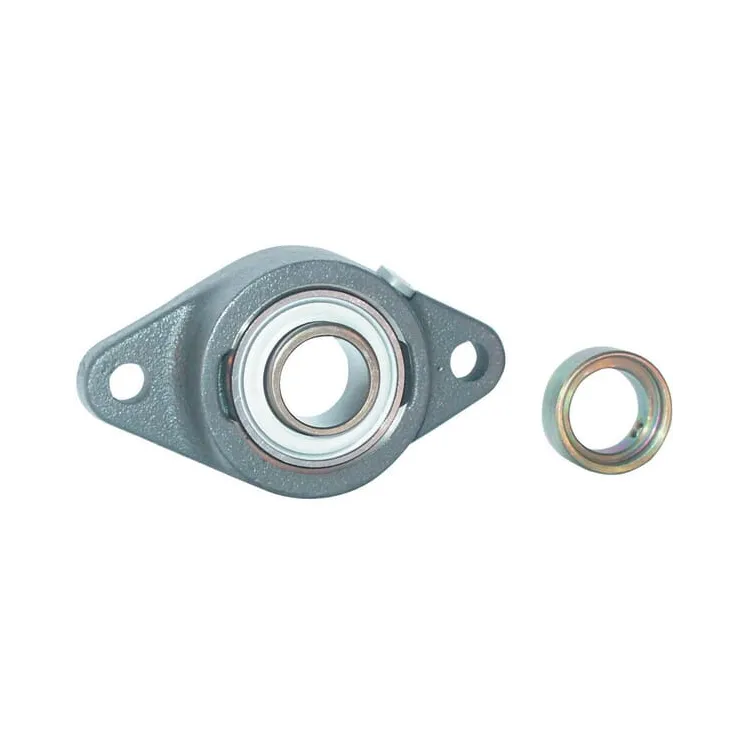

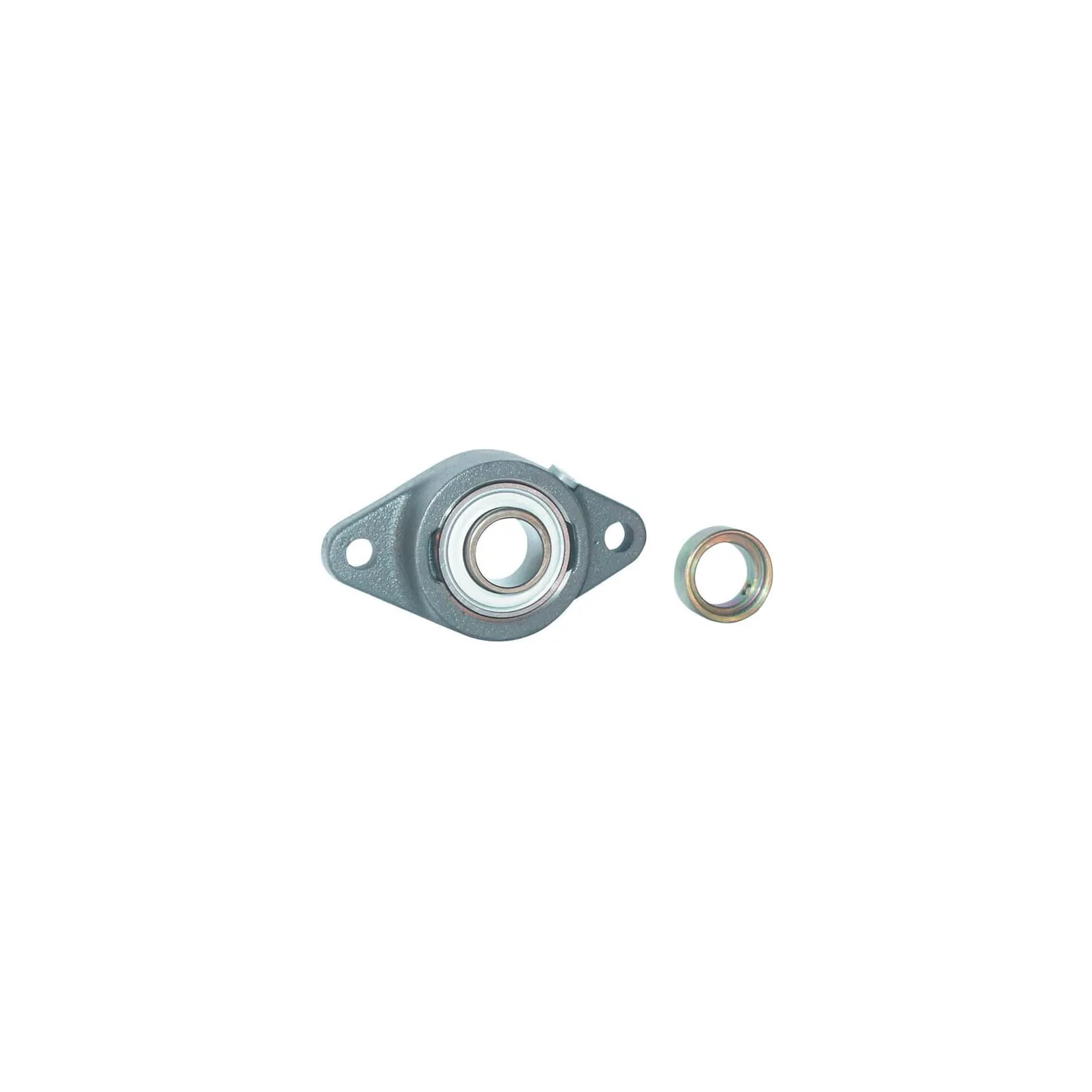

Korpuss PCJT PCJT50

Name: Korpuss PCJT PCJT50
Brand: INA/FAG
SKU: PCJT50
Price: 96.81 EUR
Availability: InStock

Apmaksas iespējas

96,81 €

AR PVN

4-5 Darba dienas

Korpuss PCJT PCJT50 INA/FAG

IR NOLIKTAVĀ

ID: 64841

Apraksts

Part number	PCJT50
EAN	4054372957833
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	50 mm
Consists of	Bearing block Clamp ring
Total length	116 mm
UHousing width	60.7 mm
UTotal height	190 mm
ATotal width	116 mm
THousing height	39 mm
L*Bearing inner ring width	43.7 mm
Locking ring outside diameter	69 mm
Bearing balls distance to locking side end	28 mm
MMounting holes distance	157 mm
KMounting holes diameter	18 mm
Grease nipple thread diameter	M6
Weight	1.97 kg
Basic radial load static	23200 N
Basic radial load dynamic	37500 N
Original number equivalent	PCJT50-N
