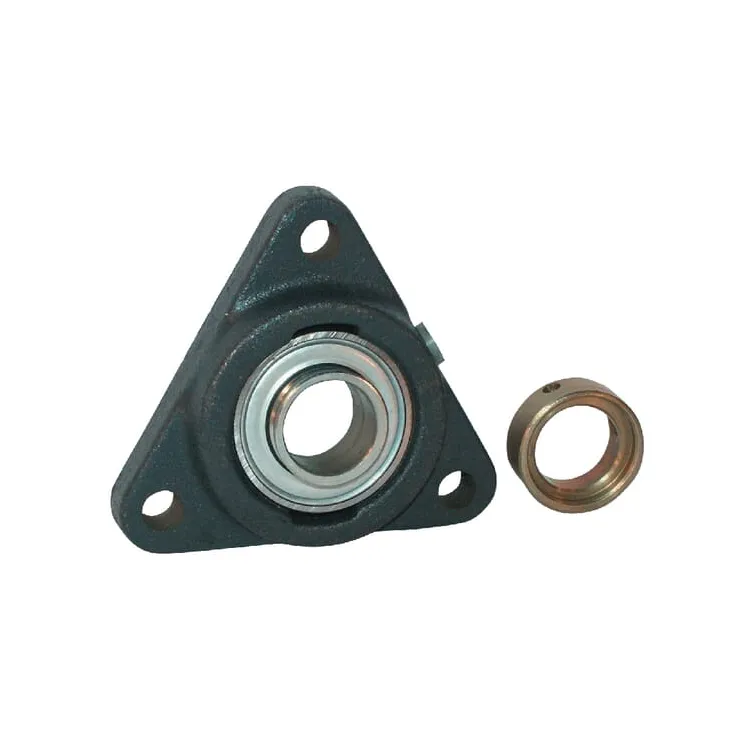

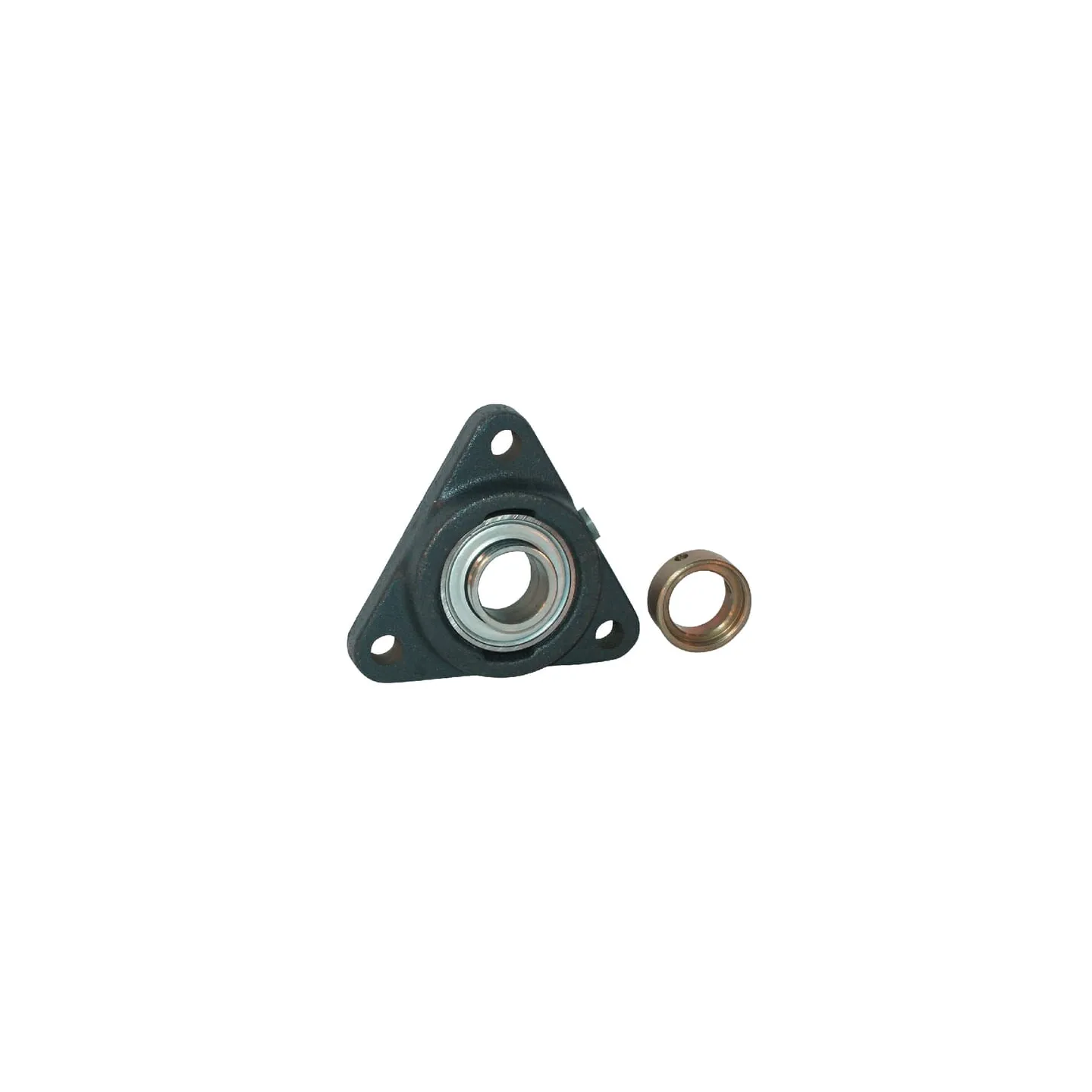

Korpuss PCFTR PCFTR35

Name: Korpuss PCFTR PCFTR35
Brand: INA/FAG
SKU: PCFTR35
Price: 71.85 EUR
Availability: InStock

Apmaksas iespējas

71,85 €

AR PVN

4-5 Darba dienas

Korpuss PCFTR PCFTR35 INA/FAG

IR NOLIKTAVĀ

ID: 64852

Apraksts

Part number	PCFTR35
EAN	4012802790993
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Triangular flange
dBearing inside diameter	35 mm
Consists of	• Bearing block Clamp ring
Total length	128 mm
AHousing width	128 mm
UTotal height	45.1 mm
THousing height	27 mm
L*Bearing inner ring width	38.9 mm
Locking ring outside diameter	51 mm
BShaft vertical distance	48 mm
PBearing balls distance to mounting surface	15.6 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.28 kg
Basic radial load static	15300 N
Basic radial load dynamic	27500 N
Original number equivalent	PCFTR35
