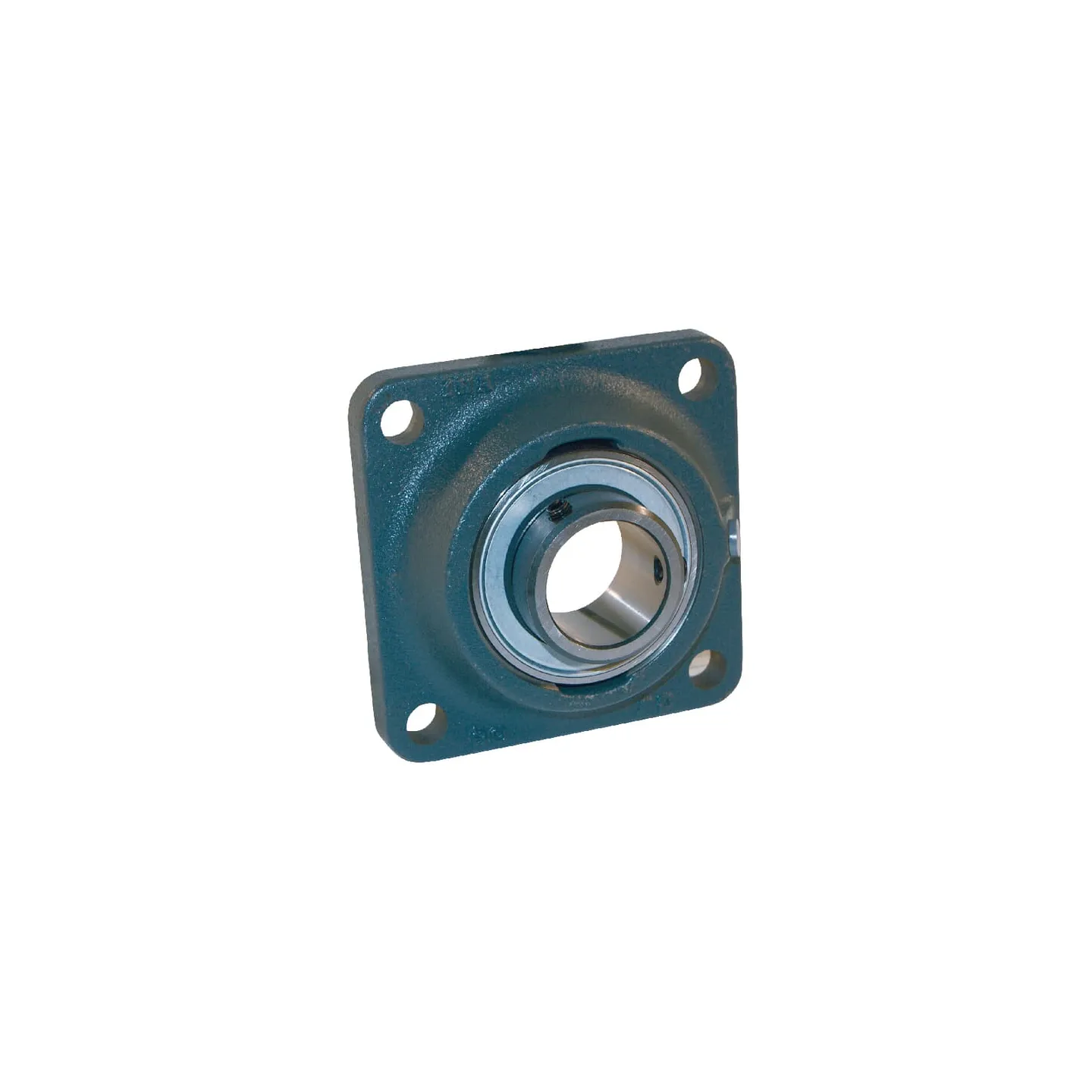

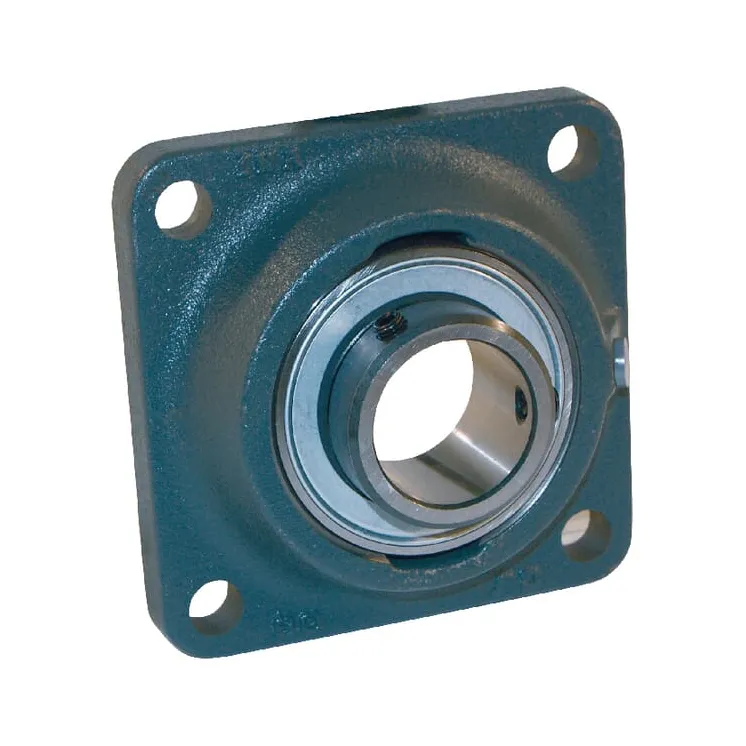

Kvadrātveida gultņu bloks, PCJY PCJY45

Name: Kvadrātveida gultņu bloks, PCJY PCJY45
Brand: INA/FAG
SKU: PCJY45
Price: 79.06 EUR
Availability: InStock

Apmaksas iespējas

79,06 €

AR PVN

4-5 Darba dienas

Kvadrātveida gultņu bloks, PCJY PCJY45 INA/FAG

IR NOLIKTAVĀ

ID: 64863

Apraksts

Part number	PCJY45
EAN	4054372939549
Unit	Each
Properties	• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	45 mm
ATotal length	137 mm
Housing width	137 mm
UTotal height	54.5 mm
Total width	54.5 mm
THousing height	35 mm
LBearing inner ring width	41.5 mm
CFlange thickness	12 mm
Bearing balls distance to locking side end	24 mm
Mounting holes distance	105 mm
Grease nipple thread diameter	M6
Weight	2.15 kg
Basic radial load static	20400 N
Basic radial load dynamic	34500 N
Original number equivalent	PCJY45
