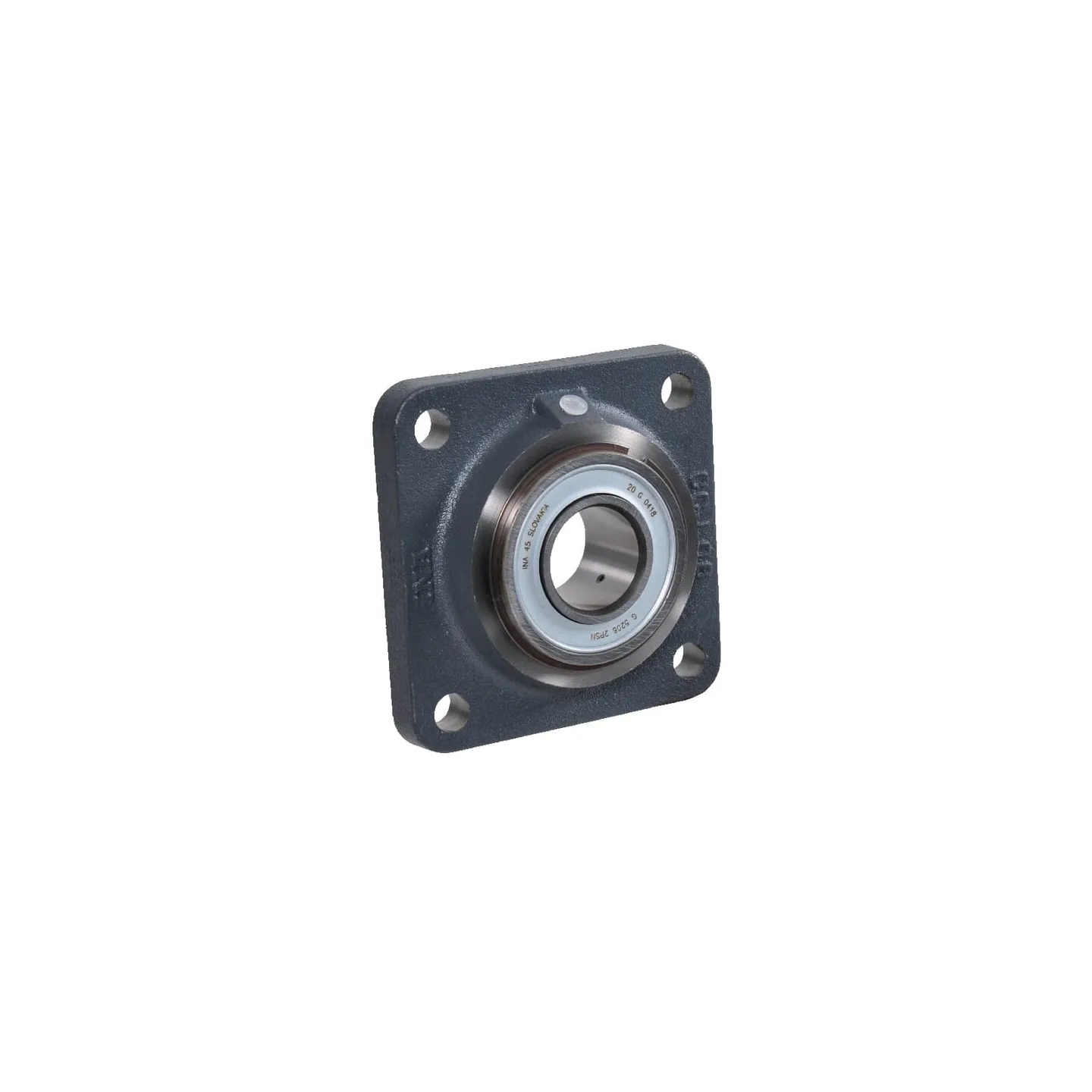

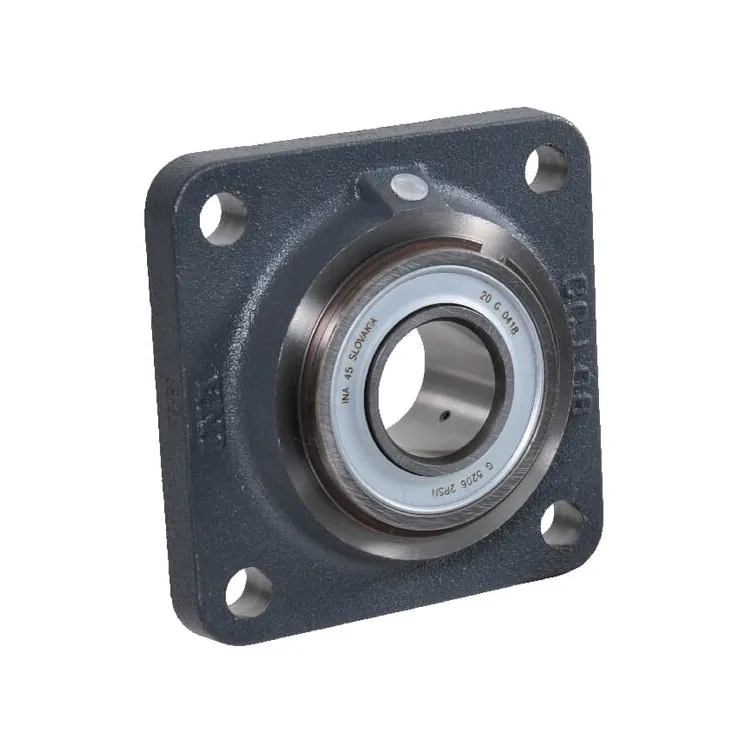

Pilnīgs kvadrātveida atloka gultnis PCCJ30

Name: Pilnīgs kvadrātveida atloka gultnis PCCJ30
Brand: INA/FAG
SKU: PCCJ30
Price: 126.65 EUR
Availability: BackOrder

Apmaksas iespējas

126,65 €

AR PVN

Pēc pieprasījuma

Pilnīgs kvadrātveida atloka gultnis PCCJ30 INA/FAG

Uz pasūtījumu

ID: 64866

Apraksts

Part number	PCCJ30
EAN	4012802808131
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	The inner bearing is a double-row angular contact ball bearing Subsequent lubrication possible Inner bearing is not self-adjusting
Housing type	Square flange
dBearing inside diameter	30 mm
ATotal length	108 mm
Housing width	108 mm
Total height	29.7 mm
Total width	34 mm
THousing height	24 mm
LBearing inner ring width	34 mm
Mounting holes distance	82.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	1.12 kg
Basic radial load static	21400 N
Basic radial load dynamic	30000 N
Original number equivalent	PCCJ30
