Korpuss PCFT PCFT40

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
77,28 €
AR PVN
4-5 Darba dienas
Korpuss PCFT PCFT40 INA/FAG
IR NOLIKTAVĀ

64869

  • Zīmols
    INA/FAG
  • Norāde
    PCFT40
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • EAN
    4012802791327
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
PCFT40
EAN4012802791327
Unit
Each
Long description

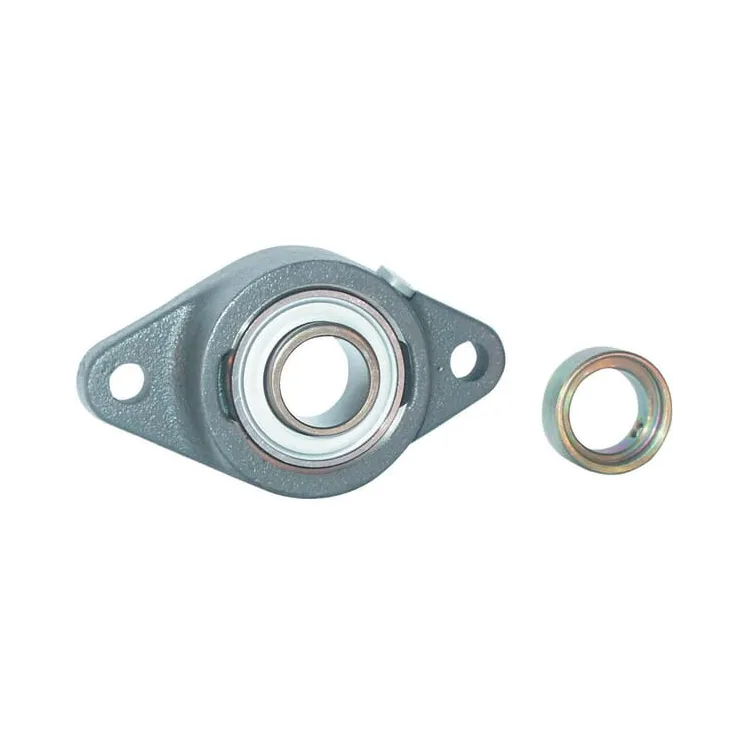

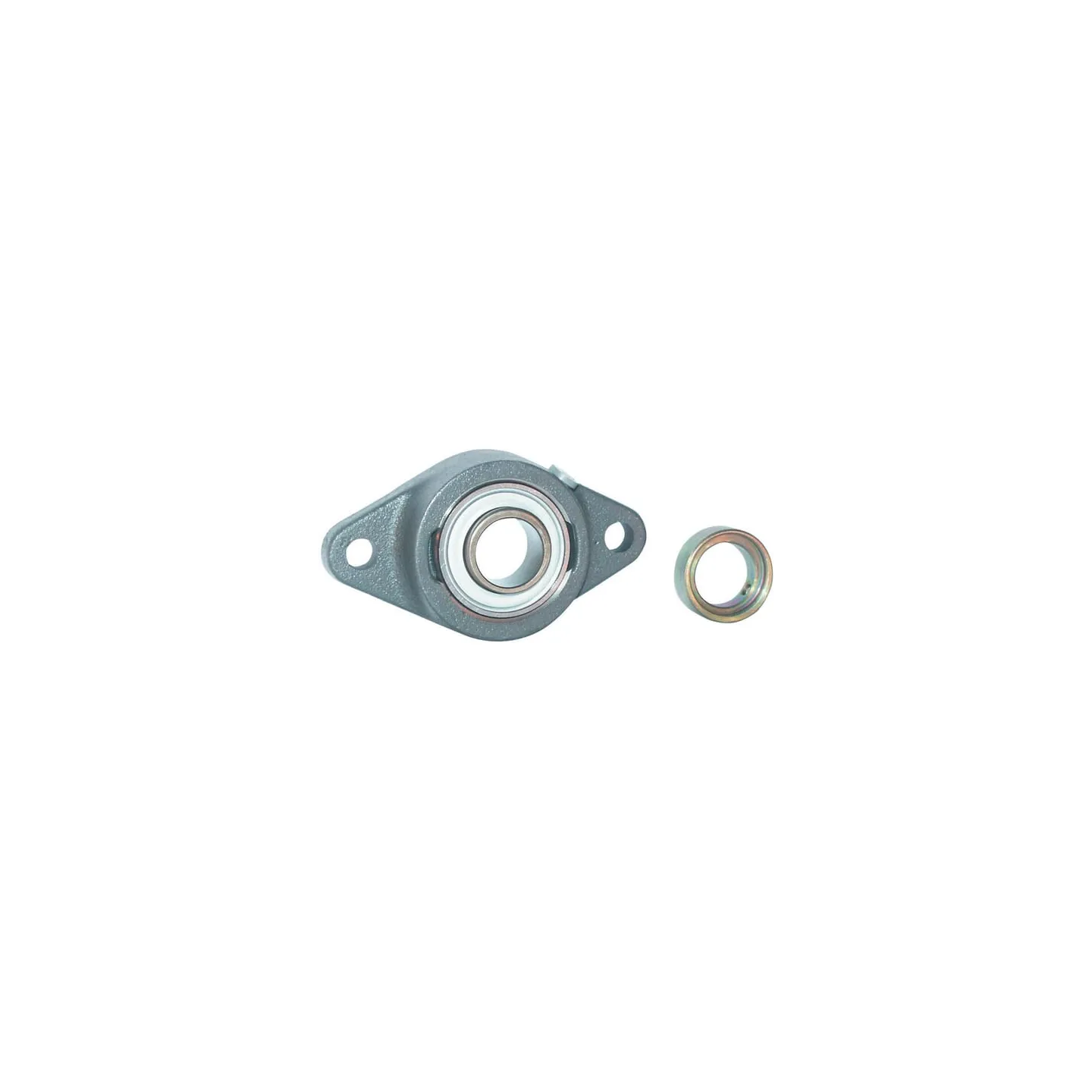

This oval flange bearing block with integrated radial insert bearing is pre-assembled and ready to use. The radial bearing with eccentric locking collar and housing are matched. The flange housing consists of one piece and is resistant to radial and axial loads.
Details
Short design
Pros
  • Small installation space
  • self-aligning
Product details
  • Inner bearing has a one-sided extended inner ring with tightening washer
  • Regreasable
Properties
  • Inner bearing has one-sided extended inner ring with clamp ring
  • Can be subsequently lubricated
Benefits
Low space requirement
Includes
  • Bearing block
  • Tightening washer
Housing type
Oval flange
dBearing inside diameter
40 mm
Consists of
  • • Bearing block
  • Clamp ring
Total length
105 mm
Housing width
172 mm
UTotal height
51 mm
THousing height
28.8 mm
L*Bearing inner ring width
43.8 mm
Locking ring outside diameter
58 mm
PBearing balls distance to mounting surface
18.3 mm
MMounting holes distance
143.5 mm
KMounting holes diameter
14 mm
Grease nipple thread diameter
M6
Weight
1.45 kg
Basic radial load static
19800 N
Basic radial load dynamic
32500 N
Original number equivalent
PCFT40
