Korpuss PCJT PCJT25

Name: Korpuss PCJT PCJT25
Brand: INA/FAG
SKU: PCJT25
Price: 36.51 EUR
Availability: InStock

Apmaksas iespējas

36,51 €

AR PVN

4-5 Darba dienas

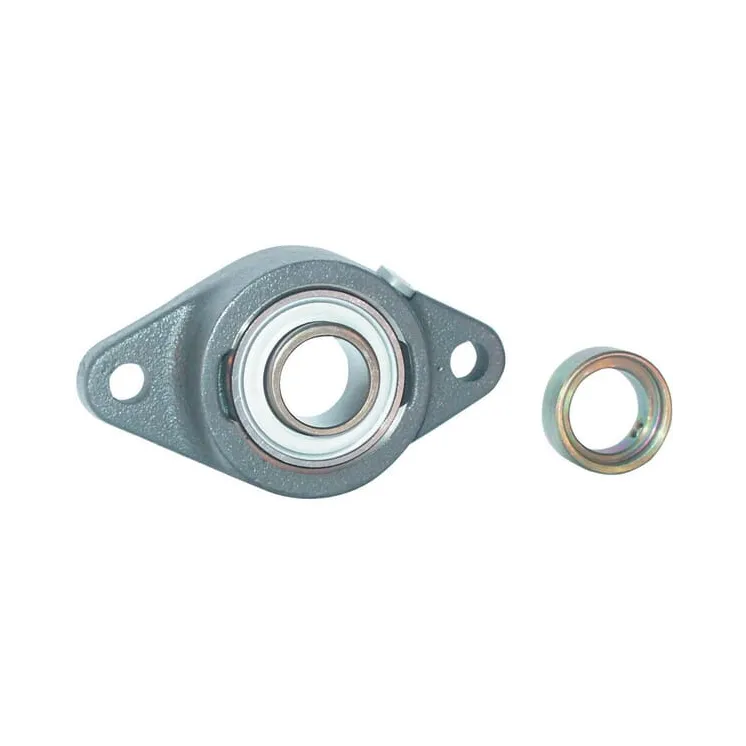

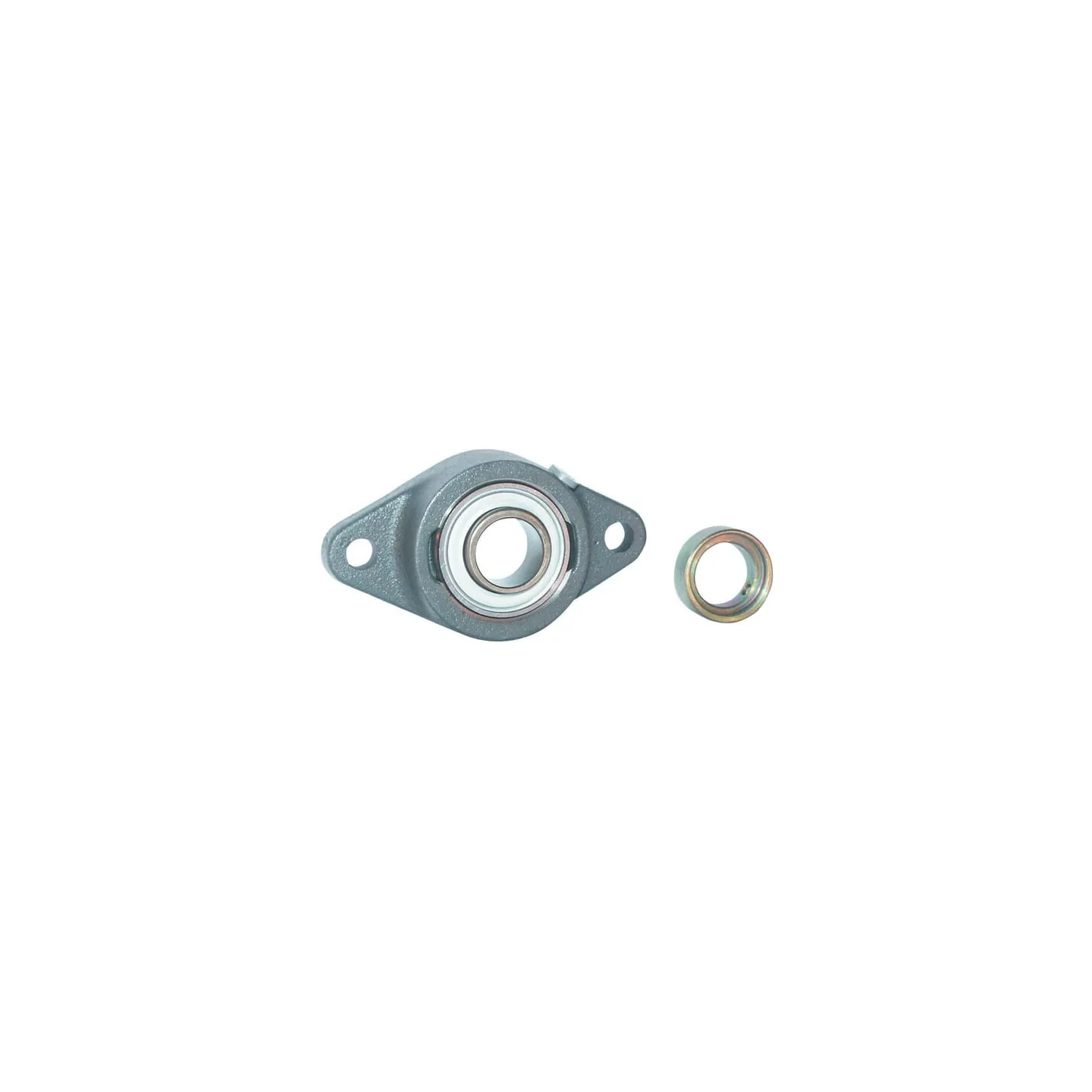

Korpuss PCJT PCJT25 INA/FAG

IR NOLIKTAVĀ

ID: 64873

Apraksts

Part number	PCJT25
EAN	4012802837490
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	25 mm
Consists of	Bearing block Clamp ring
Total length	70 mm
UHousing width	124 mm
UTotal height	42.5 mm
THousing height	29 mm
L*Bearing inner ring width	31 mm
Bearing balls distance to locking side end	19 mm
MMounting holes distance	99 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.58 kg
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
Original number equivalent	PCJT25-N
