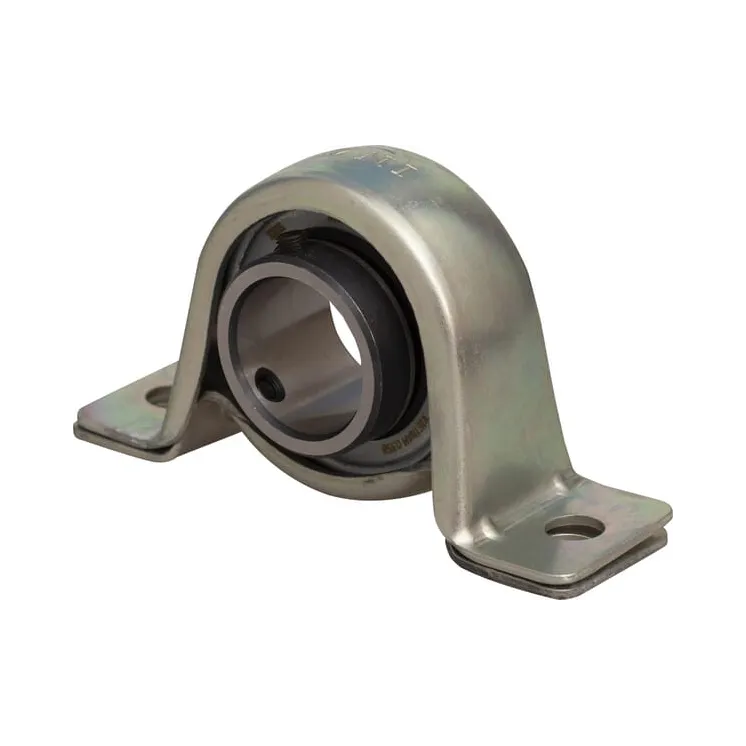

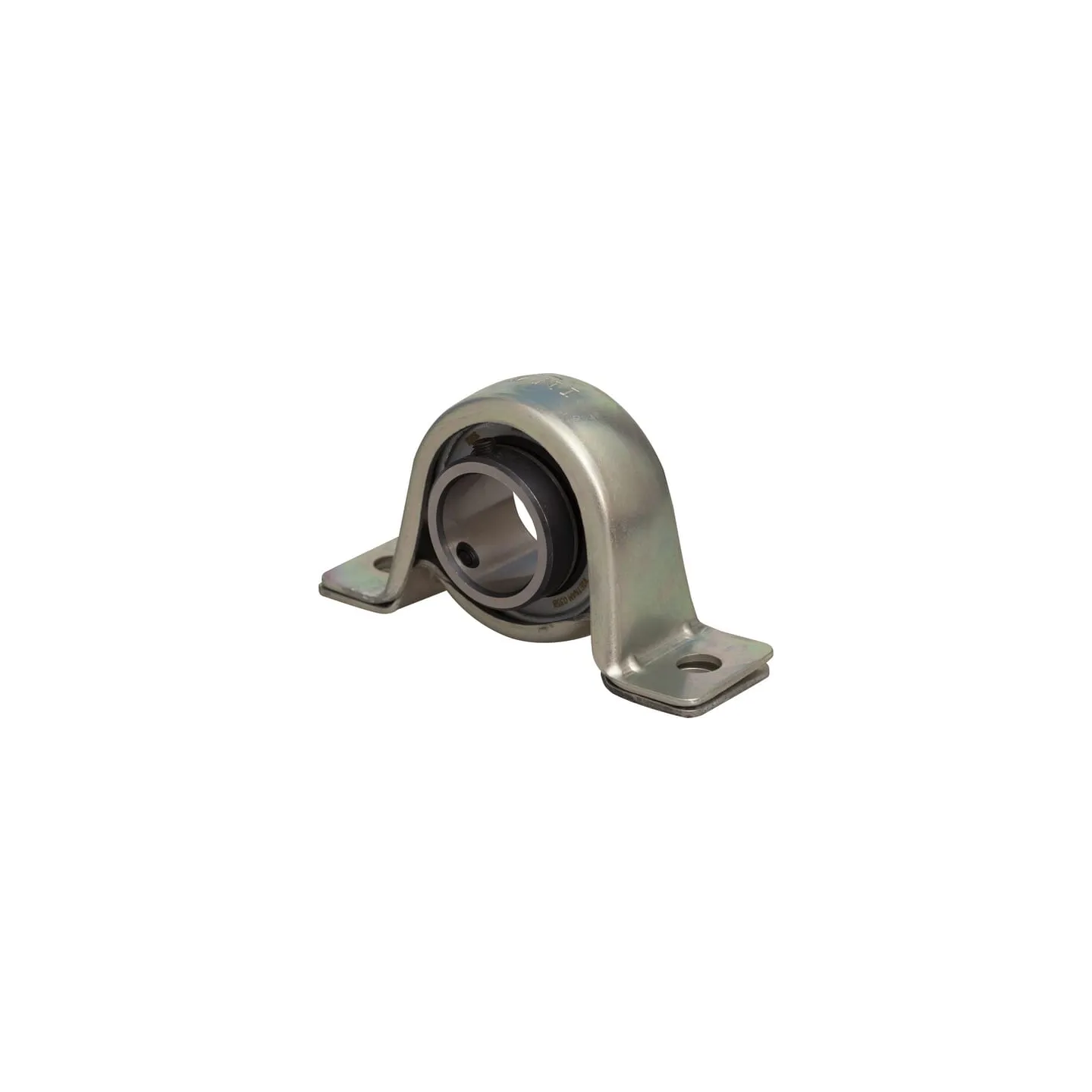

Dzīvojamā vienība PBY PBY15

Name: Dzīvojamā vienība PBY PBY15
Brand: INA/FAG
SKU: PBY15
Price: 30.41 EUR
Availability: InStock

Apmaksas iespējas

30,41 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība PBY PBY15 INA/FAG

IR NOLIKTAVĀ

ID: 64879

Apraksts

Part number	PBY15
EAN	4012802807318
Unit	Each
Technical info	Tendon bearing. Spherical lateral surface of the outer ring. 2 x grubscrews in the inner ring. Inner ring extends. P-seal on one side.
Housing type	Pillow block
Bearing inside diameter	15 mm
WTotal length	85.7 mm
Housing width	25.4 mm
HTotal height	43.2 mm
CFlange thickness	14 mm
AShaft vertical distance	22.2 mm
Mounting holes distance	68 mm
ØKMounting holes diameter	9.5 mm
Weight	0.15 kg
Basic radial load static	4750 N
Basic radial load dynamic	10100 N
Original number equivalent	PBY15
