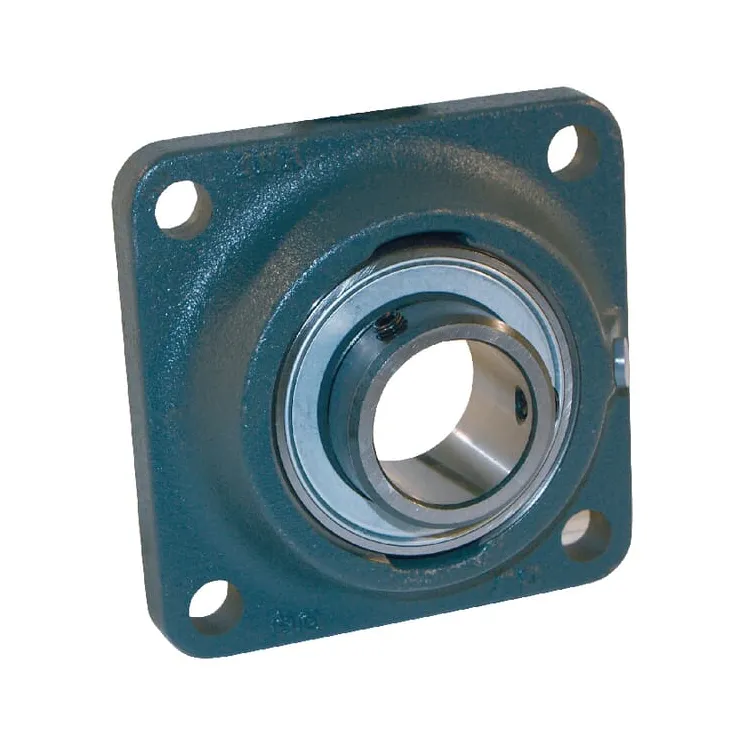

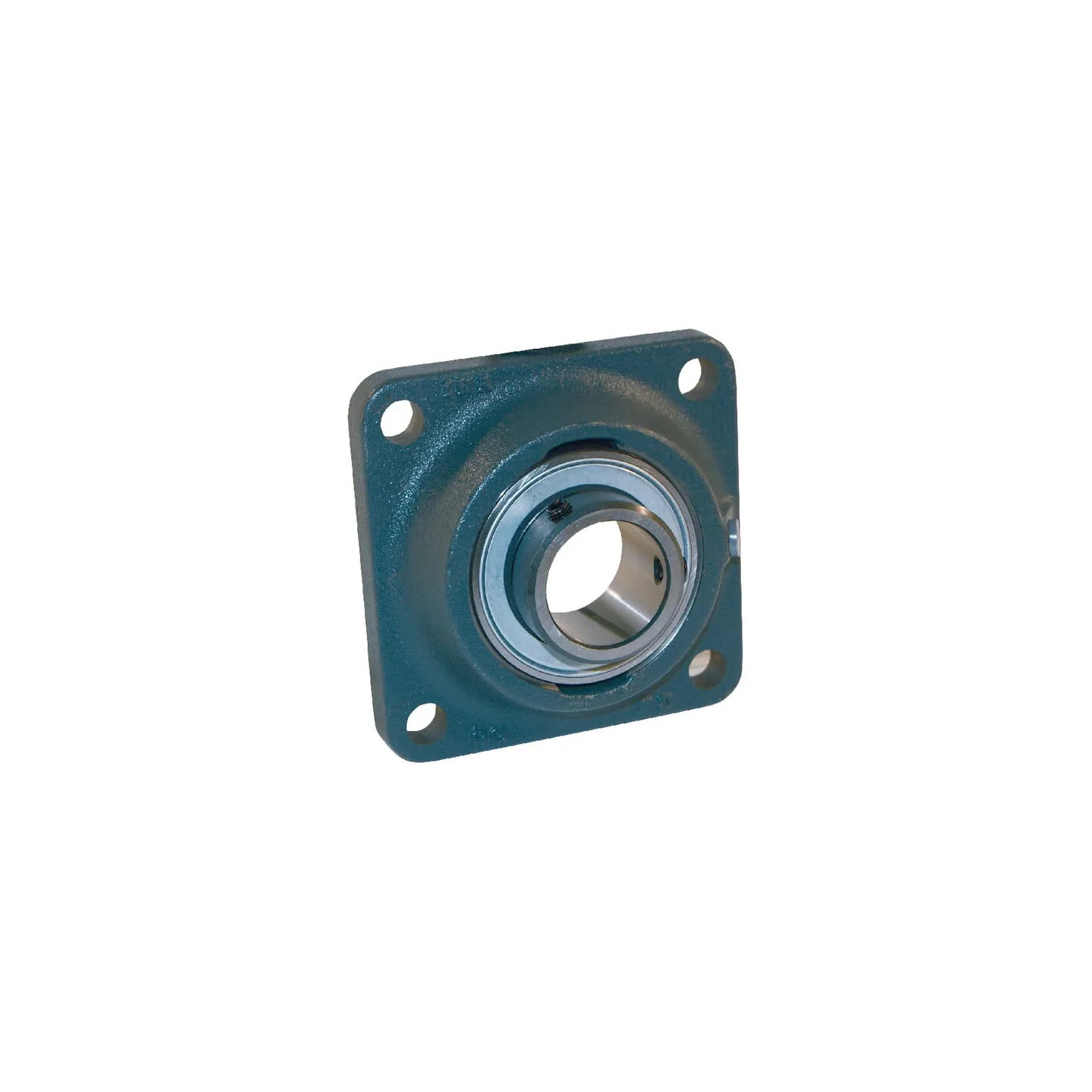

Korpuss PCJY PCJY20

Name: Korpuss PCJY PCJY20
Brand: INA/FAG
SKU: PCJY20
Price: 36.15 EUR
Availability: InStock

Apmaksas iespējas

36,15 €

AR PVN

4-5 Darba dienas

Korpuss PCJY PCJY20 INA/FAG

IR NOLIKTAVĀ

ID: 64882

Apraksts

Part number	PCJY20
EAN	4012802823844
Unit	Each
Properties	• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	20 mm
ATotal length	86 mm
Housing width	86 mm
UTotal height	37 mm
Total width	25 mm
THousing height	29 mm
LBearing inner ring width	25 mm
CFlange thickness	11 mm
Bearing balls distance to locking side end	19 mm
Mounting holes distance	63.5 mm
Grease nipple thread diameter	M6
Weight	0.56 kg
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	PCJY20-N
