| Part number | PCFT20 | |
|---|---|---|
| EAN | 4012802791693 | |
| Unit | Each | |

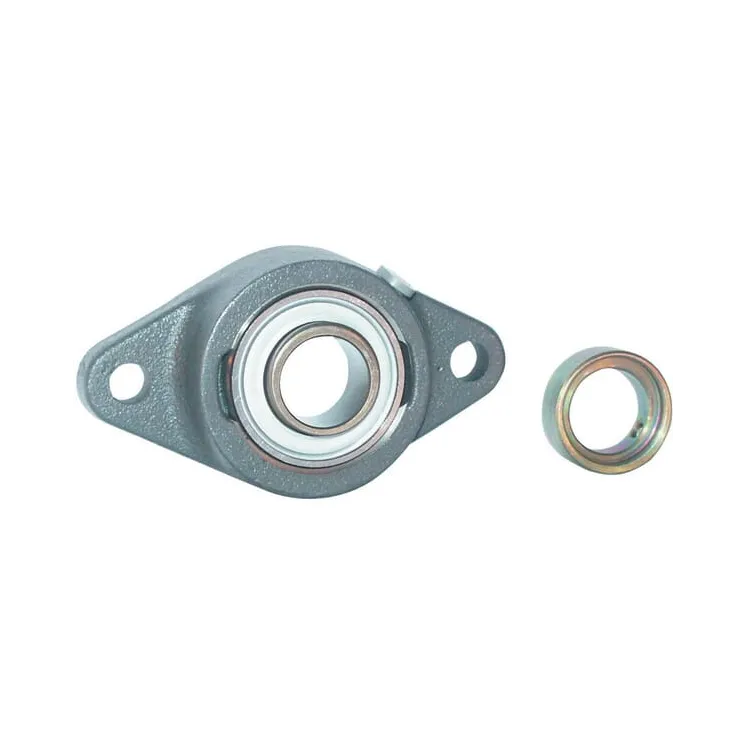

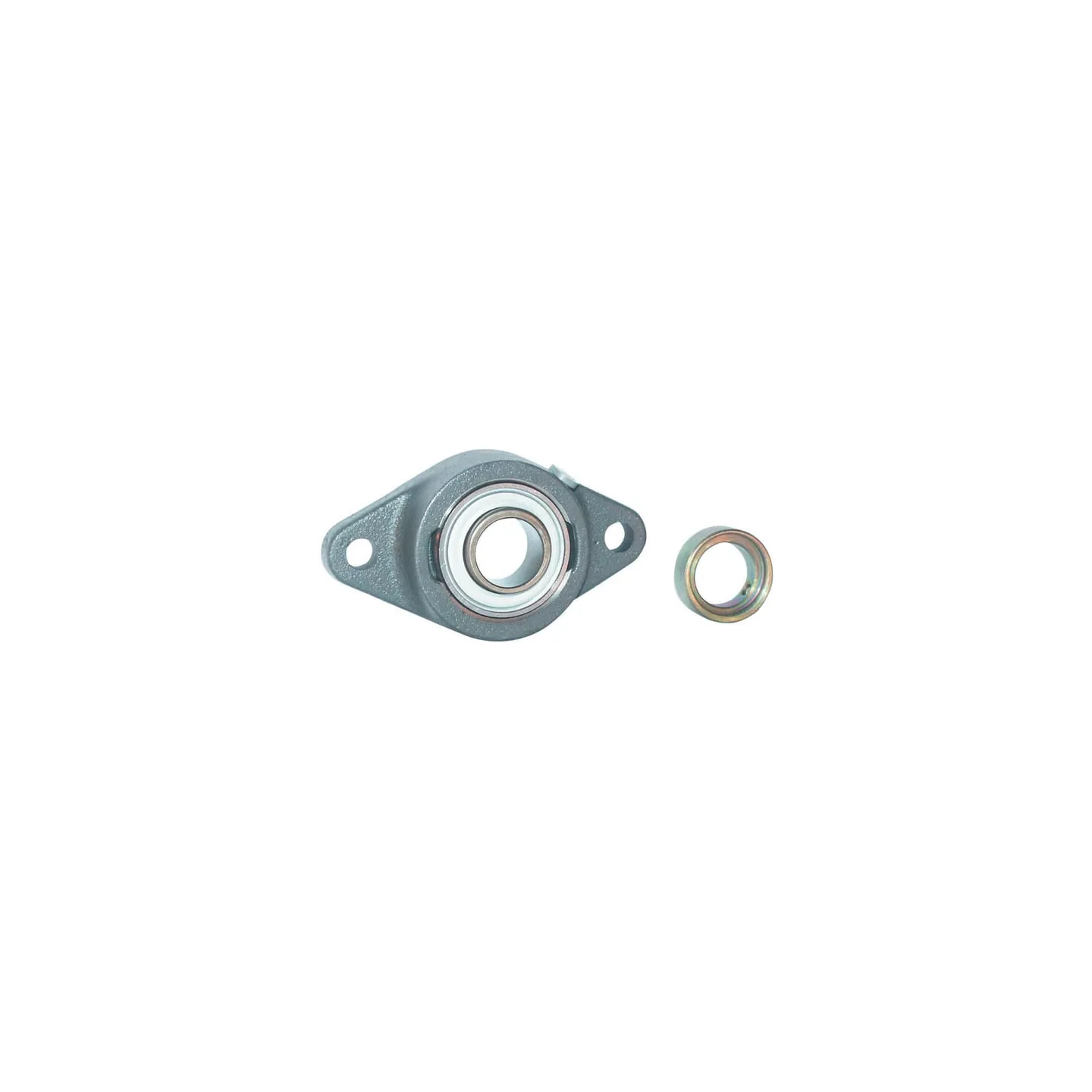

| Long description | This oval flange bearing block with integrated radial insert bearing is pre-assembled and ready to use. The radial bearing with eccentric locking collar and housing are matched. The flange housing consists of one piece and is resistant to radial and axial loads. | |
| Details | Short design | |
| Pros |
| |
| Product details |
| |
| Properties |
| |
| Benefits | Low space requirement | |
| Includes |
| |
| Housing type | Oval flange | |
| dBearing inside diameter | 20 mm | |
| Consists of |
| |
| Total length | 112 mm | |
| Housing width | 61 mm | |
| UTotal height | 34 mm | |
| ATotal width | 34 mm | |
| THousing height | 17.5 mm | |
| L*Bearing inner ring width | 31 mm | |
| Locking ring outside diameter | 33 mm | |
| PBearing balls distance to mounting surface | 10.5 mm | |
| MMounting holes distance | 90 mm | |
| KMounting holes diameter | 11.5 mm | |
| Grease nipple thread diameter | M6 | |
| Basic radial load static | 6600 N | |
| Basic radial load dynamic | 13600 N | |
| Original number equivalent | PCFT20 |
