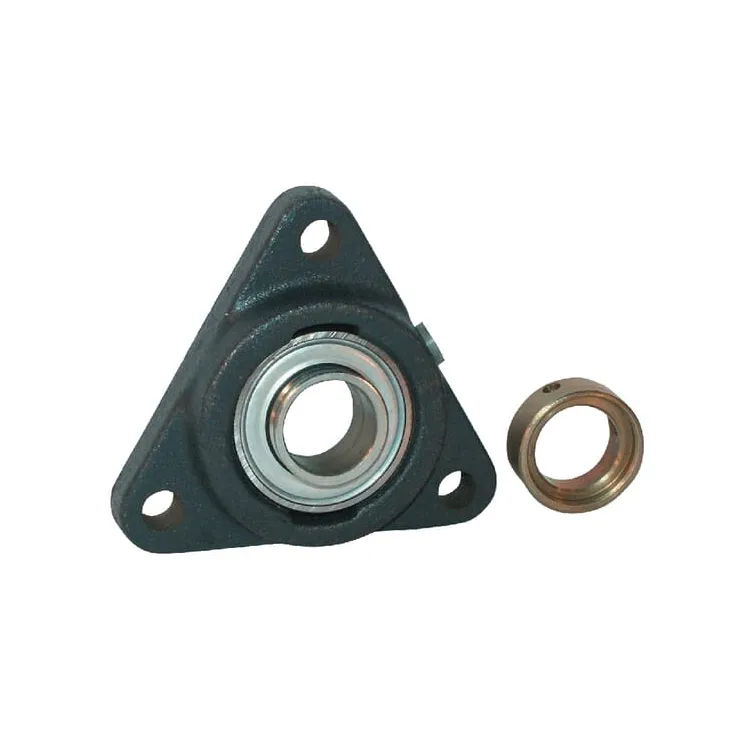

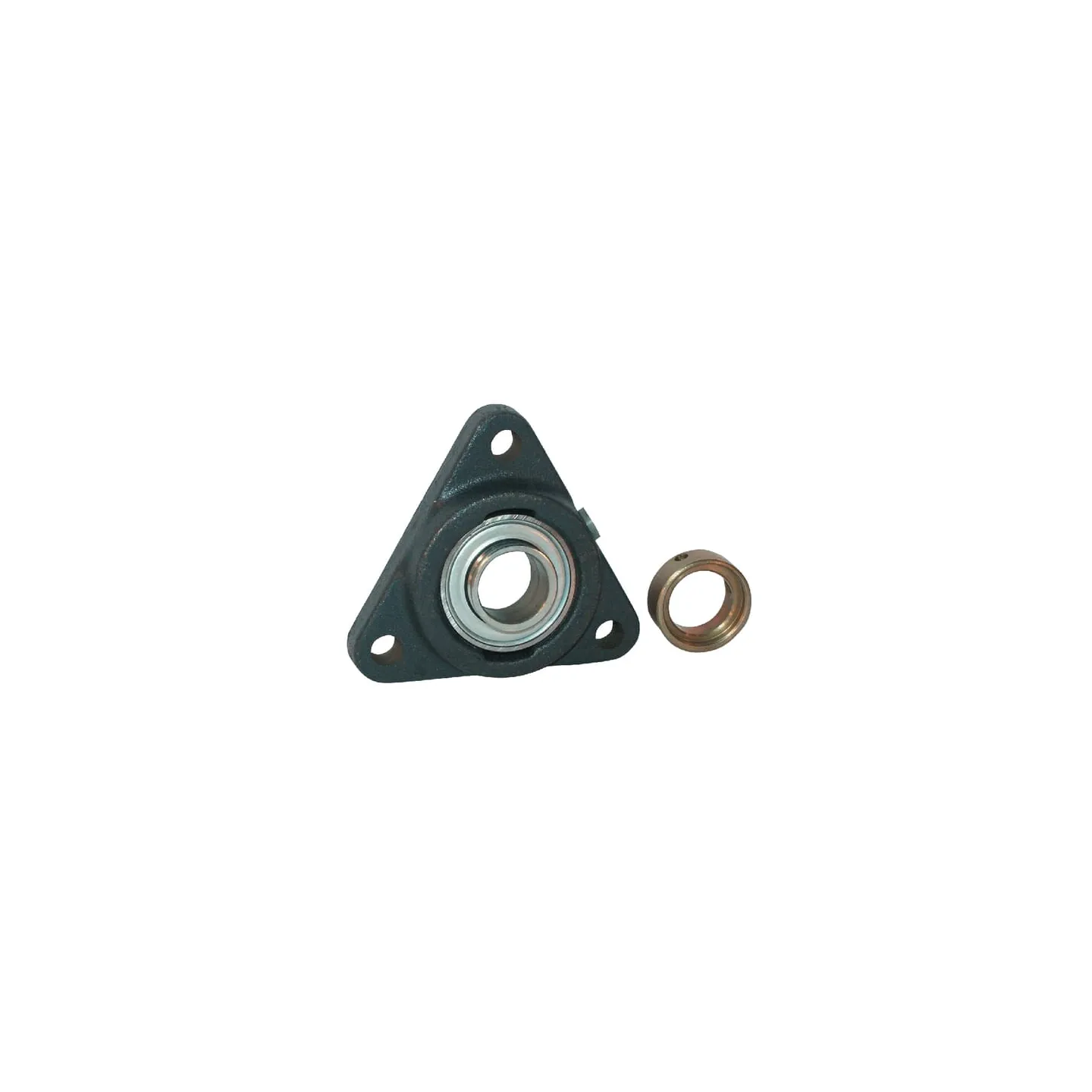

Korpuss PCFTR PCFTR20

Name: Korpuss PCFTR PCFTR20
Brand: INA/FAG
SKU: PCFTR20
Price: 55.19 EUR
Availability: BackOrder

Apmaksas iespējas

55,19 €

AR PVN

Pēc pieprasījuma

Korpuss PCFTR PCFTR20 INA/FAG

Uz pasūtījumu

ID: 64886

Apraksts

Part number	PCFTR20
EAN	4012802791051
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Triangular flange
dBearing inside diameter	20 mm
Consists of	• Bearing block Clamp ring
Total length	92 mm
AHousing width	92 mm
UTotal height	34 mm
THousing height	20 mm
L*Bearing inner ring width	31 mm
Locking ring outside diameter	33 mm
BShaft vertical distance	35 mm
PBearing balls distance to mounting surface	10.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.56 kg
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	PCFTR20
