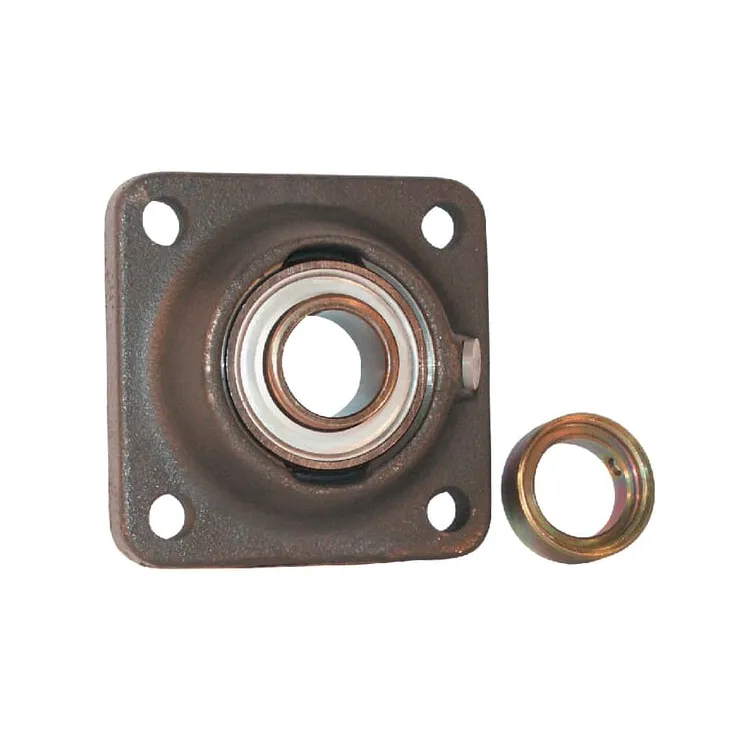

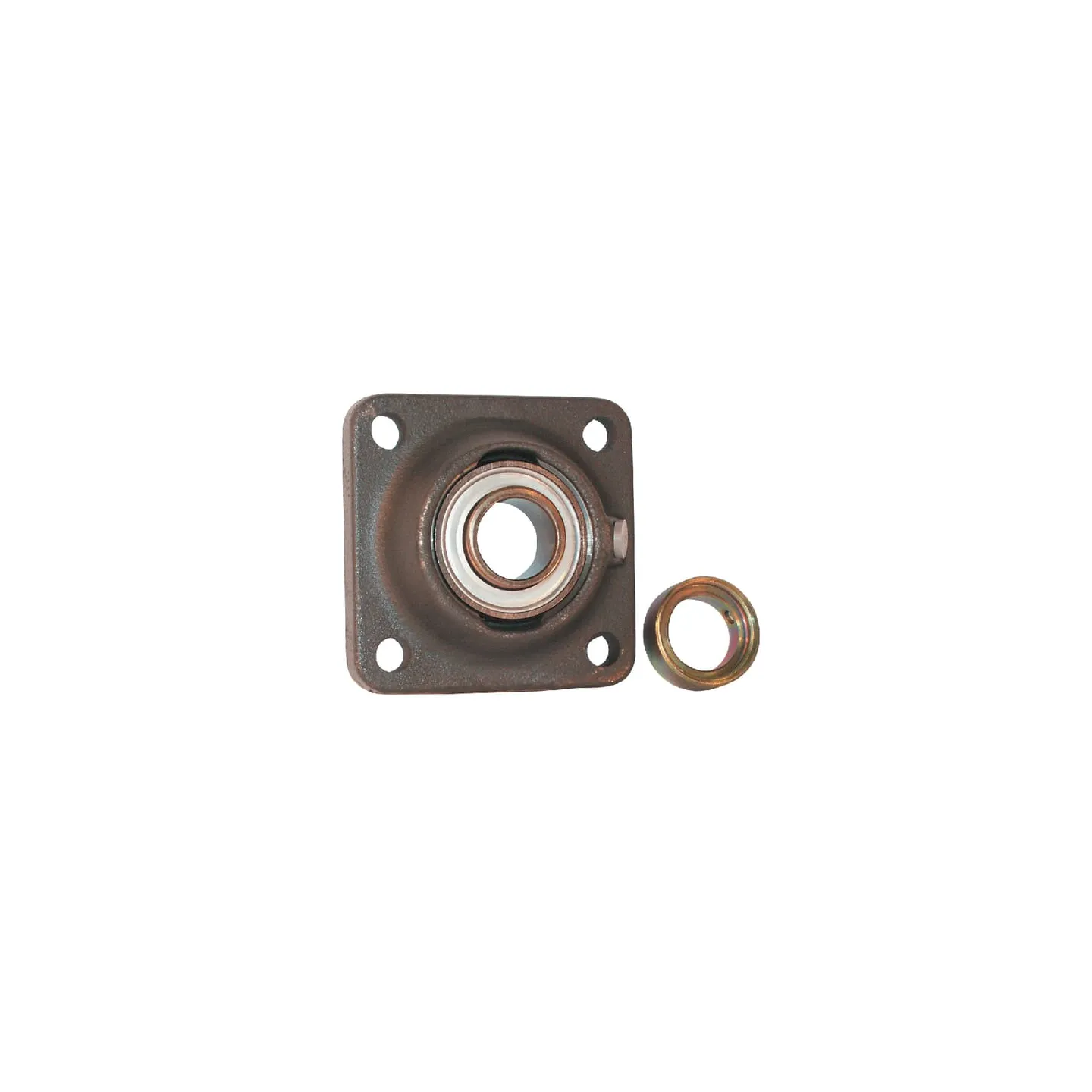

Korpuss PCJ PCJ25

Name: Korpuss PCJ PCJ25
Brand: INA/FAG
SKU: PCJ25
Price: 42.37 EUR
Availability: InStock

Apmaksas iespējas

42,37 €

AR PVN

4-5 Darba dienas

Korpuss PCJ PCJ25 INA/FAG

IR NOLIKTAVĀ

ID: 64887

Apraksts

Part number	PCJ25
EAN	4012802809473
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	25 mm
Consists of	• Bearing block Clamp ring
Total length	95 mm
Housing width	95 mm
UTotal height	42.5 mm
THousing height	29 mm
LBearing inner ring width	31 mm
CFlange thickness	14.5 mm
Bearing balls distance to locking side end	19 mm
MMounting holes distance	70 mm
Mounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.76 kg
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Original number equivalent	PCJ25-N
