Korpuss PCJT PCJT17

Name: Korpuss PCJT PCJT17
Brand: INA/FAG
SKU: PCJT17
Price: 49.39 EUR
Availability: BackOrder

Apmaksas iespējas

49,39 €

AR PVN

Pēc pieprasījuma

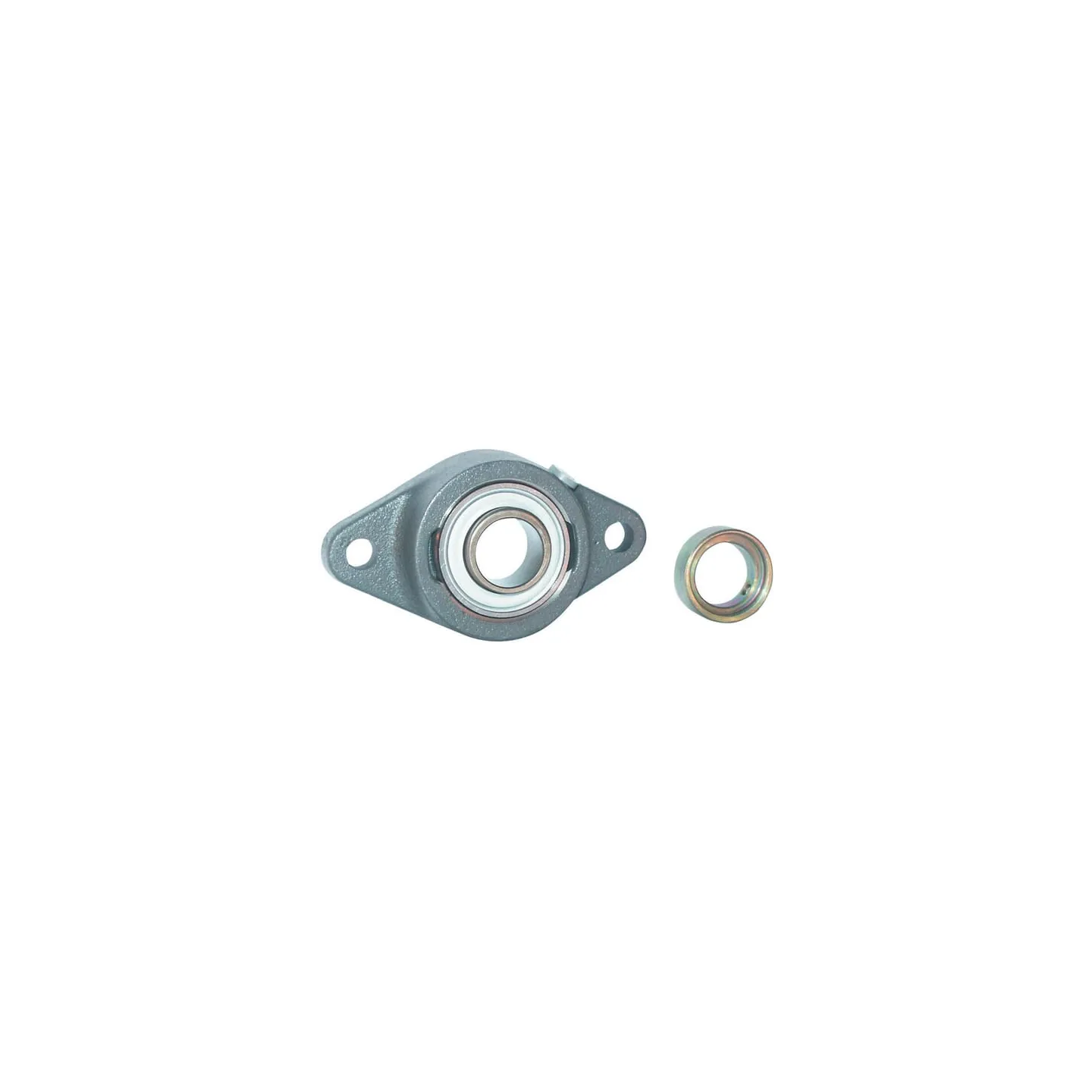

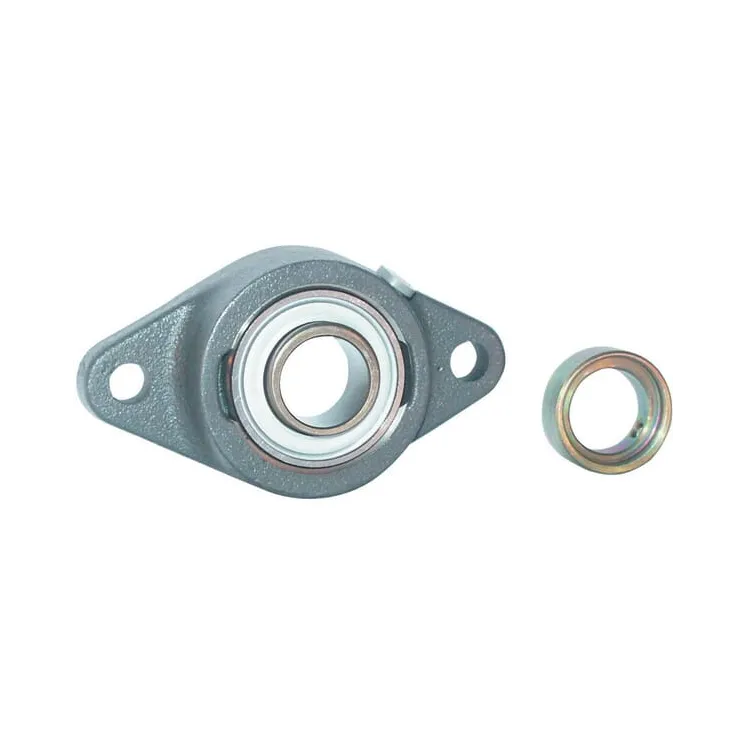

Korpuss PCJT PCJT17 INA/FAG

Uz pasūtījumu

ID: 64888

Apraksts

Part number	PCJT17
EAN	4012802798036
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	17 mm
Consists of	Bearing block Clamp ring
Total length	57 mm
UHousing width	99 mm
UTotal height	39.1 mm
THousing height	25 mm
L*Bearing inner ring width	28.6 mm
Locking ring outside diameter	28 mm
Bearing balls distance to locking side end	17 mm
MMounting holes distance	76.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.36 kg
Basic radial load static	4750 N
Basic radial load dynamic	9800 N
Original number equivalent	PCJT17
