Korpuss PCFT17XL

Name: Korpuss PCFT17XL
Brand: INA/FAG
SKU: PCFT17XL
Price: 36.64 EUR
Availability: InStock

Apmaksas iespējas

36,64 €

AR PVN

4-5 Darba dienas

Korpuss PCFT17XL INA/FAG

IR NOLIKTAVĀ

ID: 64894

Apraksts

Part number	PCFT17XL
EAN	4012802791716
Unit	Each

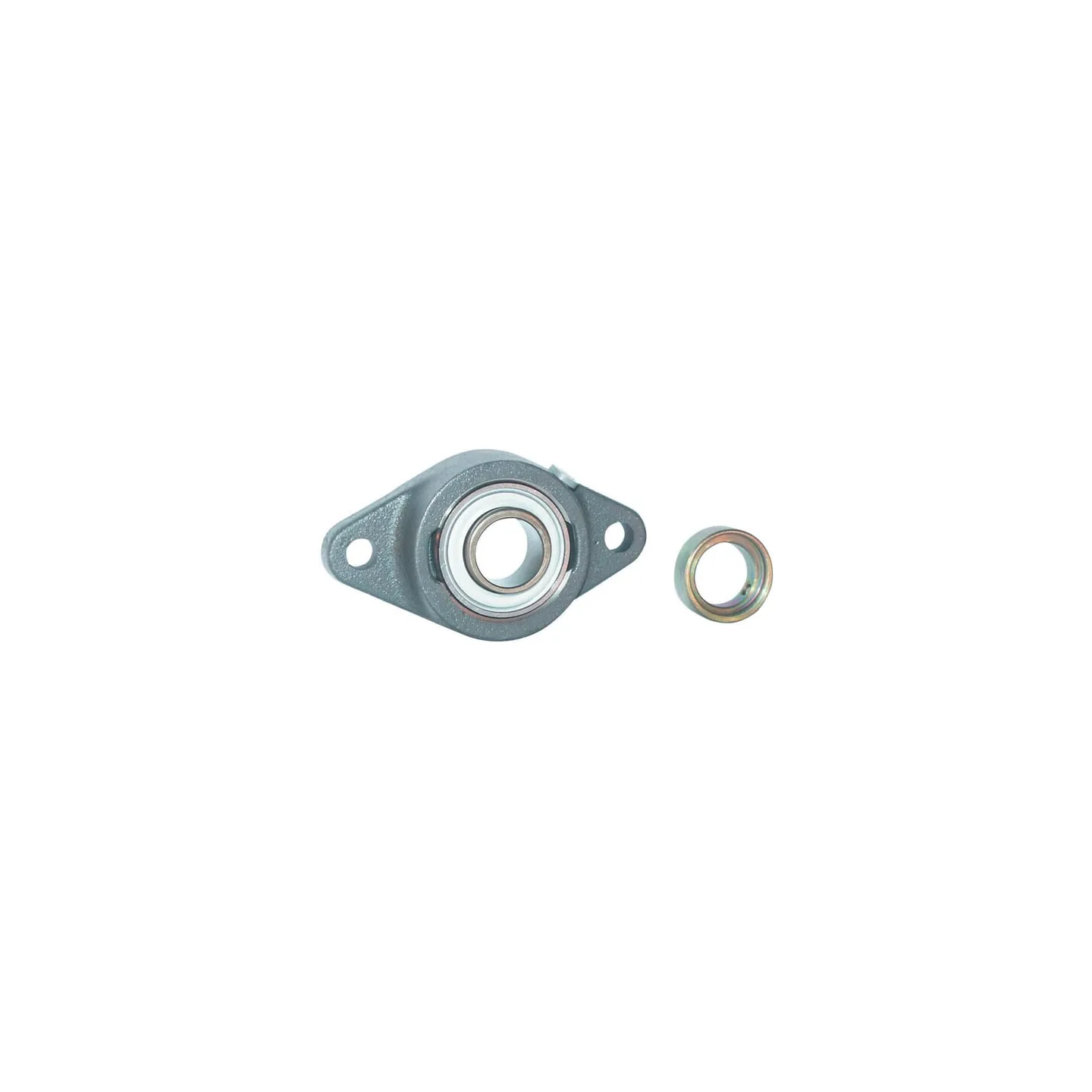

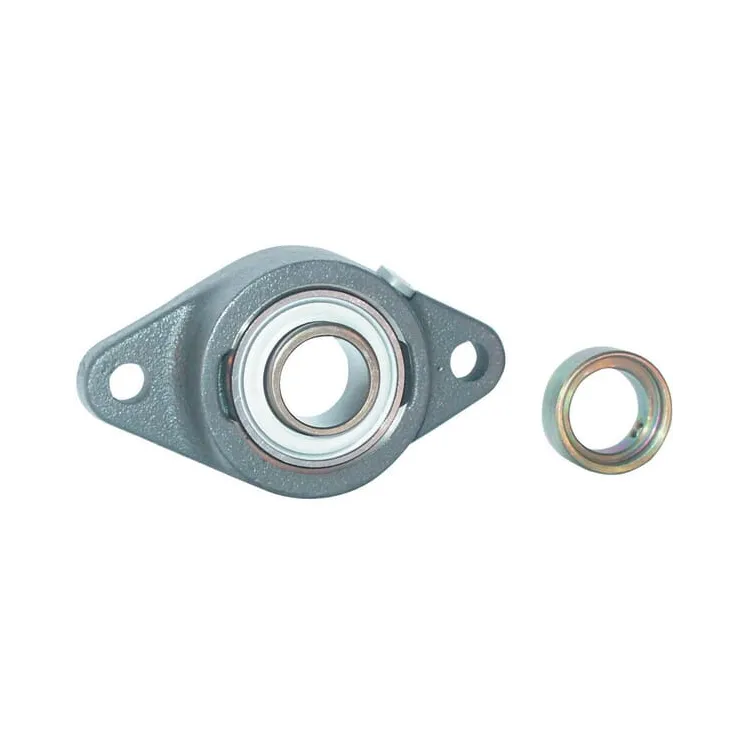

Long description	This oval flange bearing block with integrated radial insert bearing is pre-assembled and ready to use. The radial bearing with eccentric locking collar and housing are matched. The flange housing consists of one piece and is resistant to radial and axial loads.
Details	Short design
Pros	Small installation space self-aligning
Product details	Inner bearing has a one-sided extended inner ring with tightening washer Regreasable
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Low space requirement
Includes	Bearing block Tightening washer
Housing type	Oval flange
dBearing inside diameter	17 mm
Consists of	• Bearing block Clamp ring
Total length	57 mm
Housing width	99 mm
UTotal height	32.1 mm
ATotal width	32.1 mm
Grease nipple thread diameter	M6
Weight	0.33 kg
Basic radial load static	4750 N
Basic radial load dynamic	9800 N
Original number equivalent	PCFT17-XL
