Korpuss PCSLT PCSLT30

Name: Korpuss PCSLT PCSLT30
Brand: INA/FAG
SKU: PCSLT30
Price: 43.57 EUR
Availability: BackOrder

Apmaksas iespējas

43,57 €

AR PVN

Pēc pieprasījuma

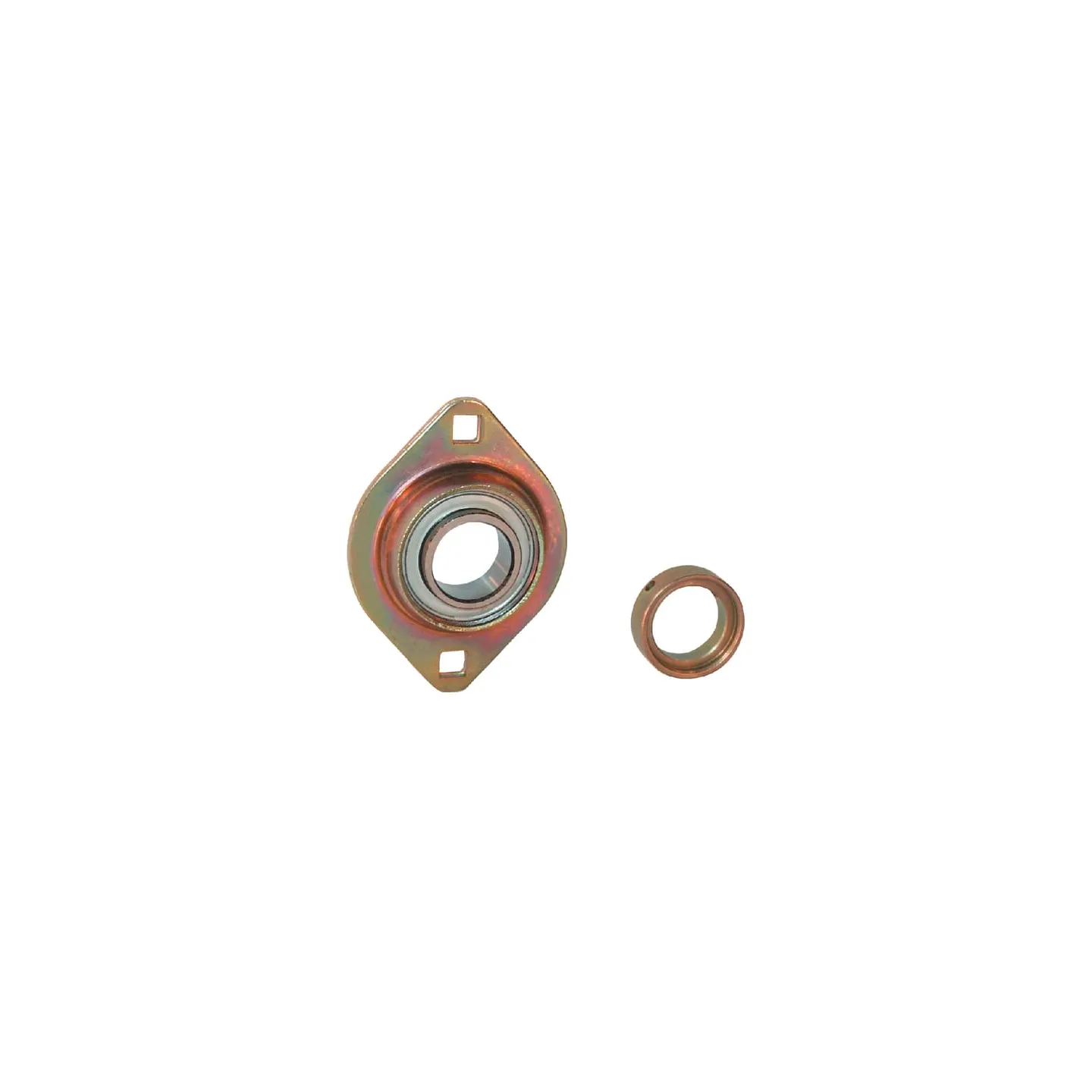

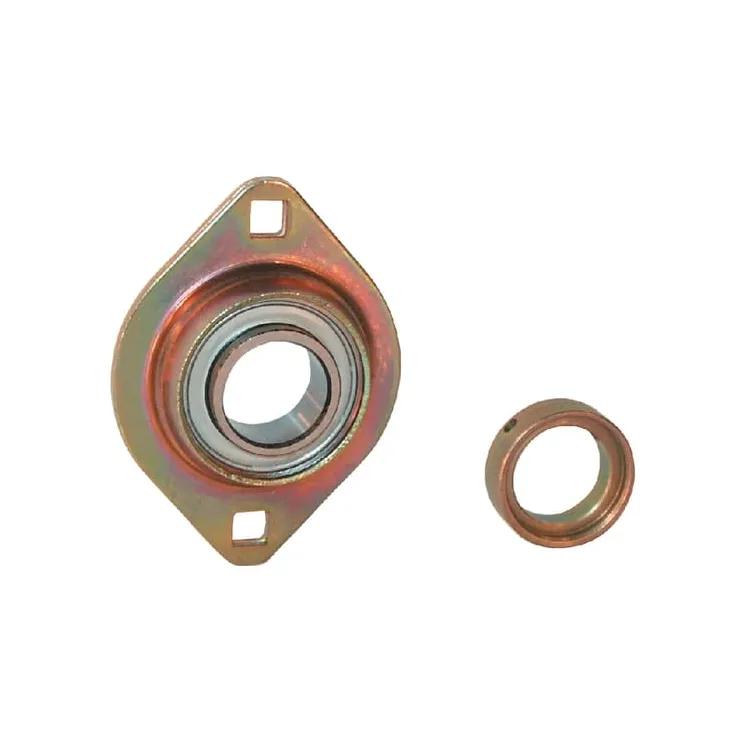

Korpuss PCSLT PCSLT30 INA/FAG

Uz pasūtījumu

ID: 64895

Apraksts

Part number	PCSLT30
EAN	4012802819960
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Housing type	Oval flange
dBearing inside diameter	30 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
BTotal length	84 mm
UHousing width	112.5 mm
UTotal height	29 mm
THousing height	16 mm
L*Bearing inner ring width	26.5 mm
Bearing balls distance to locking side end	9 mm
Mounting holes distance	90.5 mm
KMounting holes length	11.5 mm
Grease nipple thread diameter	M6
Weight	0.32 kg
Basic radial load static	8300 N
Basic radial load dynamic	13200 N
Original number equivalent	PCSLT30
