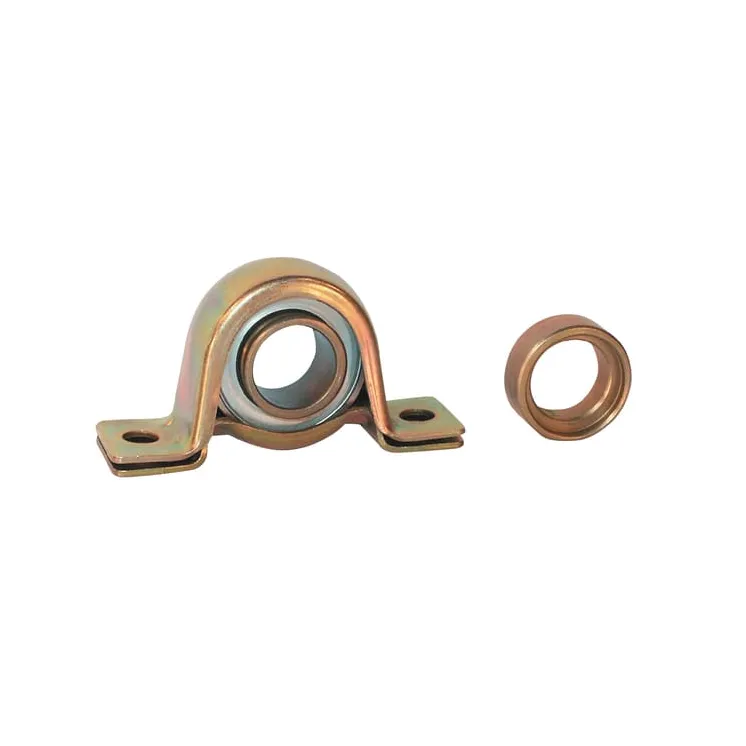

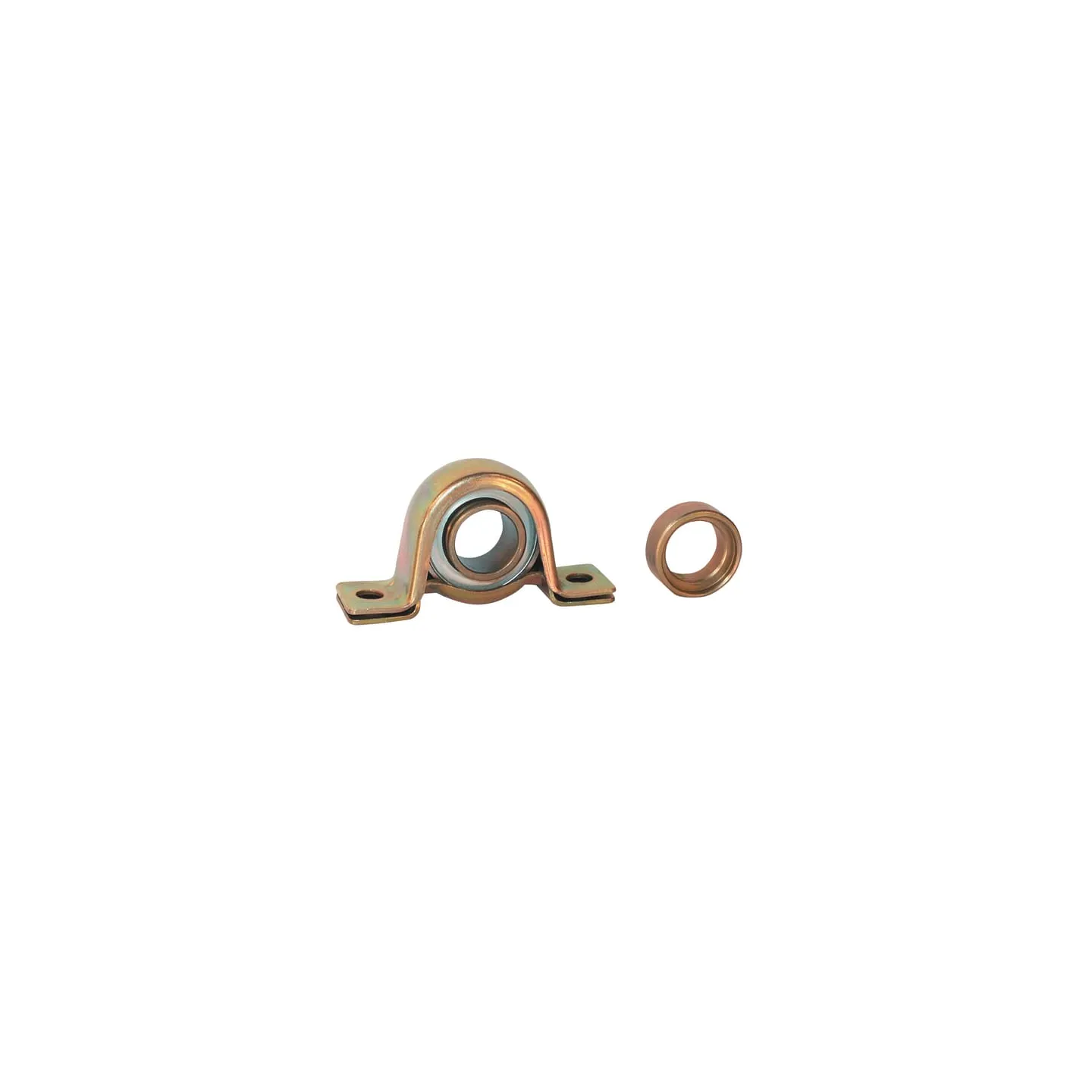

Dzīvojamā vienība PB PB25

Name: Dzīvojamā vienība PB PB25
Brand: INA/FAG
SKU: PB25
Price: 41.07 EUR
Availability: InStock

Apmaksas iespējas

41,07 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība PB PB25 INA/FAG

IR NOLIKTAVĀ

ID: 64897

Apraksts

Part number	PB25
EAN	4012802792881
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Housing type	Pillow block
dBearing inside diameter	25 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
WTotal length	108 mm
BHousing width	31.8 mm
HTotal height	56.5 mm
L*Bearing inner ring width	31 mm
AShaft vertical distance	28.6 mm
OBearing balls distance to mounting surface	23.5 mm
Mounting holes distance	86 mm
ØKMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.32 kg
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
Original number equivalent	PB25
