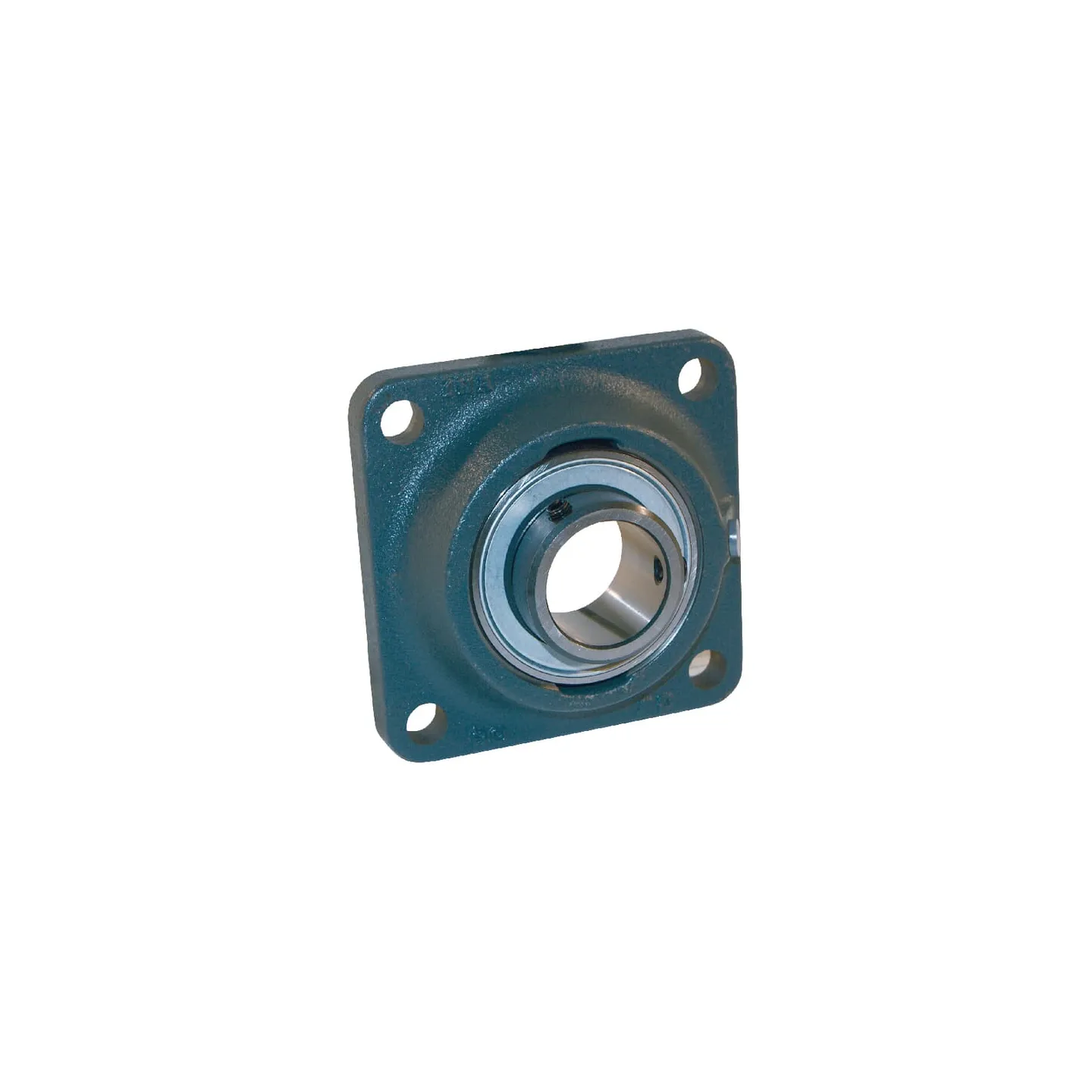

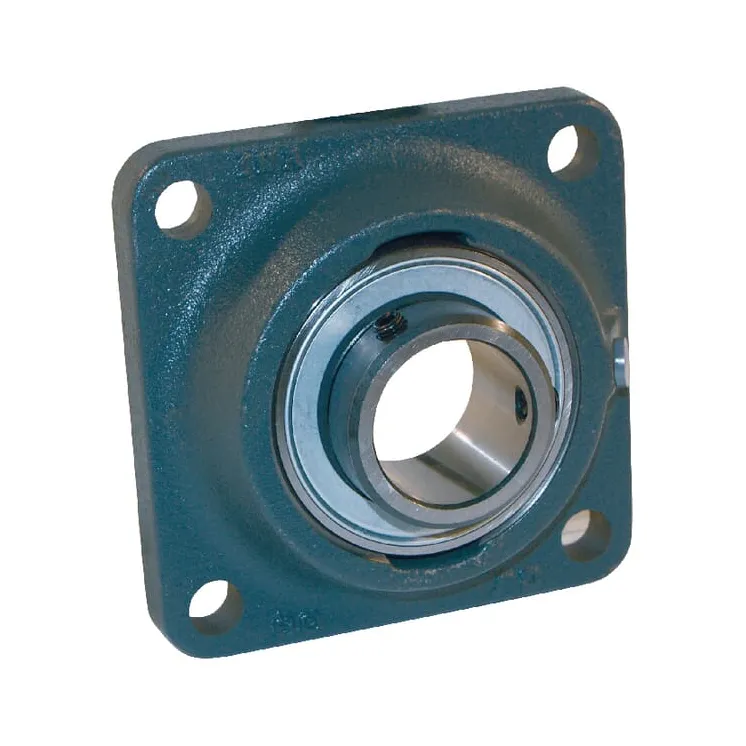

Korpuss PCJY PCJY30

Name: Korpuss PCJY PCJY30
Brand: INA/FAG
SKU: PCJY30
Price: 51.35 EUR
Availability: InStock

Apmaksas iespējas

51,35 €

AR PVN

4-5 Darba dienas

Korpuss PCJY PCJY30 INA/FAG

IR NOLIKTAVĀ

ID: 64900

Apraksts

Part number	PCJY30
EAN	4012802807011
Unit	Each
Properties	• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	30 mm
ATotal length	108 mm
Housing width	108 mm
UTotal height	41 mm
Total width	30 mm
THousing height	29 mm
LBearing inner ring width	30 mm
CFlange thickness	13 mm
Bearing balls distance to locking side end	20 mm
Mounting holes distance	82.5 mm
Grease nipple thread diameter	M6
Weight	1.04 kg
Basic radial load static	11300 N
Basic radial load dynamic	20700 N
Original number equivalent	PCJY30-N
