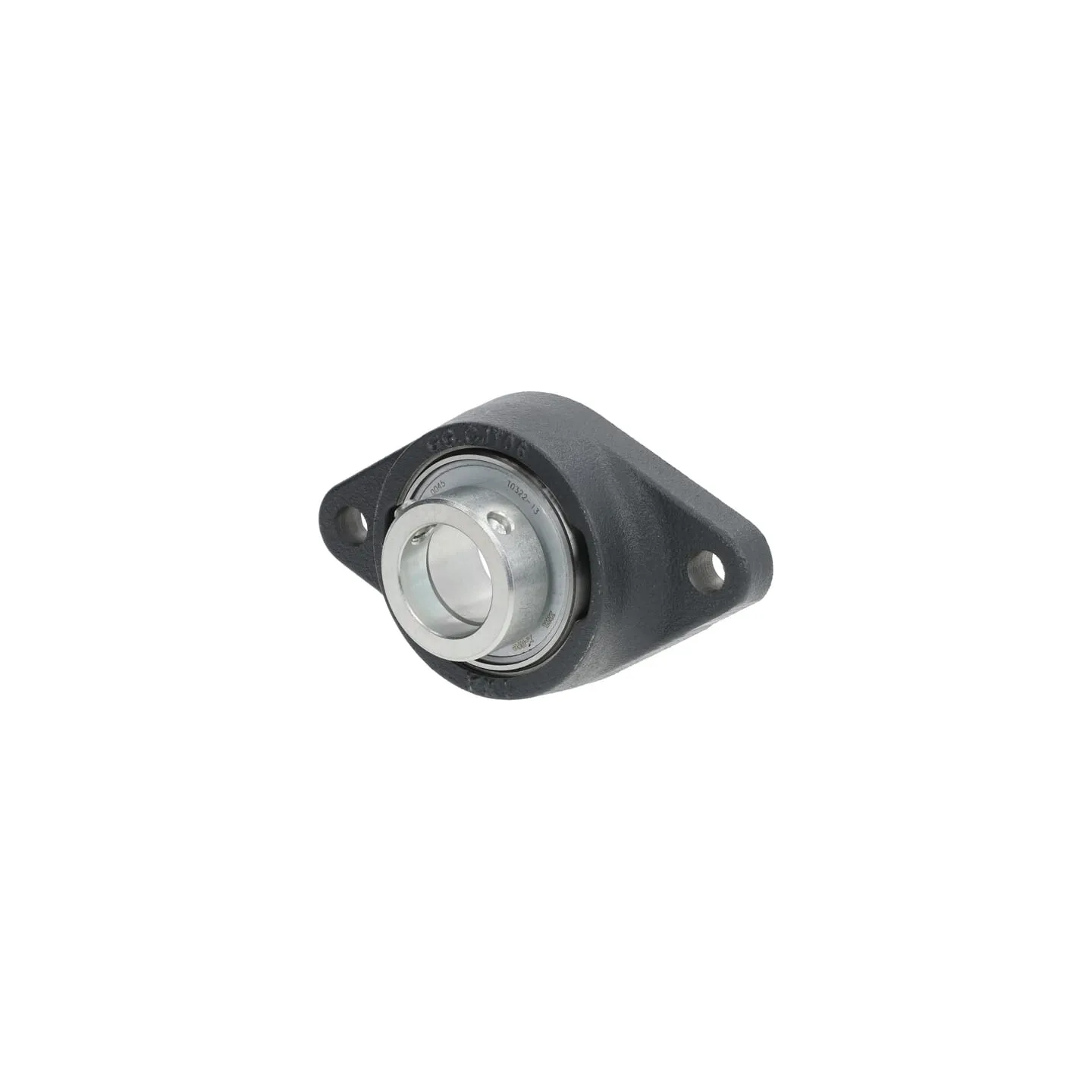

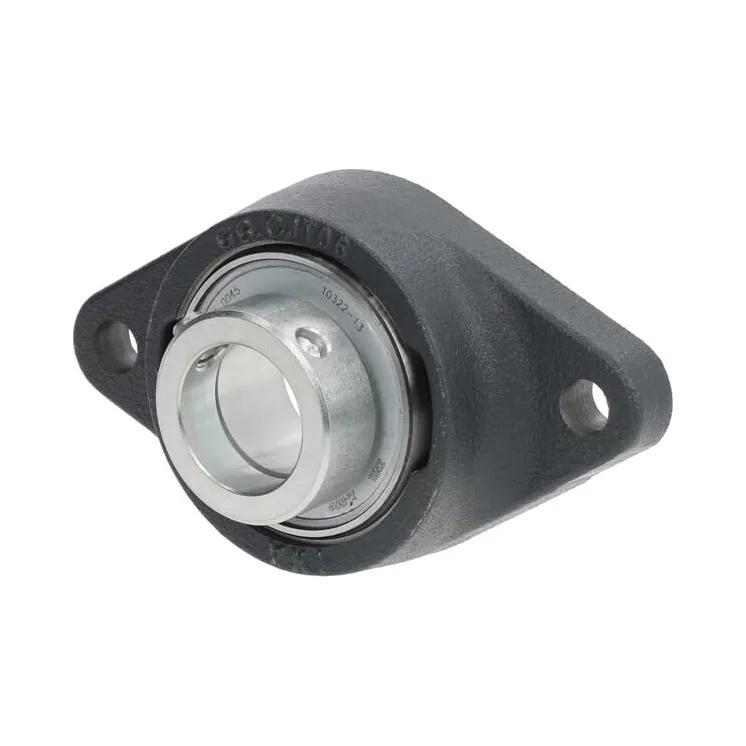

Korpuss PCJT PCJT30 SALF206TR

Name: Korpuss PCJT PCJT30 SALF206TR
Brand: INA/FAG
SKU: PCJT30
Price: 44.06 EUR
Availability: InStock

Apmaksas iespējas

44,06 €

AR PVN

4-5 Darba dienas

Korpuss PCJT PCJT30 INA/FAG SALF206TR

IR NOLIKTAVĀ

ID: 64907

Apraksts

Part number	PCJT30
EAN	4012802837360
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	30 mm
Consists of	Bearing block Clamp ring
Total length	80 mm
UHousing width	142 mm
UTotal height	46.8 mm
THousing height	29 mm
L*Bearing inner ring width	35.7 mm
Locking ring outside diameter	44 mm
Bearing balls distance to locking side end	20 mm
MMounting holes distance	116.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.83 kg
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	PCJT30-N
