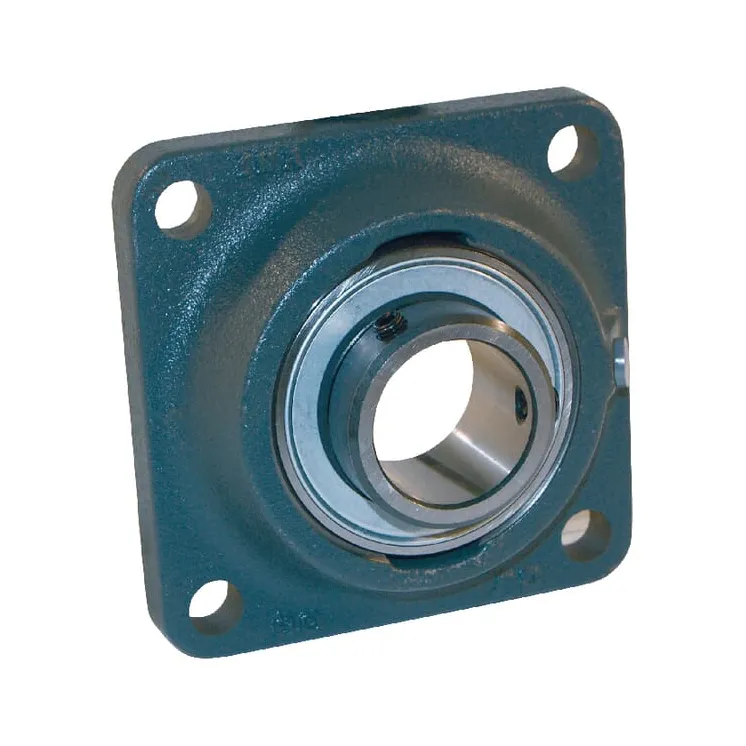

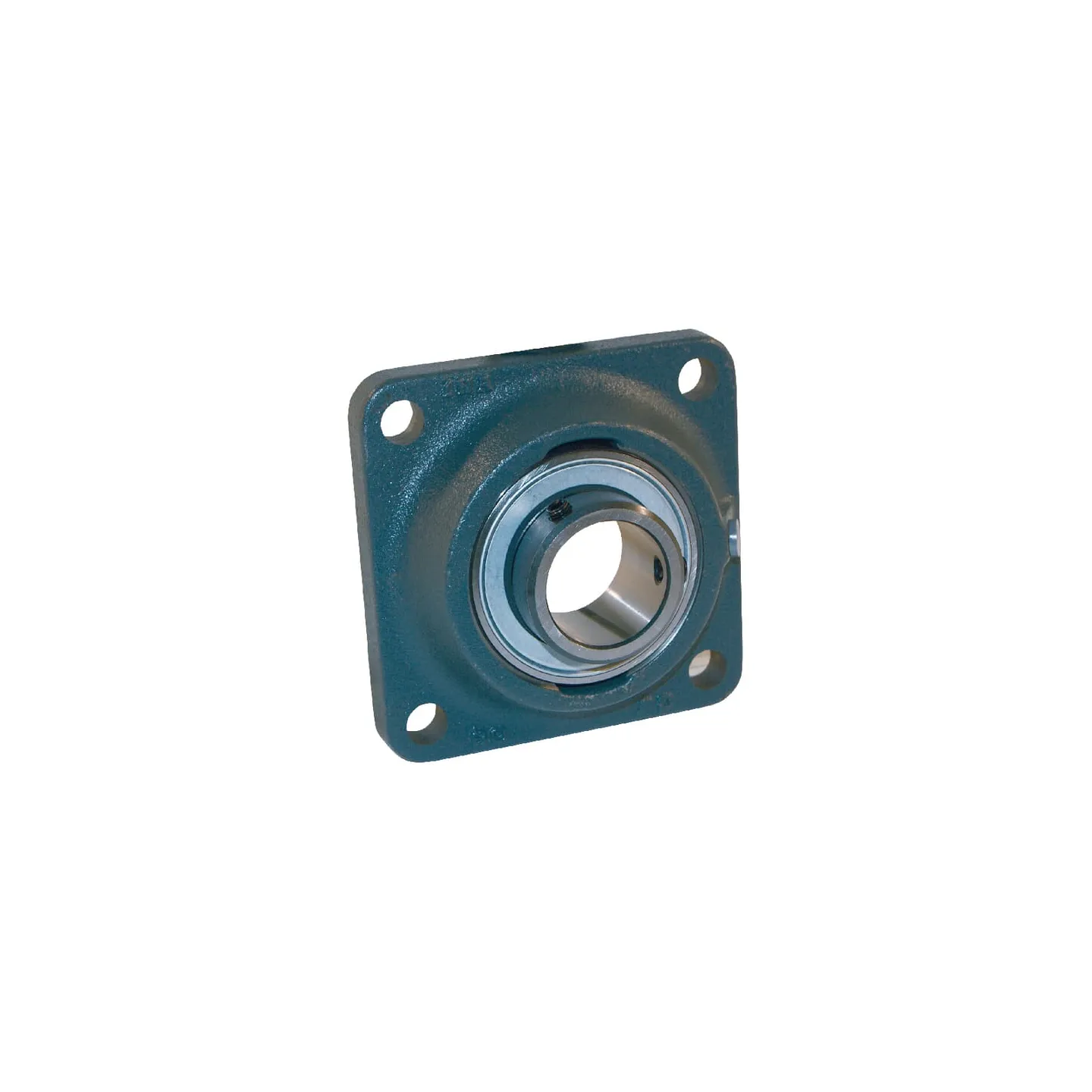

Korpuss PCJY PCJY25

Name: Korpuss PCJY PCJY25
Brand: INA/FAG
SKU: PCJY25
Price: 41.6 EUR
Availability: InStock

Apmaksas iespējas

41,60 €

AR PVN

4-5 Darba dienas

Korpuss PCJY PCJY25 INA/FAG

IR NOLIKTAVĀ

ID: 64912

Apraksts

Part number	PCJY25
EAN	4012802823868
Unit	Each
Properties	• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	25 mm
ATotal length	95 mm
Housing width	95 mm
UTotal height	38.5 mm
Total width	27 mm
THousing height	29 mm
LBearing inner ring width	27 mm
CFlange thickness	10 mm
Bearing balls distance to locking side end	19 mm
Mounting holes distance	70 mm
Grease nipple thread diameter	M6
Weight	0.73 kg
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
Original number equivalent	PCJY25-N
