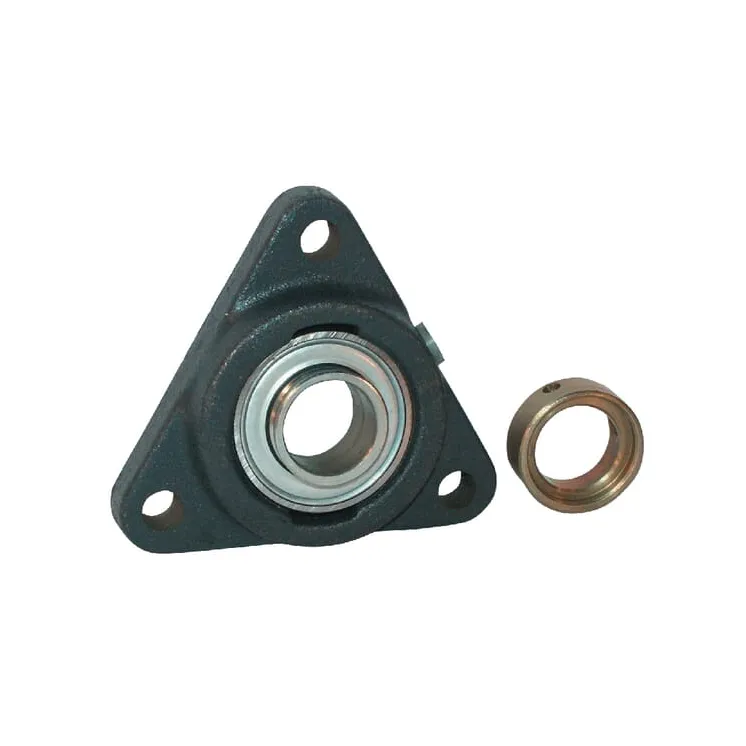

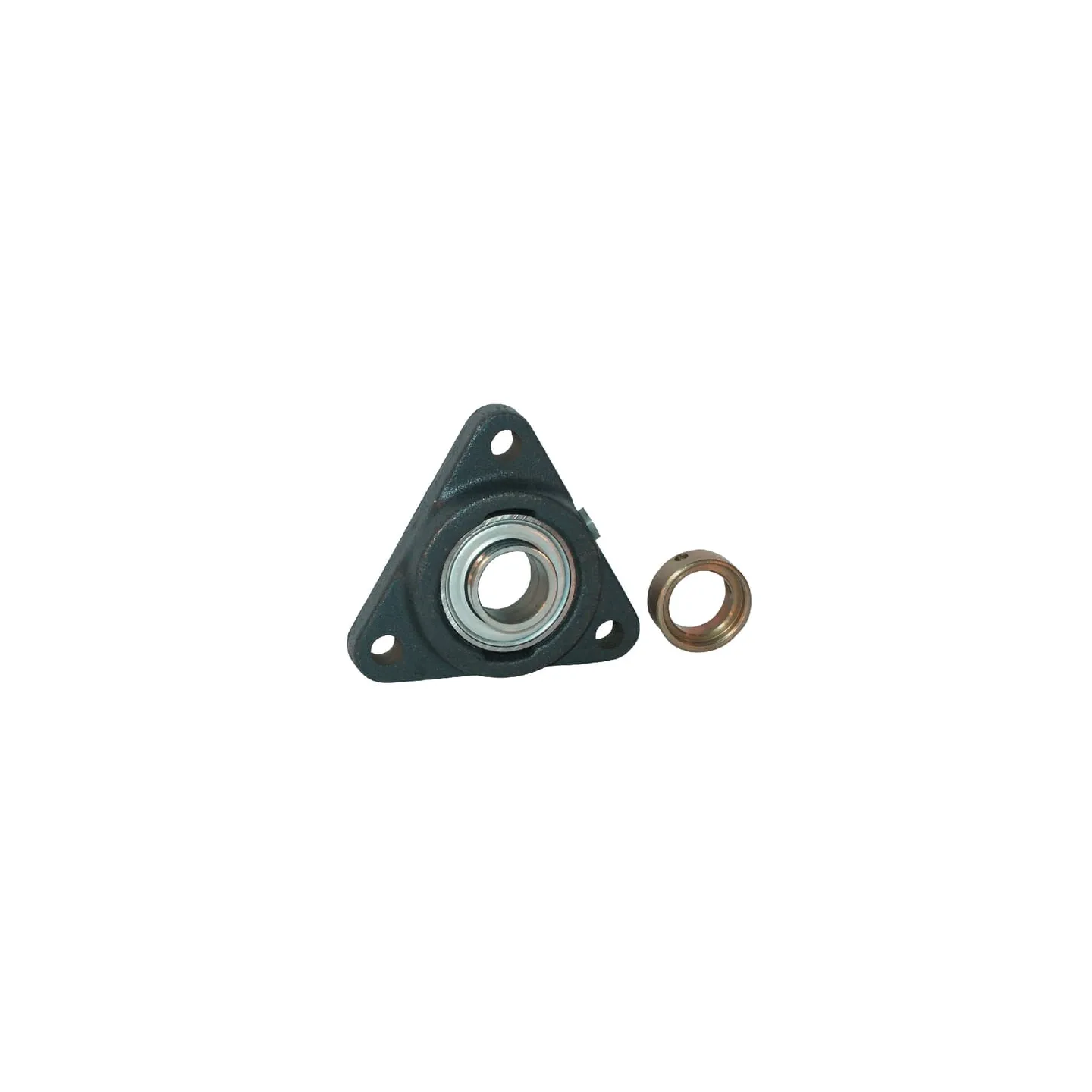

Korpuss PCFTR PCFTR25

Name: Korpuss PCFTR PCFTR25
Brand: INA/FAG
SKU: PCFTR25
Price: 57.48 EUR
Availability: InStock

Apmaksas iespējas

57,48 €

AR PVN

4-5 Darba dienas

Korpuss PCFTR PCFTR25 INA/FAG

IR NOLIKTAVĀ

ID: 64915

Apraksts

Part number	PCFTR25
EAN	4012802791037
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Triangular flange
dBearing inside diameter	25 mm
Consists of	• Bearing block Clamp ring
Total length	97 mm
AHousing width	97 mm
UTotal height	36 mm
THousing height	22 mm
L*Bearing inner ring width	31 mm
BShaft vertical distance	36 mm
PBearing balls distance to mounting surface	12.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.61 kg
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Original number equivalent	PCFTR25
